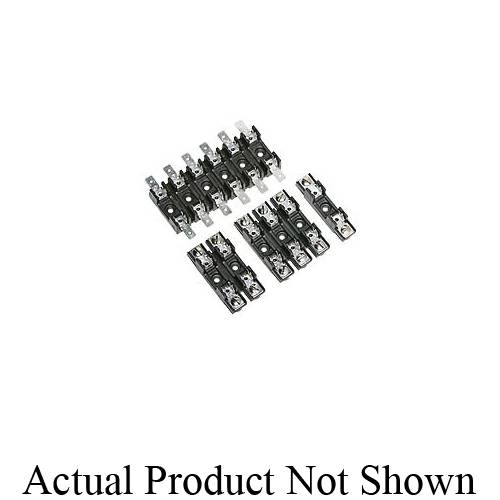

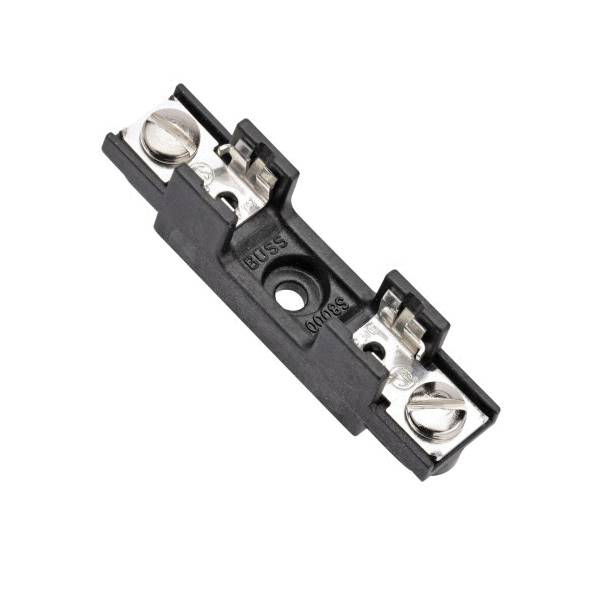

EATON S-8202-1-R Non-Indicating Fuse Block, 300 VAC/VDC, 16/20 A, 1 Poles

Short Description

300 VAC/VDC, 30/16 A, 1-Pole, 1/4" Quick Connect, Thermoplastic, Bolt-In, Standard, Fuse Block

EATON Fuse Block, Non-Indicating, Series: S-8, 300 VAC/VDC, 16/20 A, 1 Pole, 1/4 in Quick-Connect Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, For Use With: 1/4 x 1-1/4 in Fuses, Thermoplastic, 2 in L x 0.5 in W x 0.56 in H Dimensions

MFG #: S-8202-1-R

EECO #: BUS82021R

Brand: Eaton
UPC #: 051712548939
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121624
Approval
UL, CSA, CE
Material
Thermoplastic
Mounting Type
Bolted-In
Terminal Type
1/4 Inch Quick-Connect
Current Rating
30 Amp (UL), 16 Amp (CSA)
Voltage Rating
300
Connection Type
1/4 in Quick-Connect
Number Of Poles
1
Mounting
Bolt-In
Temperature Rating
130
Type
Non-Indicating
Series
S-8
Clip Type
Bright Tin Plated Spring Bronze
Fuse Size
1/4 Inch x 1-1/4 Inch
Fuse Type
Miniature
Dimensions
2 in L x 0.5 in W x 0.56 in H
Base Material
Thermoplastic
Amperage Rating
16/20
Suitable For Use With
1/4 x 1-1/4 in Fuses
Features
  • Tight cluster mounting
  • All types of terminal configurations
  • Clips made of bright tin plated spring bronze
  • Anti-rotational pin provided
  • Flame retardant thermoplastic construction
COBUSSE02627_9_55
COBUSSE02689_1_2
Bussmann_BK_S_8202_1_R_Catalog
Bussmann_BK_S_8202_1_R_Specification_Sheet
Bussmann_S_8001_1_Specification_Sheet
Edison_S_8202_1_Brochure
Qty Unit price
Ea
1 $1.84

Slqt
1 $1.84

Stpk
1 $18.40

Unit
1 $1.84
