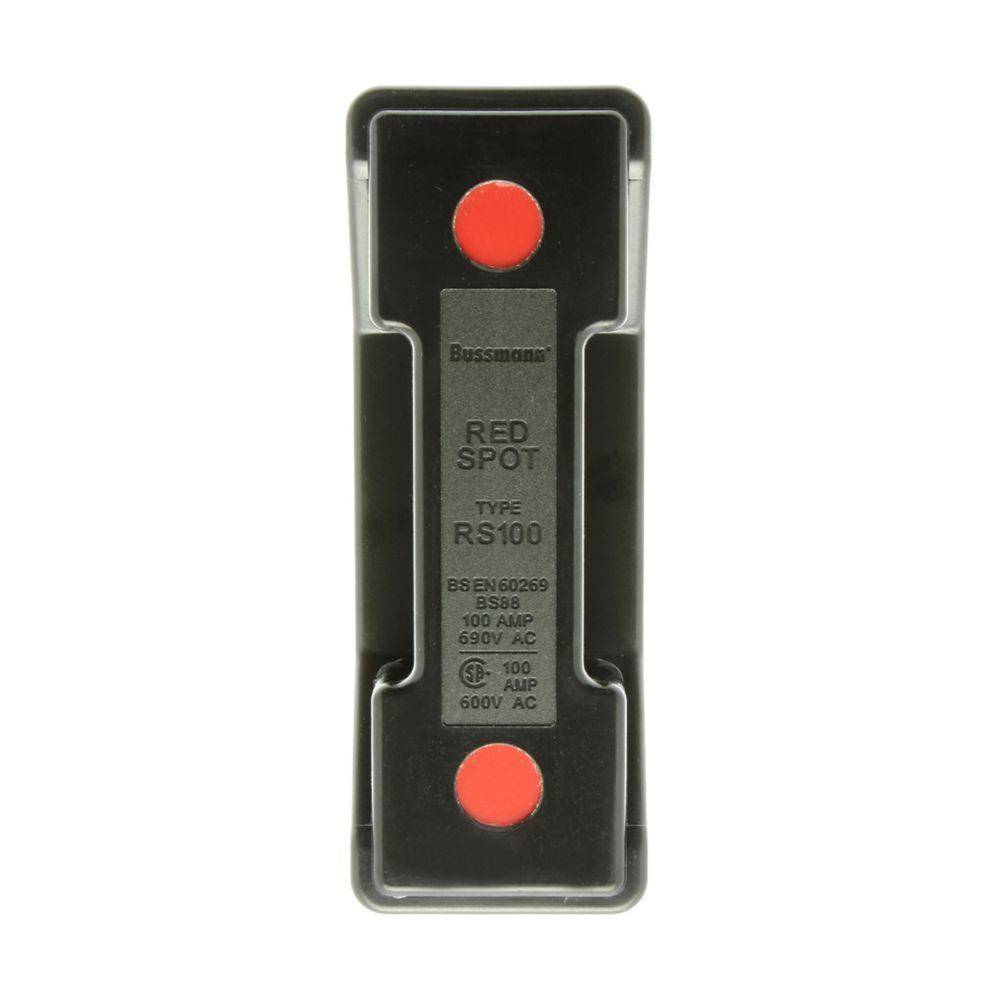

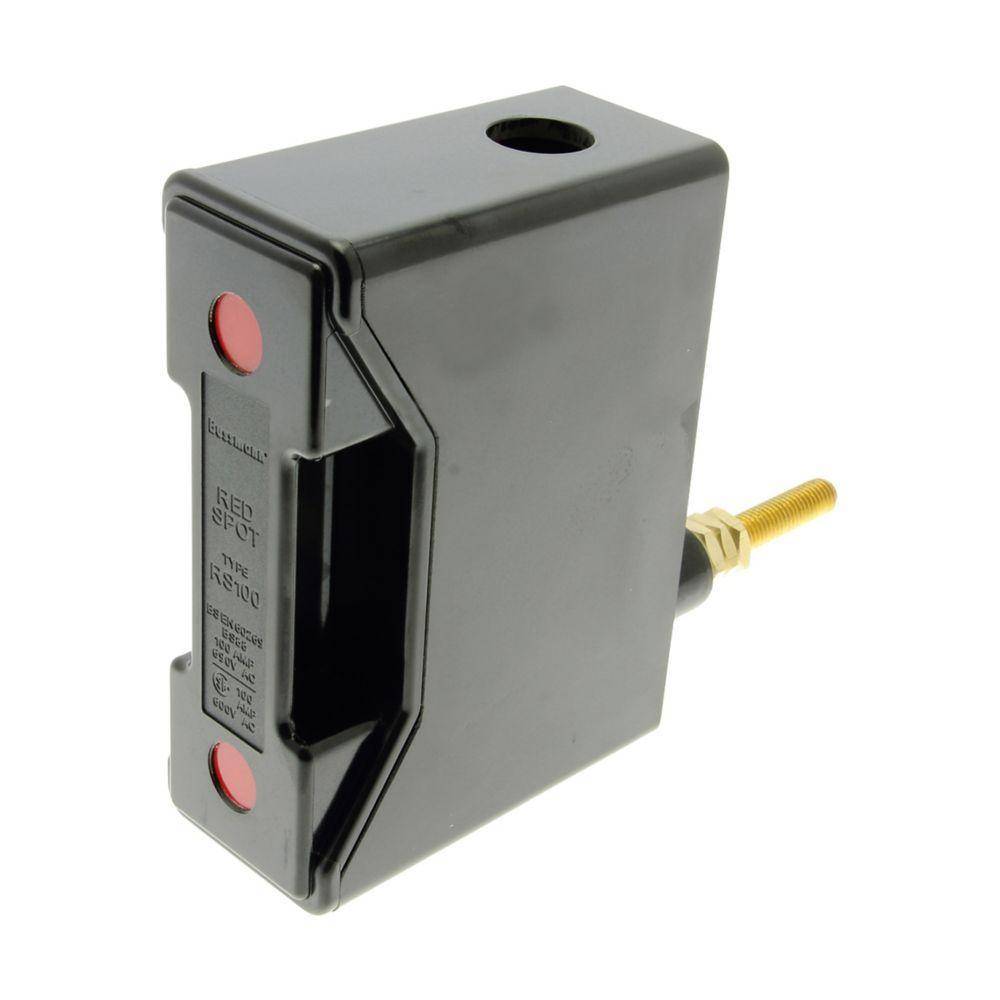

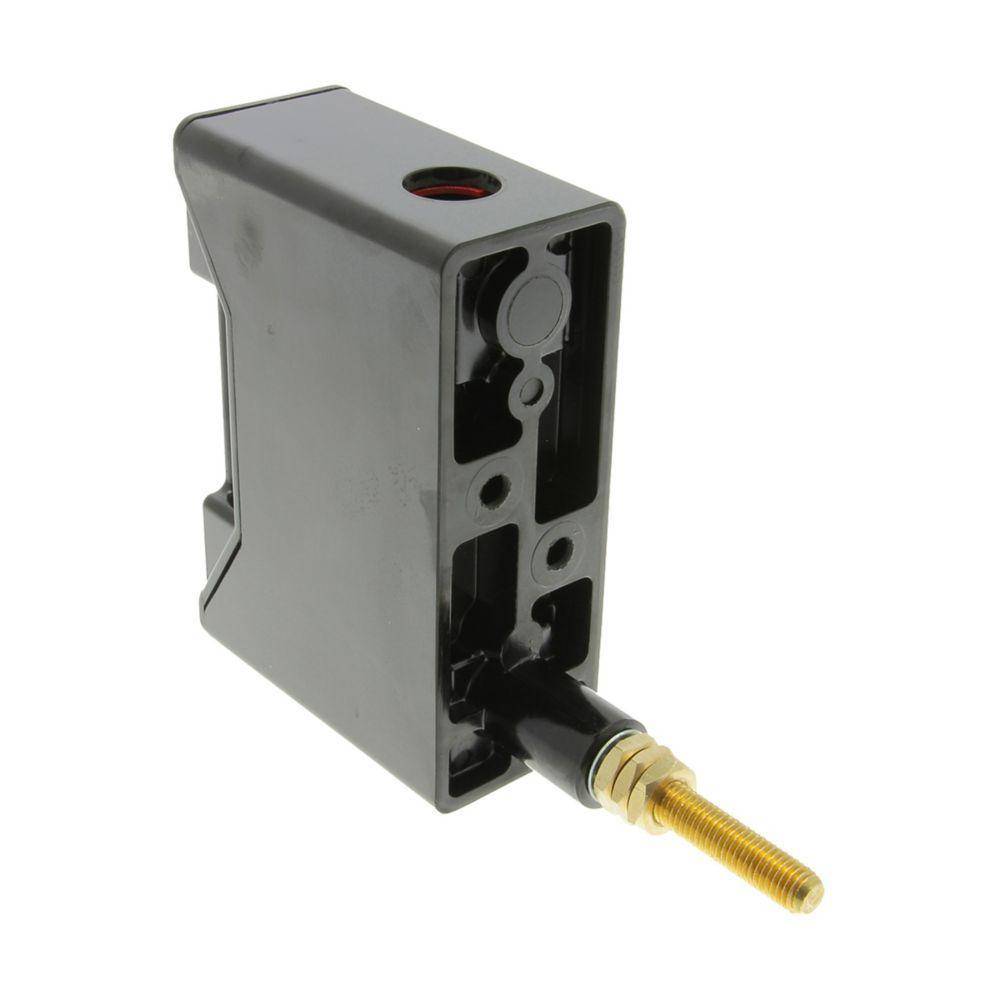

Bussmann RS100PH Special Purpose British Style Low Voltage Front/Back Stud Connected Fuse Block, 690 V, 100 A

Short Description

Eaton's Bussmann series British standard BS88 fuse holders offer an extremely robust and reliable circuit protection solutions for your industrial applications. Full range of rated current and voltage available as well as connection types.

Bussmann Fuse Block, Special Purpose British Style Low Voltage Front/Back Stud Connected, 690 V, 100 A, 1.102 in L x 8.425 in W x 5.866 in H
MFG #: RS100PH

EECO #: BURS100PH

Brand: Bussmann
UPC #: 051712418706
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121606
Wire Size
4 to 3/0
Application
Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Stationary Machine Equipment in Factory - Robotics
Voltage Rating
690
Connection Type
Front/Back Stud
Temperature Rating
40
Type
Special Purpose British Style Low Voltage Front/Back Stud Connected
Series
RS Series
Warranty
1 year limited
Dimensions
1.102 in L x 8.425 in W x 5.866 in H
Amperage Rating
100
Suitable For Use With
80 to 100 A CIL14, L14C, 70 to 100 A CGL, Type HRC BS88 Industrial Fuse
Features
  • Finger safe fuse holders enhance electrical safety
  • Industry standard fuse holder for protecting utility and industrial installations
  • Large, proven contact system and anti-vibration feature helps ensure perfect carrier contact alignment and superior electrical contact
  • Conductor insulating sleeves help prevent inadvertent contact at the entry point while fully shrouded terminals deliver IP20 protection
  • Molded parts made from flame retardant, non-hygroscopic, high dielectric strength phenolic material
