Eaton

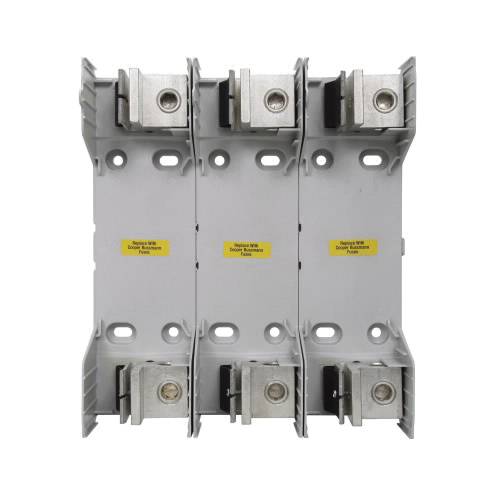

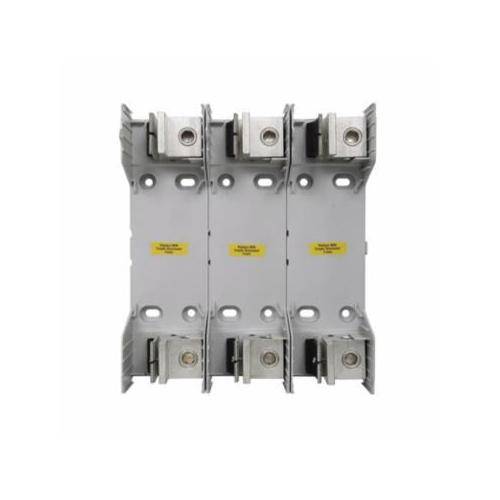

Bussmann RM60400-3CR RM600 Modular Knife Blade Fuse Block, 600 VAC, 225 to 400 A, Class: R, 4 AWG to 600 kcmil Wire, 3 Poles

Short Description

Class R modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class R fuse amp range. All blocks are available as snap together single-pole versions for tool less assembly of multiple poles at point of use, or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Bussmann Fuse Block, Modular Knife Blade, Series: RM600, 600 VAC, 225 to 400 A, 3 Pole, Class: R, Fuse Holder Code: T, Knife Blade End, 4 AWG to 600 kcmil Wire, Panel Mount, 11.63 in Fuse Length, 2.59/2.38 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPS-RK-SP and LPS-RK-SPI, Fusetron™ FRS-R, Limitron™ KTS-R, KWS-R and PVS-R Fuse, Thermoplastic, 13.2 in L x 10.9 in W x 4.8 in H
MFG #: RM60400-3CR

EECO #: BURM604003CR

Brand: Bussmann
UPC #: 051712387026
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Material
Thermoplastic
Wire Size
4 AWG to 600 kcmil
Application
Electrical Assemblies, Panels, OEMs, Critical Power, Factory Automation, Renewable Energy, HVAC, Building/Elevator Controls, Building Entrance and Process Industries
Mounting Type
Panel
Voltage Rating
600
Connection Type
Knife Blade End
Temperature Rating
-40 to 120
Type
Modular Knife Blade
Series
RM600
Dimensions
13.2 in L x 10.9 in W x 4.8 in H
Amperage Rating
225 to 400
Suitable For Use With
Low-Peak™ LPS-RK-SP and LPS-RK-SPI, Fusetron™ FRS-R, Limitron™ KTS-R, KWS-R and PVS-R Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard ph barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • 2.59 in Dia for Fusetron® and Limitron®, 2.38 in Dia for Low-Peak® fuses
