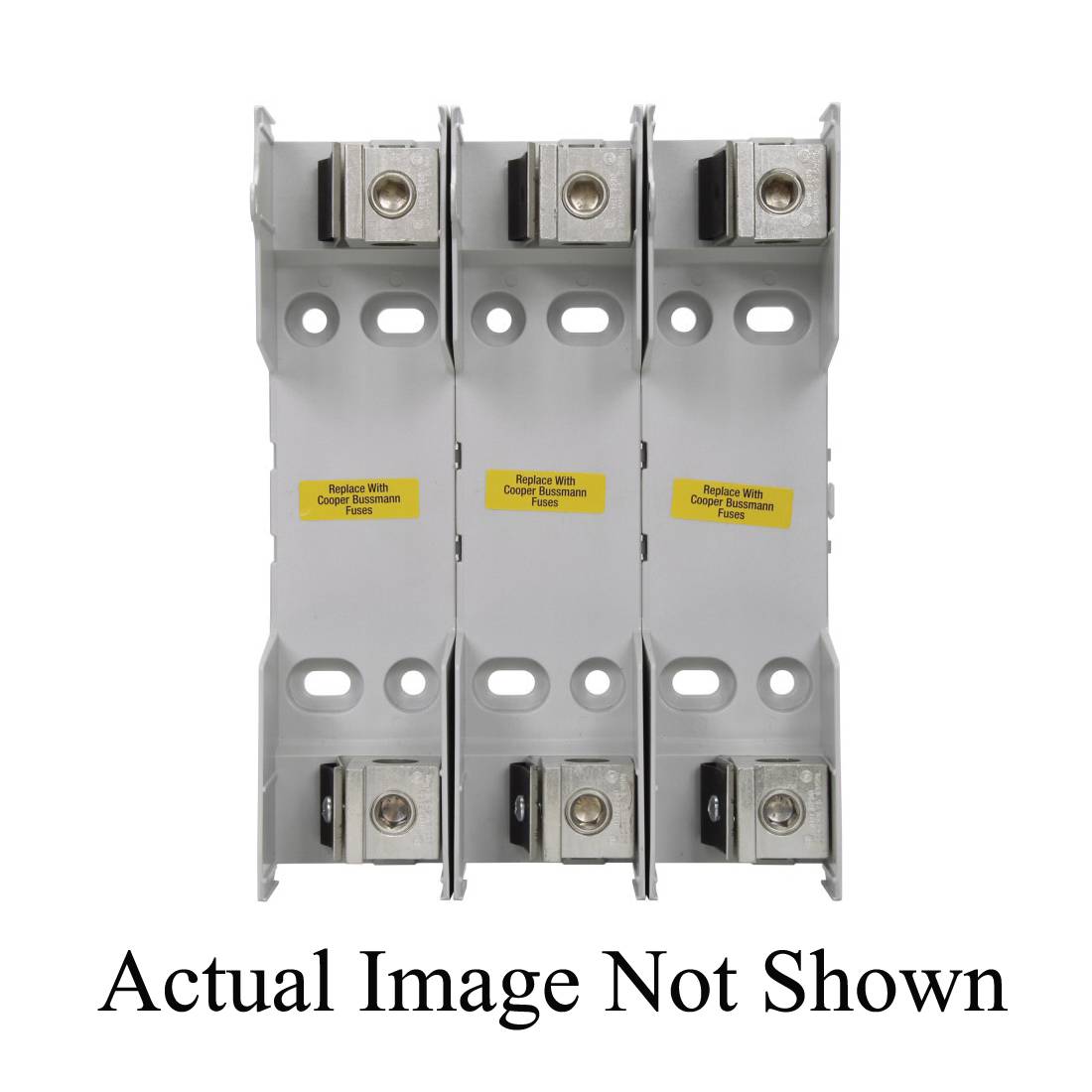

Edison RM60100-3CR RM600 Modular Knife Blade Fuse Block, 600 VAC, 100 A, R Class, 6 AWG to 250 kcmil Wire, 3 Poles

Short Description

Class R modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class R fuse amp range. All blocks are available as snap together single-pole versions for tool less assembly of multiple poles at point of use, or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Modular Knife Blade, Series: RM600, 600 VAC, 100 A, 3 Poles, Class: R, Fuse Holder Code: R, Box Lug, 6 AWG to 250 kcmil Wire, Panel Mount, 7.88 in Fuse Length, 1.34/1.16 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPS-RK-SP and LPS-RK-SPI, Fusetron™ FRS-R, Limitron™ KTS-R, KWS-R and PVS-R Fuse, Thermoplastic, 9.2 in L x 6 in W x 2.8 in H

MFG #: RM60100-3CR

EECO #: BURM601003CR

Brand: Edison
UPC #: 051712391238
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
6 AWG to 250 kcmil
Application
Electrical Assemblies, Panels, EOEMs, Critical Power, Factory Automation, Renewable Energy, HVAC, Building/Elevator Controls, Building Entrance and Process Industries Applications
Mounting Type
Panel
Terminal Type
Box Lug
Voltage Rating
600
Connection Type
Box Lug
Number Of Poles
3
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt
Type
Modular Knife Blade
Series
RM600
Clip Type
Spring Reinforced
Fuse Type
Class R
Dimensions
9.2 in L x 6 in W x 2.8 in H
Amperage Rating
100
Fuse Current Rating
70 to 100 Amp
Suitable For Use With
Low-Peak™ LPS-RK-SP and LPS-RK-SPI, Fusetron™ FRS-R, Limitron™ KTS-R, KWS-R and PVS-R Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • 1.34 in dia for Fusetron® and Limitron®, 1.16 in dia for Low-Peak® fuses
Bussmann_HM25200_1CR_Specification_Sheet_1
Eaton_Bussmann_00093_8_21_8_23_CAT
Eaton_Bussmann_00125_16_17_DATA
Bussmann_HM25100_1CR_Specification_Sheet
Bussmann_HM25200_1CR_Specification_Sheet
Bussmann_KTS_R_75_Catalog
