Eaton

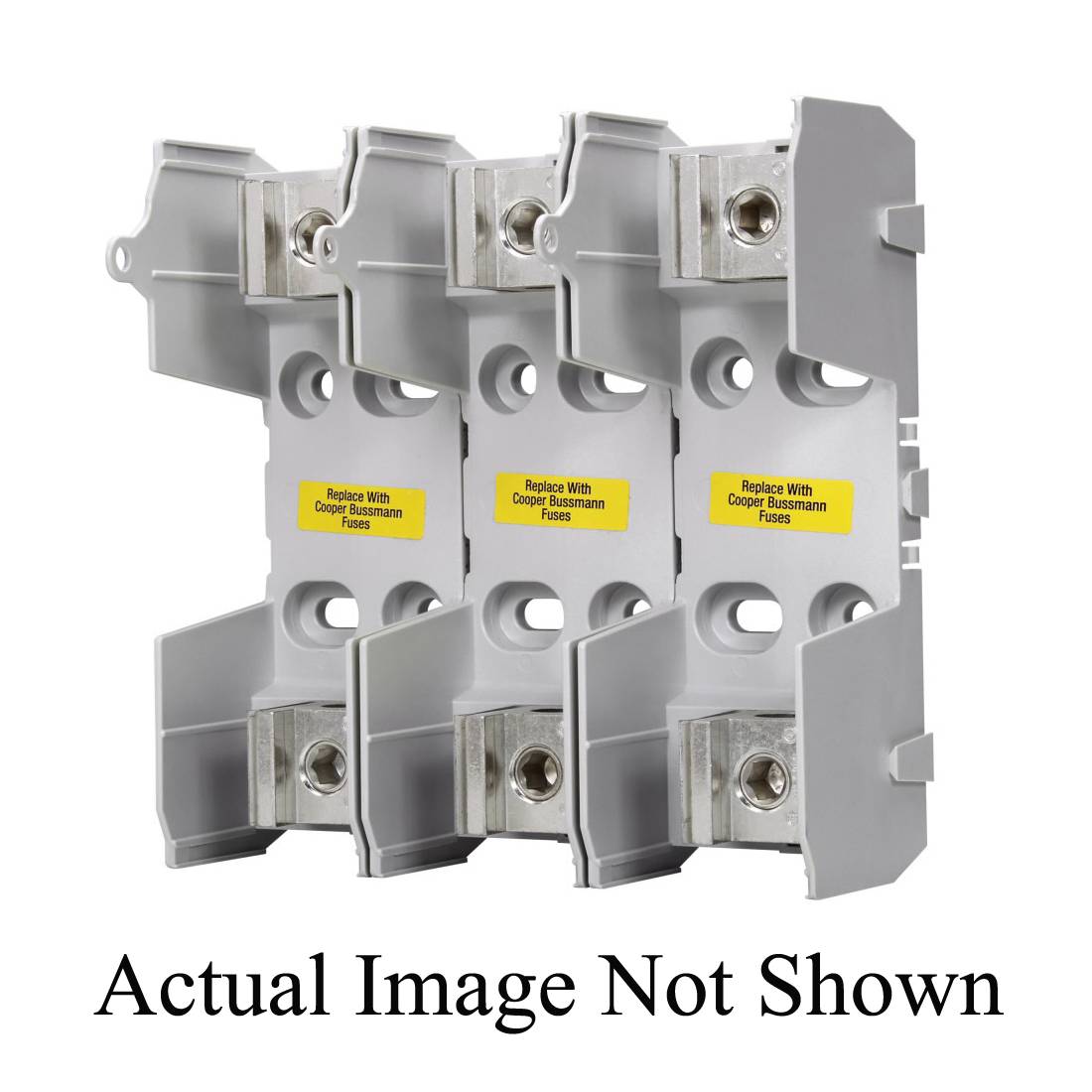

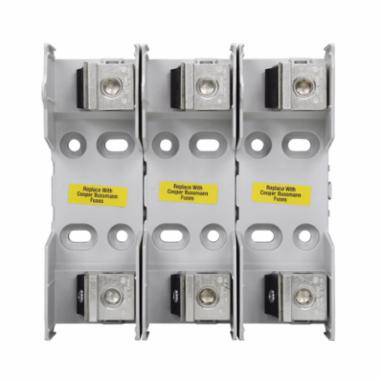

Bussmann RM25200-3CR Modular Fuse Block, 250 V, 110 to 200 A, Class: R, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, 3 Poles

Short Description

Class R modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class R fuse amp range. All blocks are available as snap together single-pole versions for tool less assembly of multiple poles at point of use, or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 110 to 200 A, 3 Pole, Class: R, Knife Blade End, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H

MFG #: RM25200-3CR

EECO #: BURM252003CR

Brand: Bussmann
UPC #: 051712387354
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Approval
UL, CSA
Material
Thermoplastic
Wire Size
1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Hole
Terminal Type
Box Lug
Voltage Rating
250
Connection Type
Knife Blade End
Number Of Poles
3
Temperature Rating
-40 to 120
Fuse Voltage Rating
250 Volt
Type
Modular
Series
RM Series
Clip Type
Spring Reinforced
Fuse Type
Class R
Dimensions
7.3 in L x 7.9 in W x 3.8 in H
Amperage Rating
110 to 200
Fuse Current Rating
110 to 200 Amp
Suitable For Use With
Knife Blade Cartridge Fuse
Features
  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial power circuits
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
  • Standard fuse clip reinforcing springs enhance electrical contact
