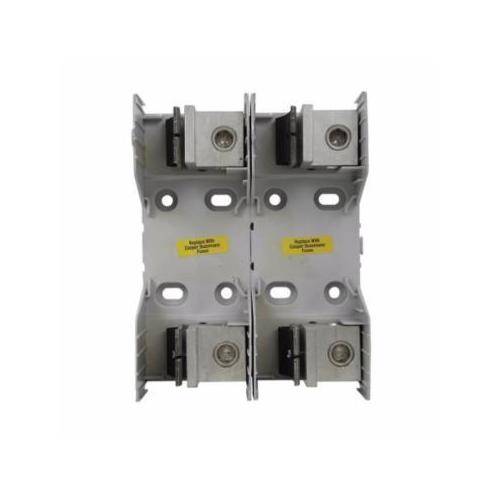

Edison RM25200-2CR Knife Blade Fuse Block, 250 VAC, 200 A, Class R, 2 Poles

Short Description

Class R modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class R fuse amp range. All blocks are available as snap together single-pole versions for tool less assembly of multiple poles at point of use, or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Knife Blade, Series: RM Series, 250 VAC, 200 A, 2 Poles, Class: R, Box Lug, -40 to 120 deg C, Thermoplastic, 8.7 in L x 5.3 in W x 3.8 in H
MFG #: RM25200-2CR

EECO #: BURM252002CR

Brand: Edison
UPC #: 051712387347
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Material
Thermoplastic
Wire Size
6 AWG to 250 kcmil
Application
For electrical assemblies, panels and EOEMs applications
Mounting Type
Panel
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Knife Blade
Series
RM Series
Dimensions
8.7 in L x 5.3 in W x 3.8 in H
Amperage Rating
200
Suitable For Use With
Low-Peak™ LPN-RK-SP and LPN-RK-SPI, Fusetron™ FRN-R, Limitron™ KTN-R Fuse
Features
  • Integral dovetails allow assembly of multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Standard fuse clip reinforcing springs enhance electrical contact
RM25200_2CR_Specification_Sheet
Bussmann_HM25200_1CR_Specification_Sheet
Bussmann_RM25100_1CR_Catalog
