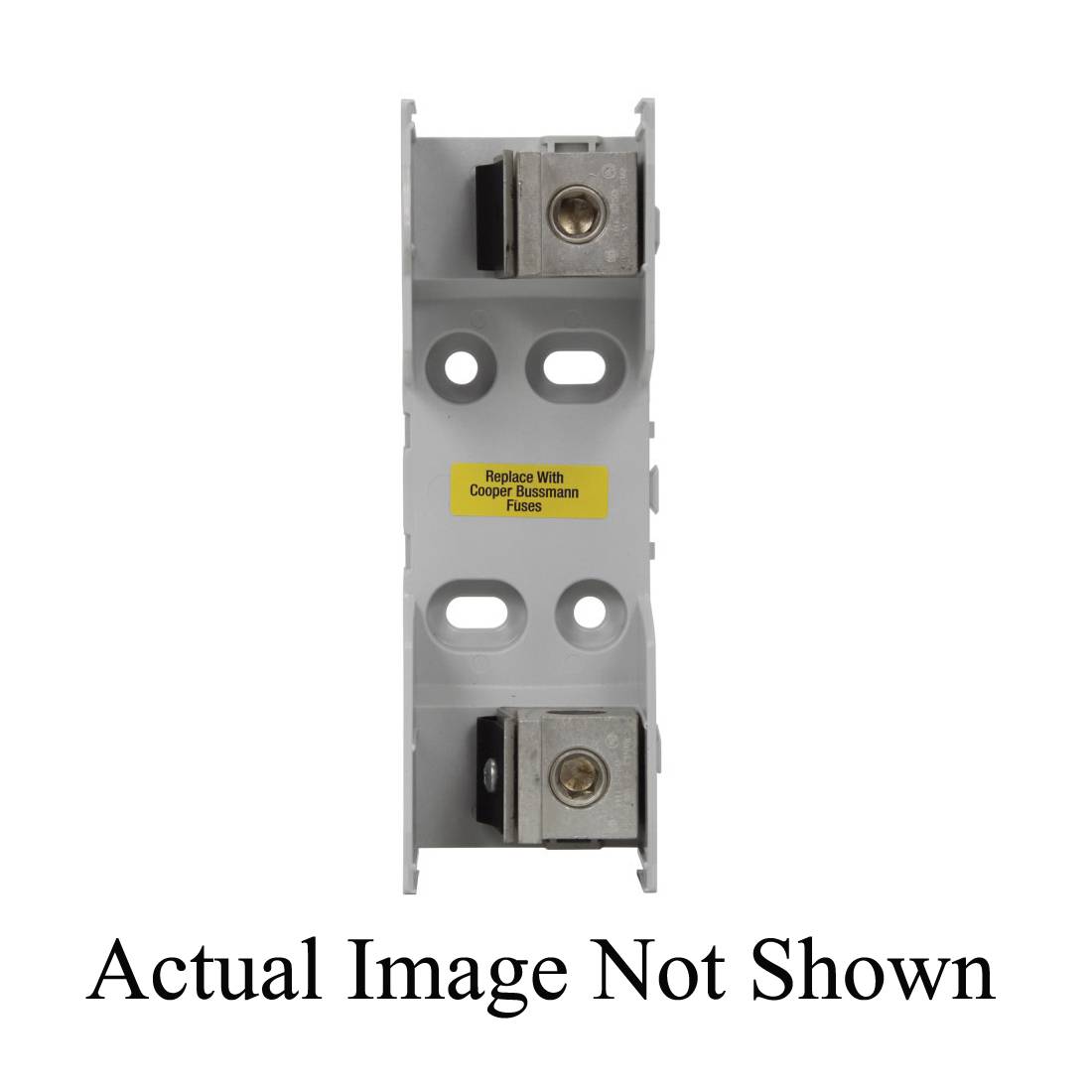

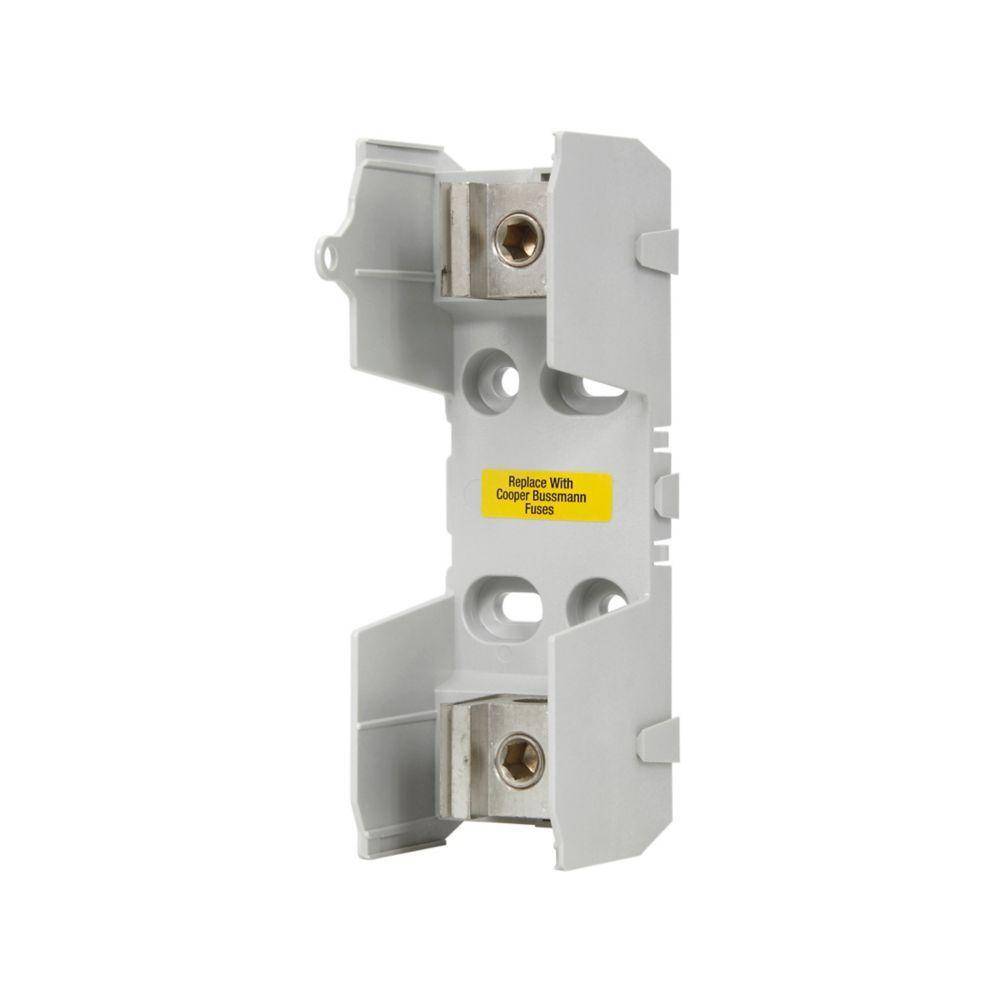

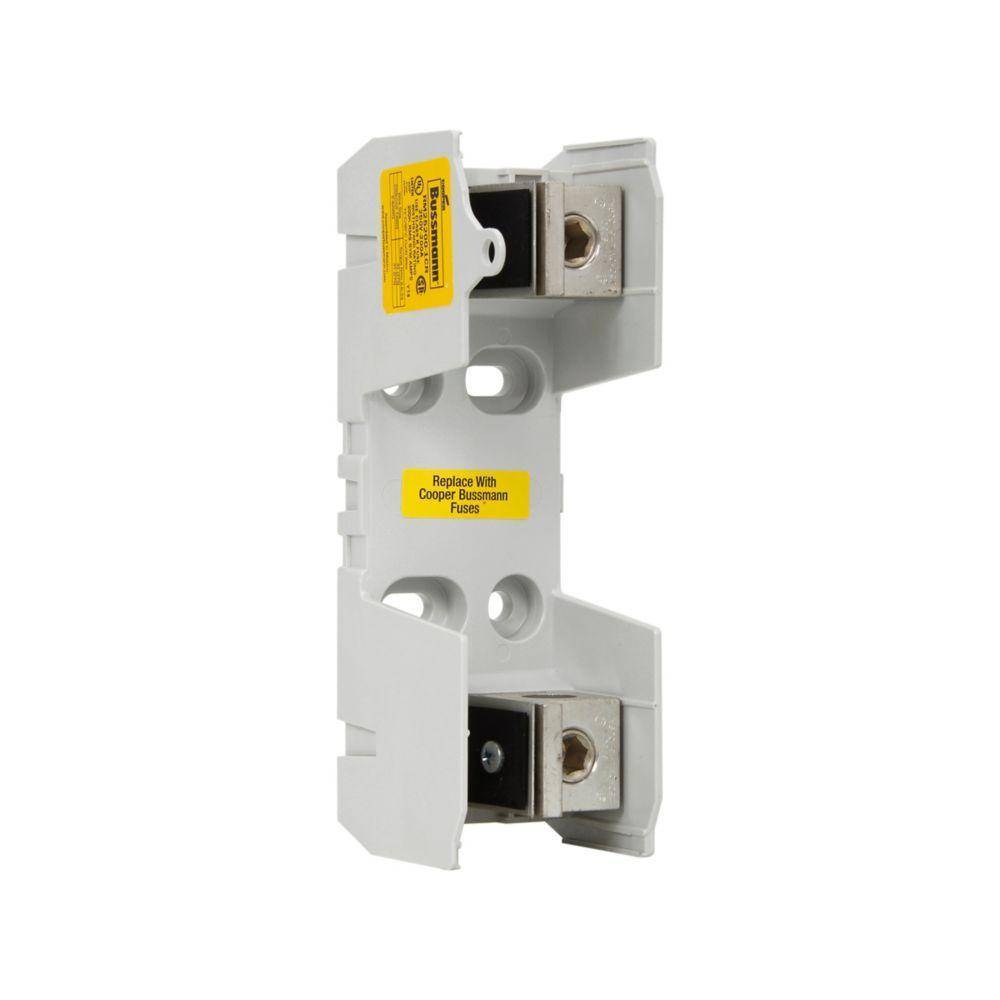

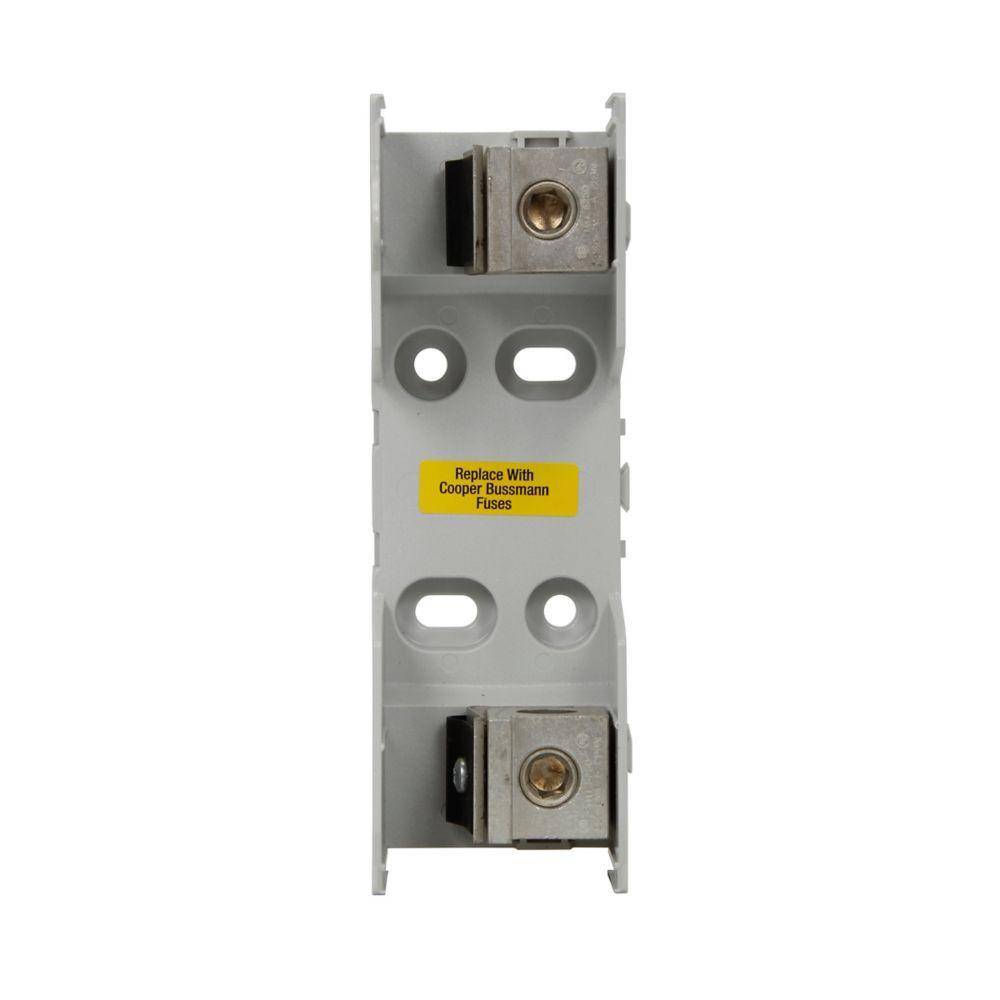

Edison RM25200-1CR RM250 Modular Knife Blade Fuse Block, 250 VAC, 200 A, R Class, 6 AWG to 250 kcmil Wire, 1 Pole

Short Description

Class R modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class R fuse amp range. All blocks are available as snap together single-pole versions for tool less assembly of multiple poles at point of use, or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Modular Knife Blade, Series: RM250, 250 VAC, 200 A, 1 Poles, Class: R, Fuse Holder Code: M, Box Lug, 6 AWG to 250 kcmil Wire, Panel Mount, 7.13 in Fuse Length, 1.56/1.66 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPN-RK-SP and LPN-RK-SPI, Fusetron™ FRN-R, Limitron™ KTN-R Fuse, Thermoplastic, 8.7 in L x 2.7 in W x 3.8 in H
MFG #: RM25200-1CR

EECO #: BURM252001CR

Brand: Edison
UPC #: 051712387330
Attributes
Features
Documents
Product Information
Attributes
Class
R
UNSPSC
39121629
Material
Thermoplastic
Wire Size
6 AWG to 250 kcmil
Application
Electrical Assemblies, Panels, EOEMs, Critical Power, Factory Automation, Renewable Energy, HVAC, Building/Elevator Controls, Building Entrance and Process Industries Applications
Mounting Type
Panel
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular Knife Blade
Series
RM250
Dimensions
8.7 in L x 2.7 in W x 3.8 in H
Amperage Rating
200
Suitable For Use With
Low-Peak™ LPN-RK-SP and LPN-RK-SPI, Fusetron™ FRN-R, Limitron™ KTN-R Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • 1.56 in dia for Fusetron® and Limitron®, 1.66 in dia for Low-Peak® fuses
