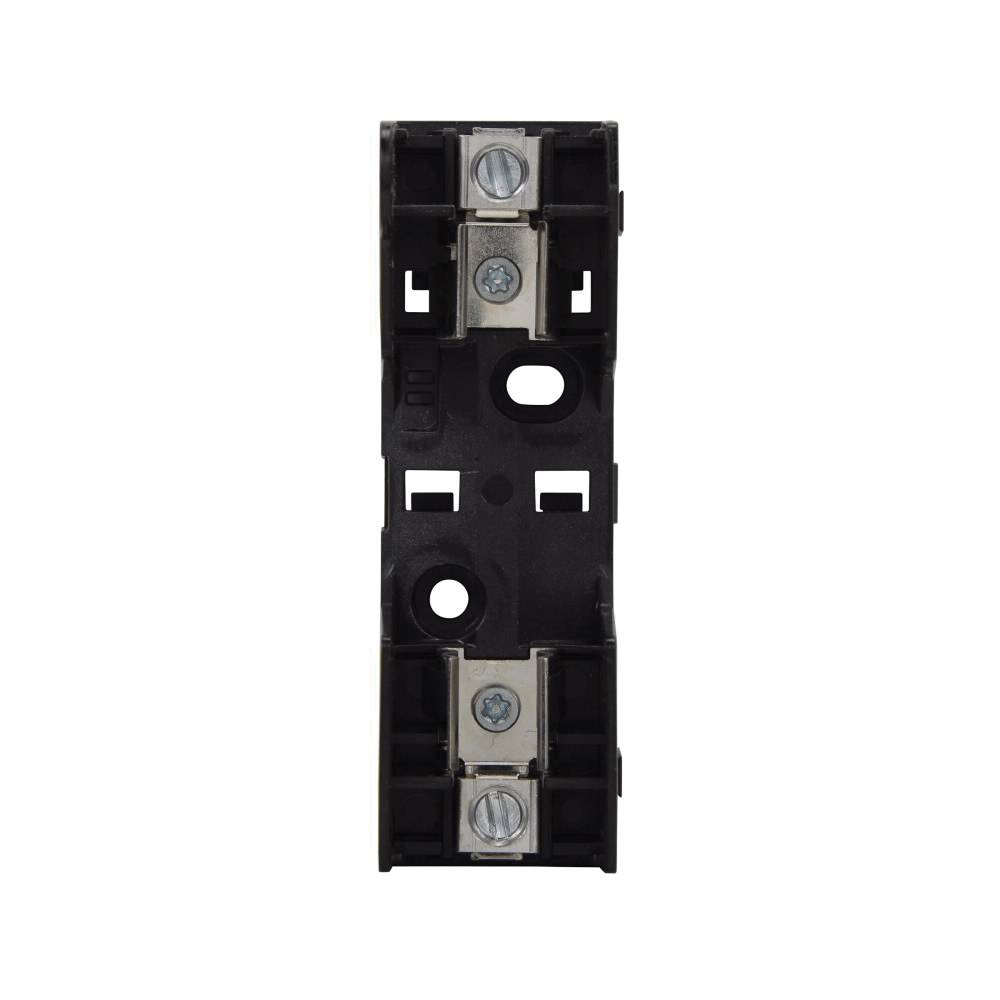

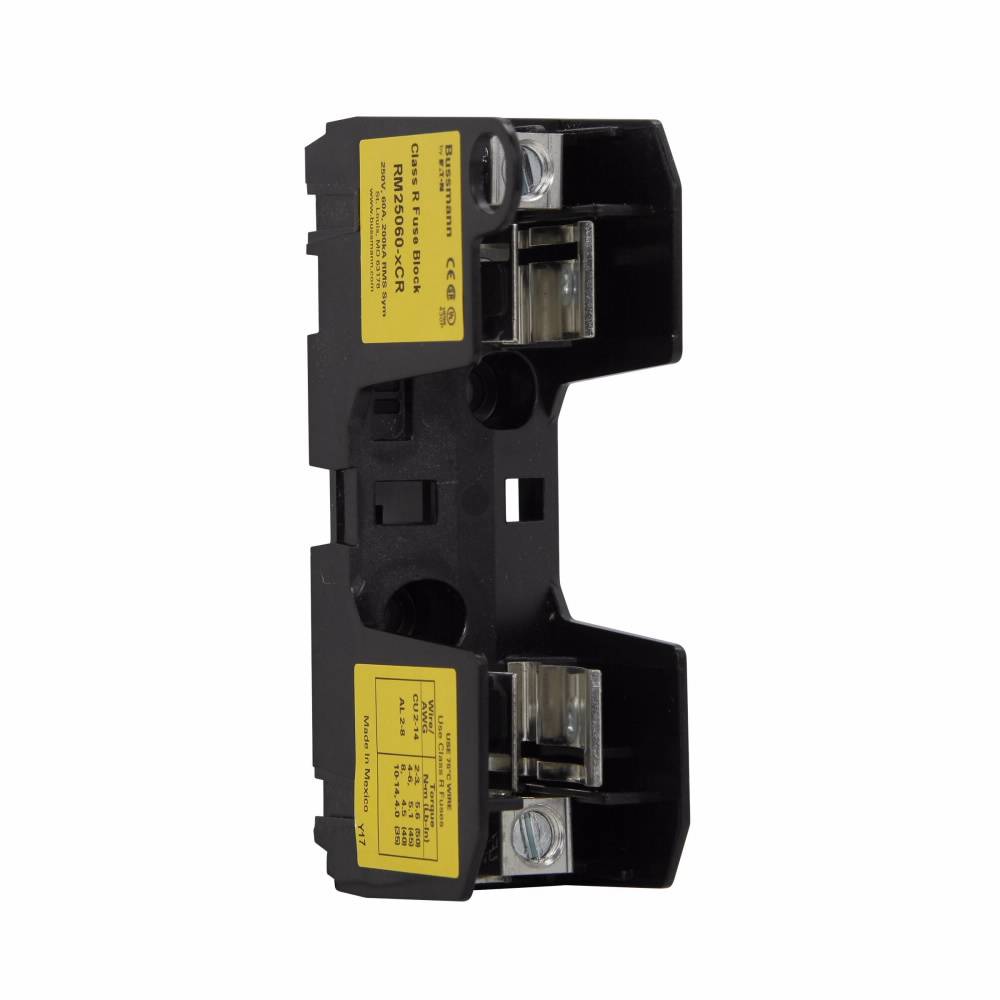

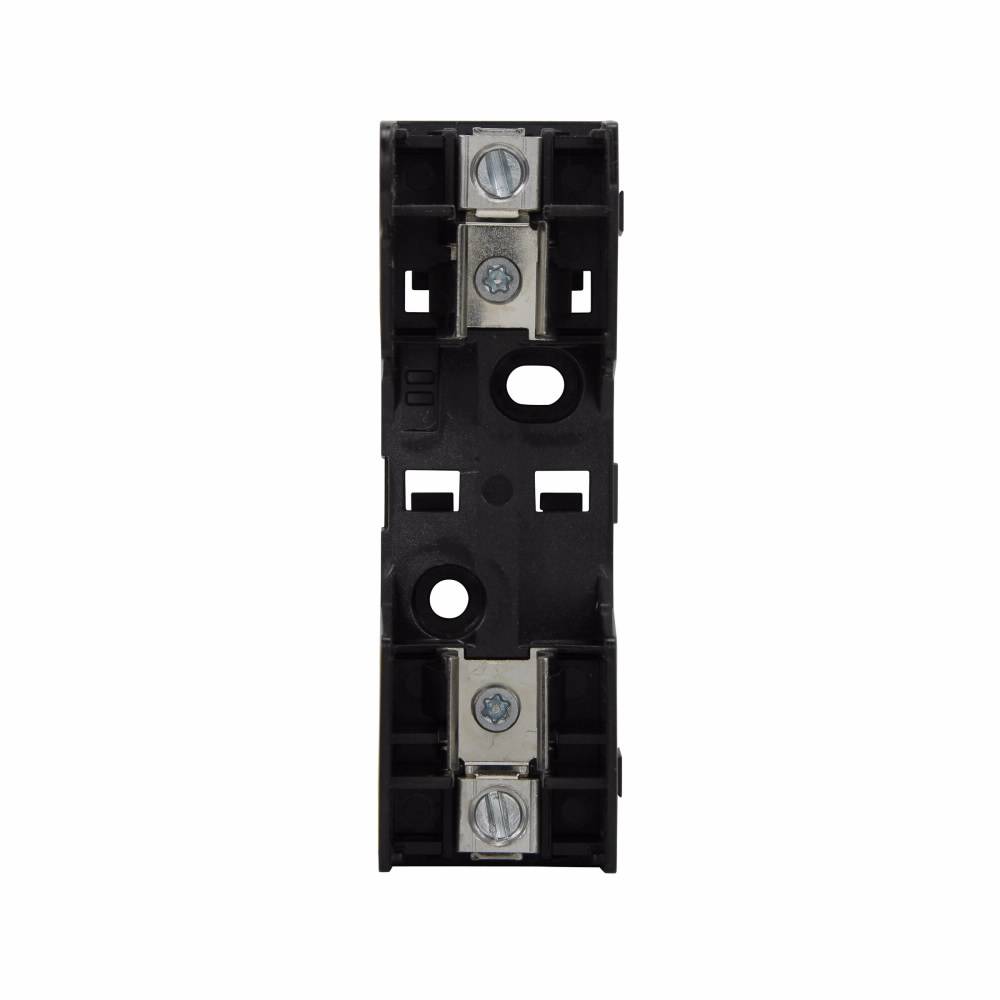

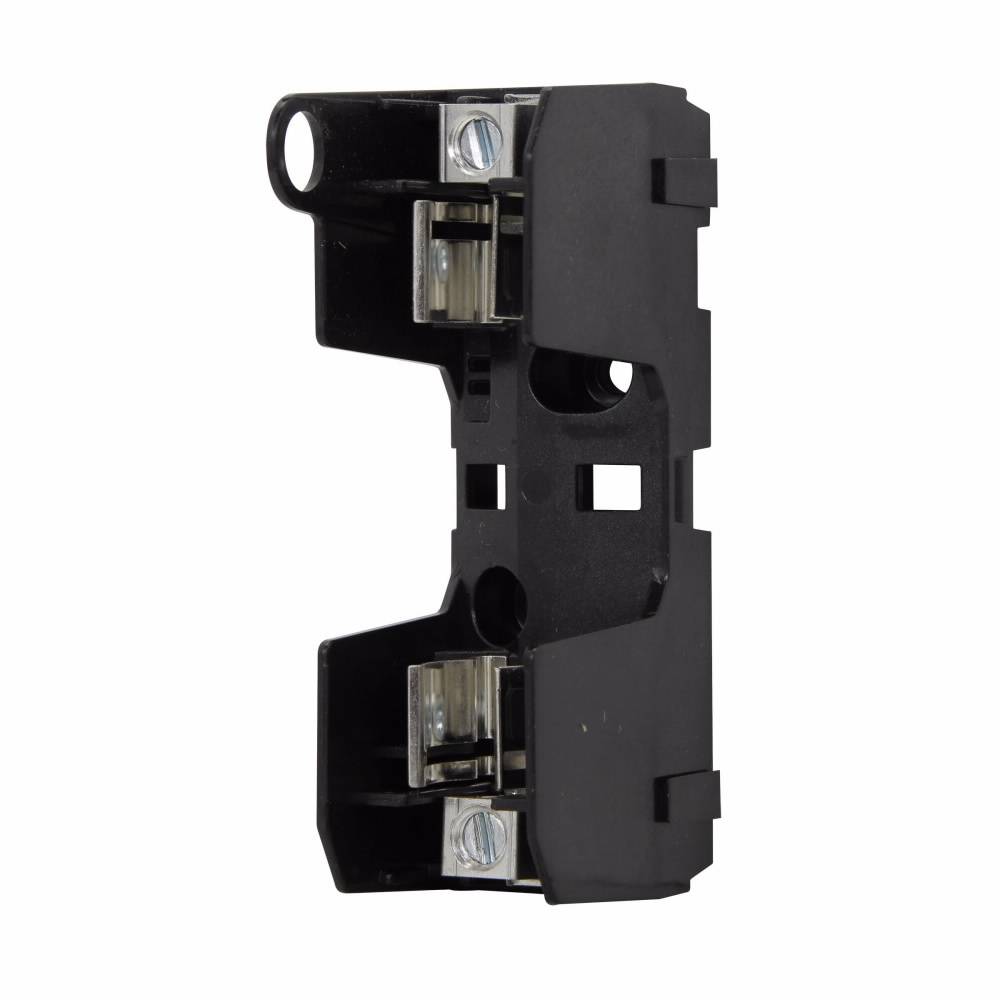

PrintEdison RM25060-1CR Modular Fuse Block, 250 VAC, 60 A, Class: R, 14 to 2 AWG, 8 to 2 AWG Wire, 1 Pole
Bussmann series class R modular fuse blocks increase versatility, reduce labor and enhance safety for any panel or electrical system design. Available for the full class R fuse amp range. These fuse blocks feature a standard fuse clip reinforcing spring for enhanced electrical contact between the block and fuse. All blocks are available as 1-pole versions that snap together for the required number of poles or as factory configured 2 and 3-pole versions to meet stocking requirements. The modular design permits reducing inventory, assembly time and labor with tool less assembly of multiple poles at point of use. Ferrule fuse blocks up to 60 A save panel space with the smallest width dimension on the market and feature DIN rail and panel mount versatility so that one product can be used for multiple applications with lower inventory cost.
Edison Fuse Block, Modular, Series: RM250, 250 VAC, 60 A, 1 Pole, Class: R, Fuse Holder Code: K, Box Lug/Slot Screw, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 3 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPN Time Delay, Limitron™ KTN-R Fast Acting, Fusetron™ FRN Time Delay Ferrule Fuse, Thermoplastic, 4.2 in L x 1.4 in W x 2.3 in HEECO #: BURM250601CR
