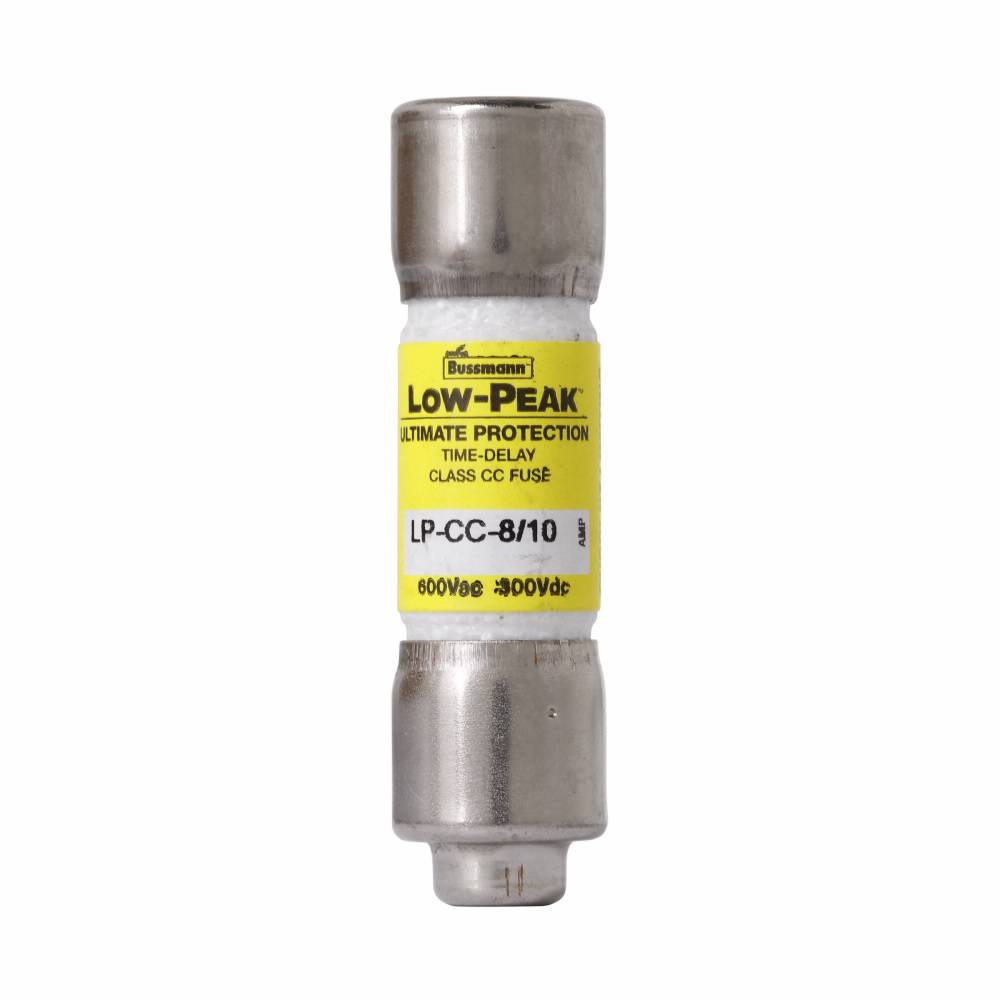

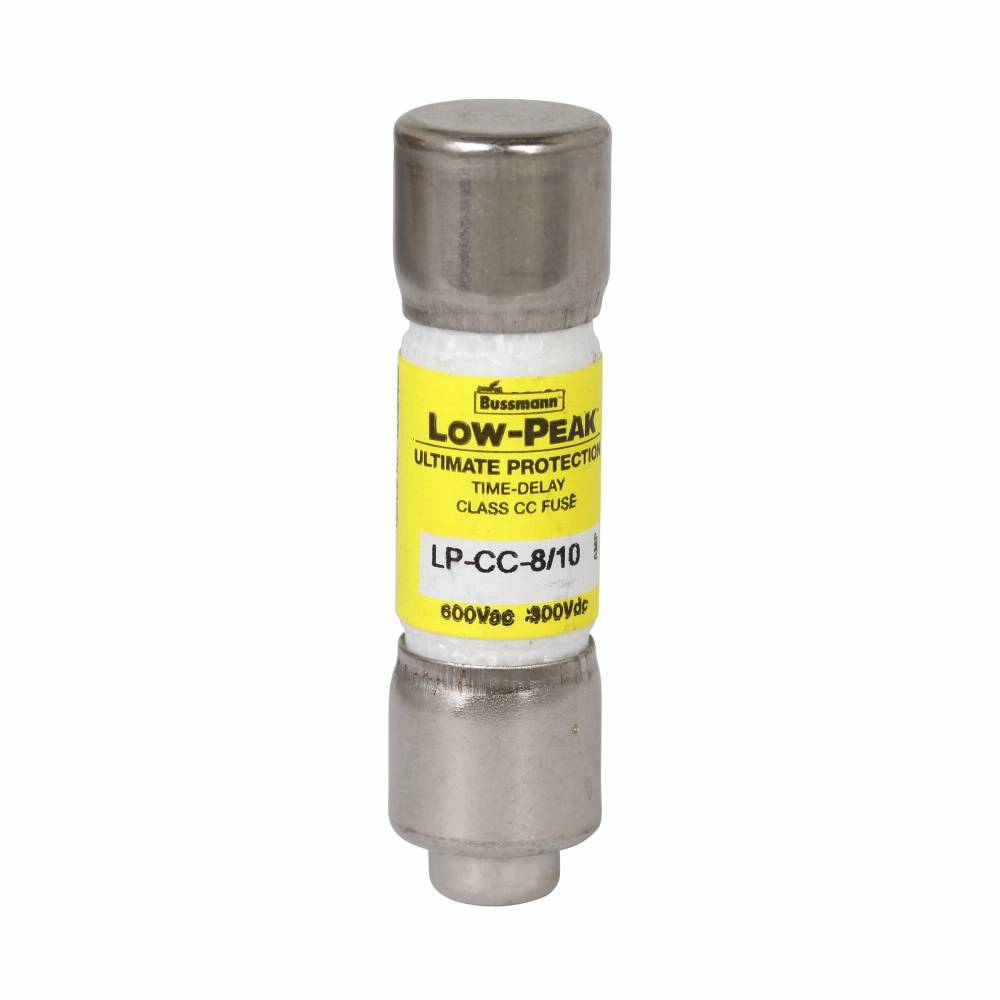

Bussmann Low-Peak™ LP-CC-8/10 Current Limiting Time Delay Fuse, 8/10 A, 600 VAC/300 VDC, 200 kA Interrupt, CC Class, Cylindrical Body

Short Description

EATON Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry-free installation in virtually any application. Low peak fuses are available in class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600 VAC over current protection needs. Plus, when upgrading to Low-Peak™ fuses, existing fuse inventory can be reduced by up to 33%.

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 8/10 A, 600 VAC/300 VDC, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, Yellow, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: LP-CC-8/10

EECO #: BULPCC8/10

Brand: Bussmann
UPC #: 051712180429
Attributes
Features
Documents
Product Information
Attributes
Class
CC
Color
Yellow
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine
Application
Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting Applications, Safety and Security Systems
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule
Current Rating
8/10 Amp
Voltage Rating
600 VAC/300 VDC
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
Type
Current Limiting
Series
LP-CC
Diameter
13/32 Inch
Amperage Rating
8/10
Features
  • Time delay coupled with class CC current-limiting response provides close sizing on small motor and relay circuits and maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Inventory consolidation of 13/32 x 1-1/2 in supplementary fuses reduces SKU investment and minimizes potential for misapplying fuse
  • Selective co-ordination ratio of 2:1 (within Low-Peak™ fuse family) prevents electrical shutdowns from extending beyond the failed circuit
  • Finger safe design with the Bussmann series class CF CUBE fuse
COBUSSE02785_1_4
COBUSSE03278_1_2_1_3_1_5
EATCORE56605_1_2
Qty Unit price
Ea
1 $22.16

Slqt
1 $22.16

Stpk
1 $221.60

Unit
1 $22.16
