Eaton

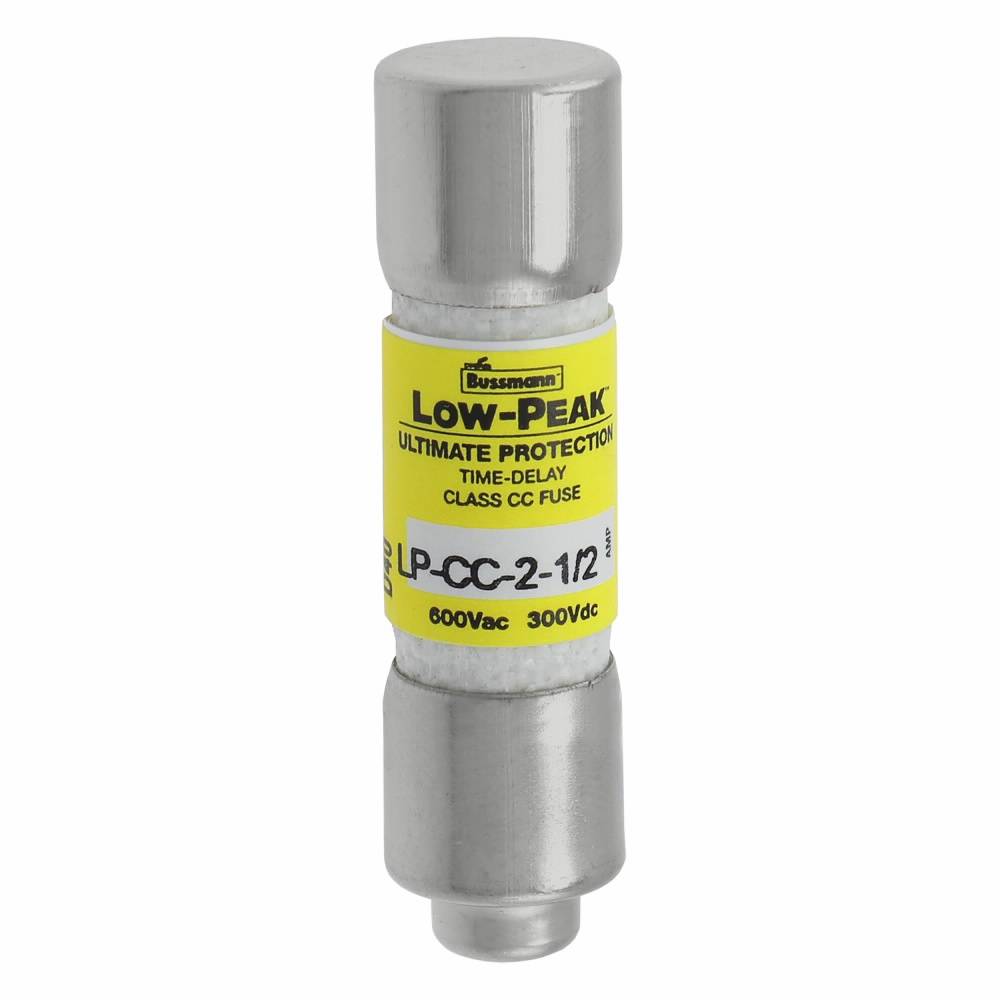

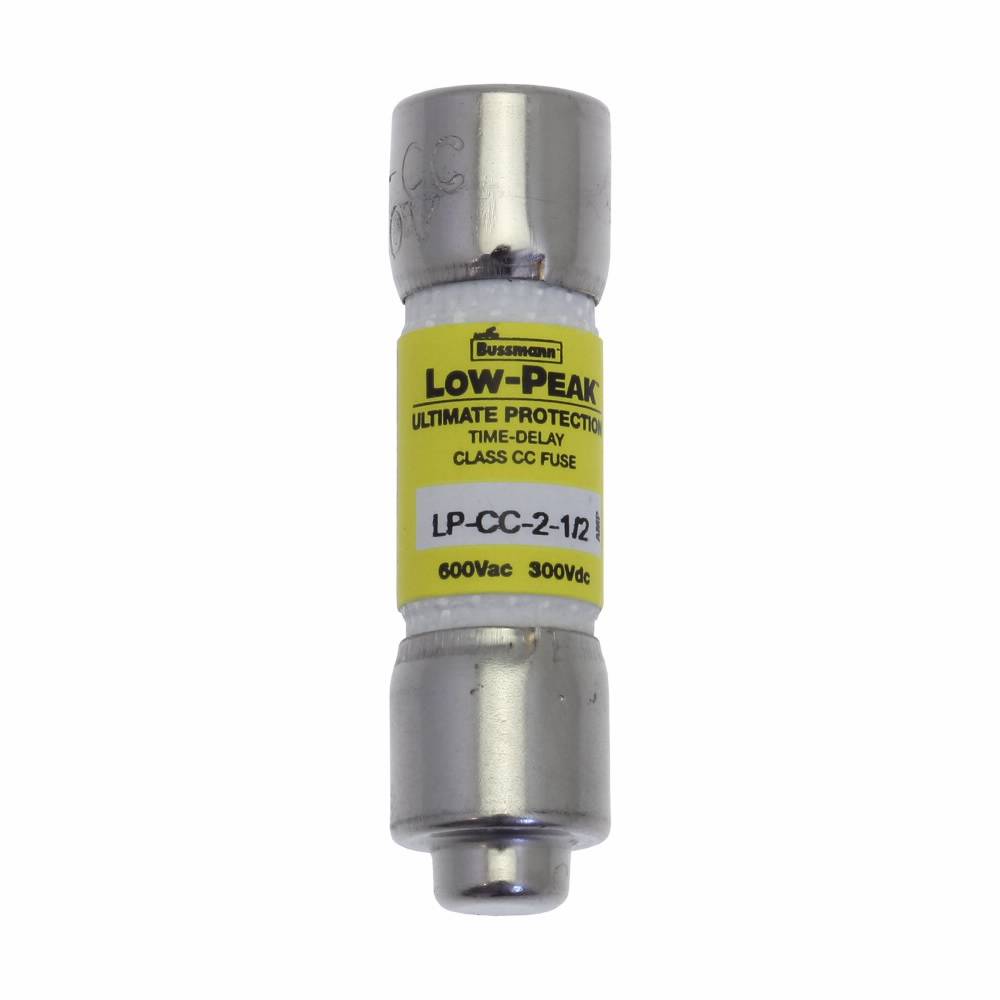

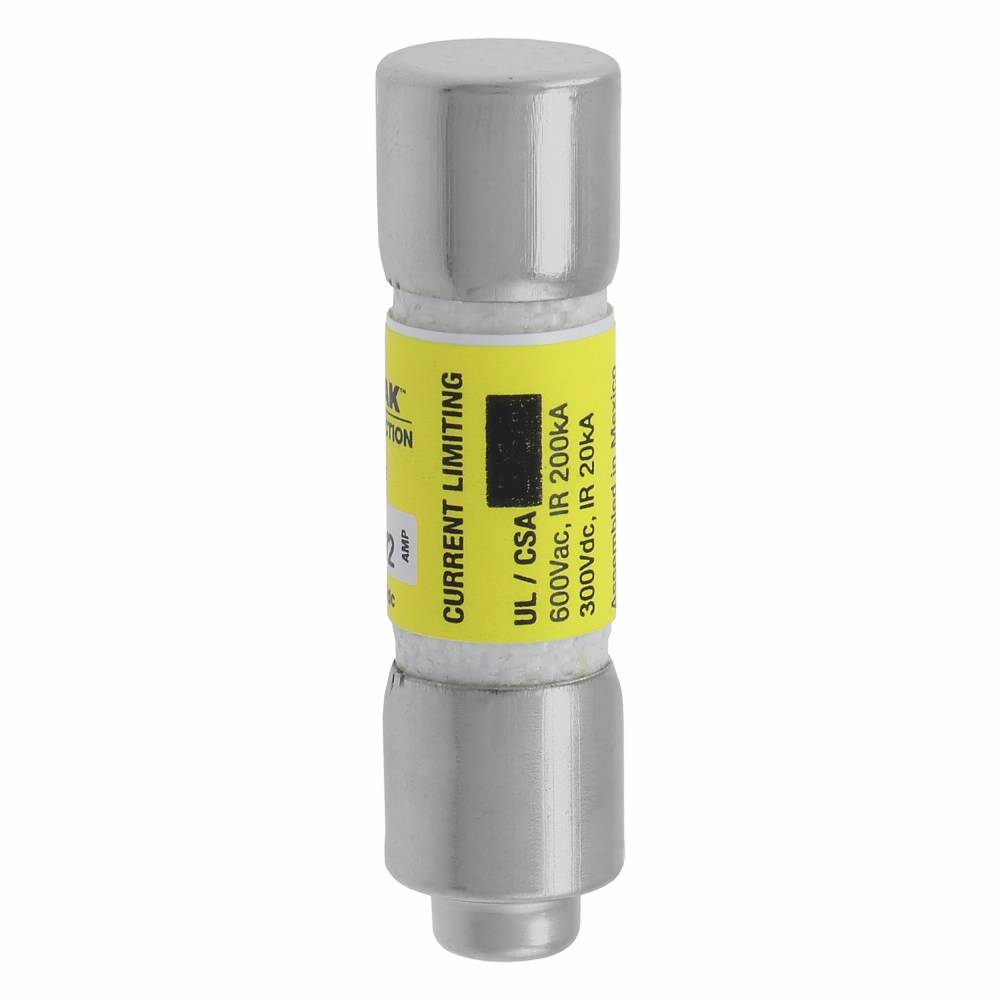

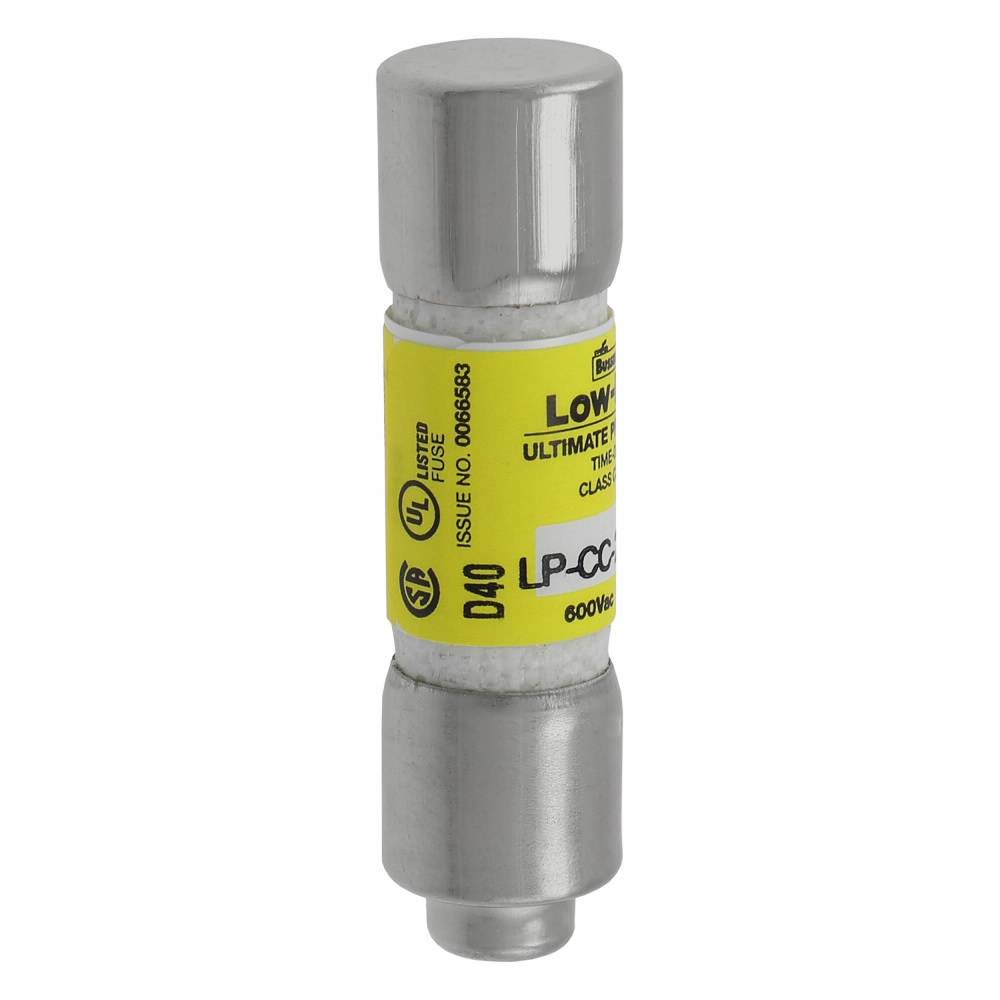

Bussmann Low-Peak™ LP-CC-2-1/2 Current Limiting Time Delay Fuse, 2.5 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, CC Class, Cartridge Body

Short Description

EATON Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry-free installation in virtually any application. Low peak fuses are available in class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600 VAC over current protection needs. Plus, when upgrading to Low-Peak™ fuses, existing fuse inventory can be reduced by up to 33%.

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2.5 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: LP-CC-2-1/2

EECO #: BULPCC21/2

Brand: Bussmann
UPC #: 051712180542
Attributes
Features
Documents
Product Information
Attributes
Class
CC
Color
Yellow
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine Tube
Application
Industrial Facilities and Factories, Safety and Security Systems, Specialized Circuits, Isolated and In-Line Fuse Holder Applications
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule End
Current Rating
2-1/2 Amp
Voltage Rating
600 VAC/300 VDC
Characteristics
12 Second Time Delay (at 200 Percent Rated Current), Dual Element, Non-Indicating, Current Limiting
Interrupting Rating
200 Kiloamp (Symmetrical), 20 Kiloamp (DC)
Type
Current Limiting Time Delay
Series
LP-CC
Diameter
0.41 Inch
Amperage Rating
2.5
Features
  • Fast short circuit protection and dual element, time delay performance provide ultimate protection
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
  • Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
  • Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
  • Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
  • A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
  • Very compact with a physical size only 13/32 x 1-1/2 in with rejection tip
  • Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
  • Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
  • Superior protection for small horsepower motor circuit
Eaton_Bussmann_00087_1_4_DATA
Eaton_Bussmann_00093_1_5_CAT
Qty Unit price
Ea
1 $22.16

Slqt
1 $22.16

Stpk
1 $221.60

Unit
1 $22.16
