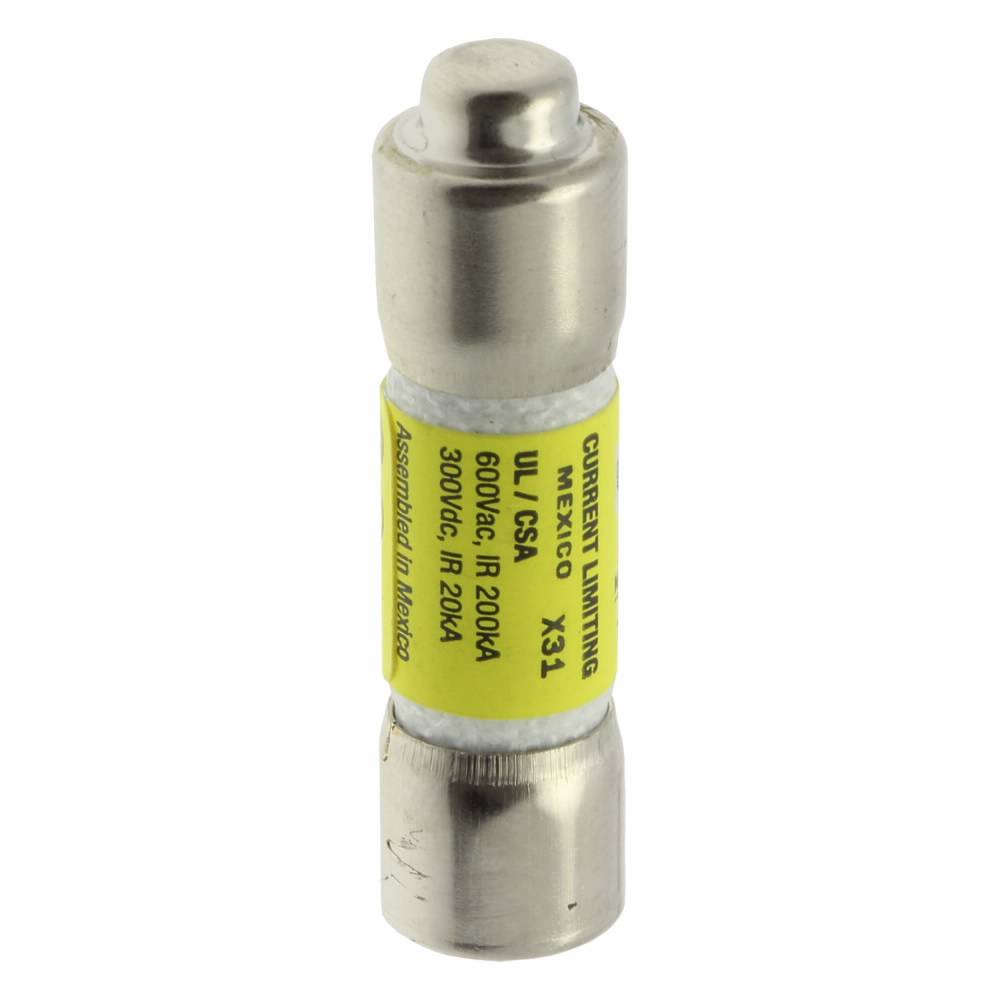

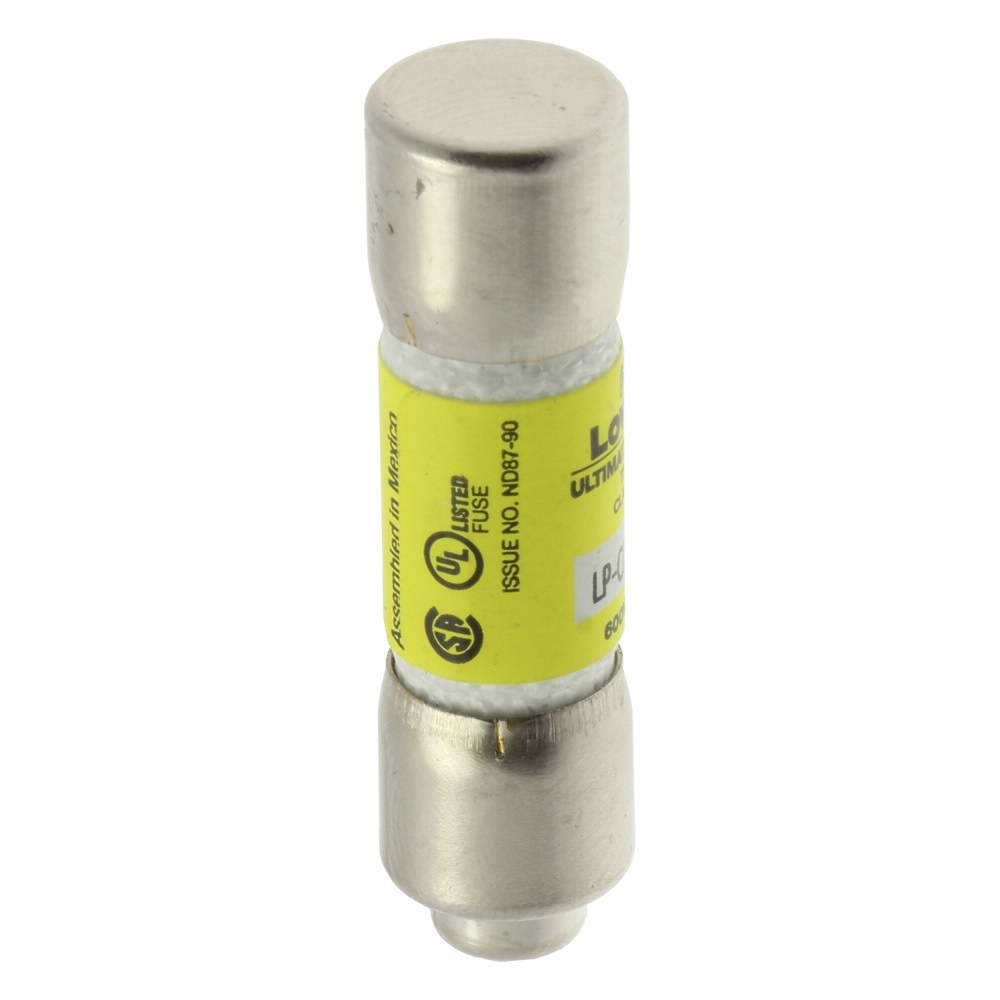

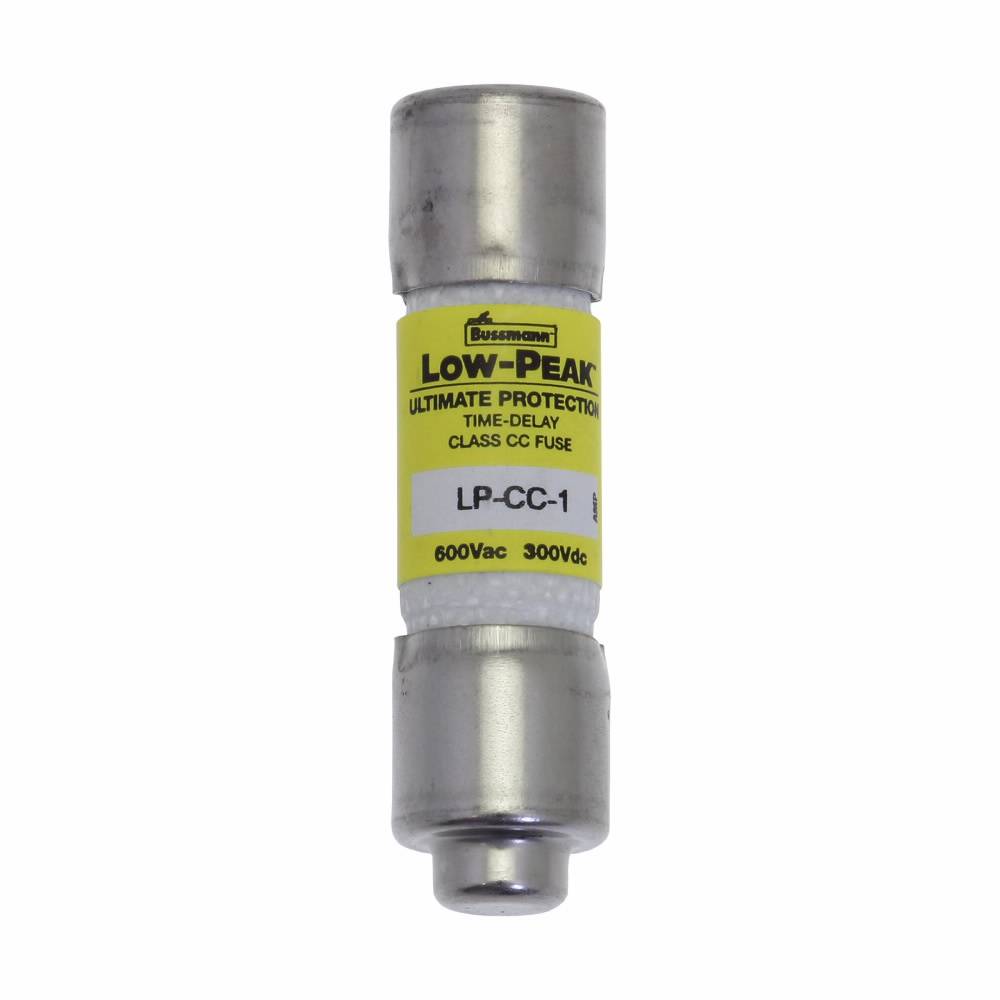

Bussmann Low-Peak™ LP-CC-1 Current Limiting Time Delay Fuse, 1 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Short Description

EATON Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry-free installation in virtually any application. Low peak fuses are available in class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600 VAC over current protection needs. Plus, when upgrading to Low-Peak™ fuses, existing fuse inventory can be reduced by up to 33%.

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: LP-CC-1

EECO #: BULPCC1

Brand: Bussmann
UPC #: 051712180436
Attributes
Features
Documents
Product Information
Attributes
Class
CC
Color
Yellow
UNSPSC
39121606
Approval
UL 248-4, CSA, CE
Material
Melamine
Application
Specialized Circuits, Industrial Control, Isolated and In-Line Fuse Holder, Safety and Security Systems
Mounting Type
Holder
Response Time
12 s at 200%
Terminal Type
Ferrule
Current Rating
1 Amp
Voltage Rating
600 VAC/300 VDC
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
Type
Current Limiting
Series
LP-CC
Diameter
13/32 Inch
Amperage Rating
1
Features
  • 200 kA interrupting rating complies with NEC section 110.9 for today's large capacity systems
  • Fast short circuit protection and dual element, time delay performance provide ultimate protection
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
  • Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
  • Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
  • Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
  • A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
  • Very compact, with a physical size only 13/32 x 1-1/2 in with rejection tip
  • Proper sizing can provide "no damage" type 2 motor starter protection for NEMA® and IEC® motor controllers
  • Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
  • Superior protection for small horsepower motor circuit
  • 12 s minimum at 200% of rated current response time
  • 200 kA at 600 VAC rms symmetrical, 20 kA at 300 VDC interrupt rating
COBUSSE02635_1_4
COBUSSE03278_1_2_1_3_1_5
Qty Unit price
Ea
1 $22.16

Slqt
1 $22.16

Stpk
1 $221.60

Unit
1 $22.16
