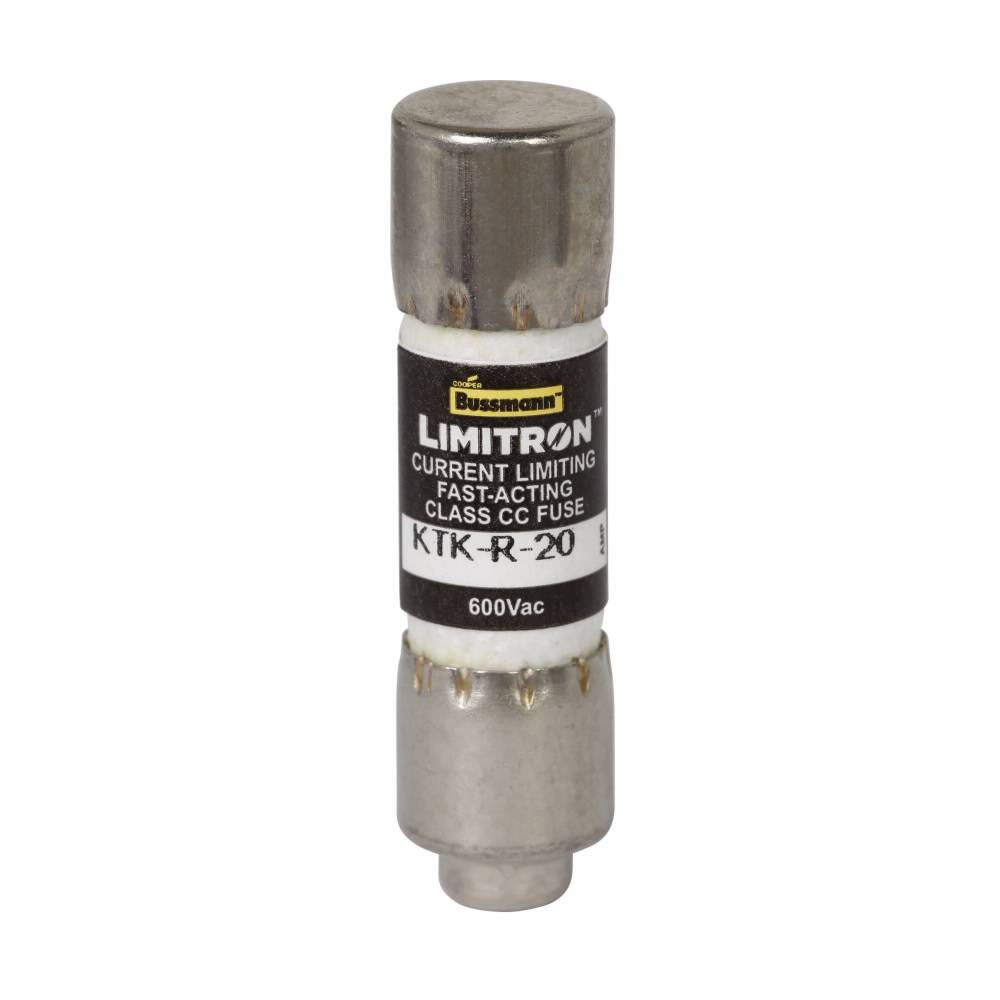

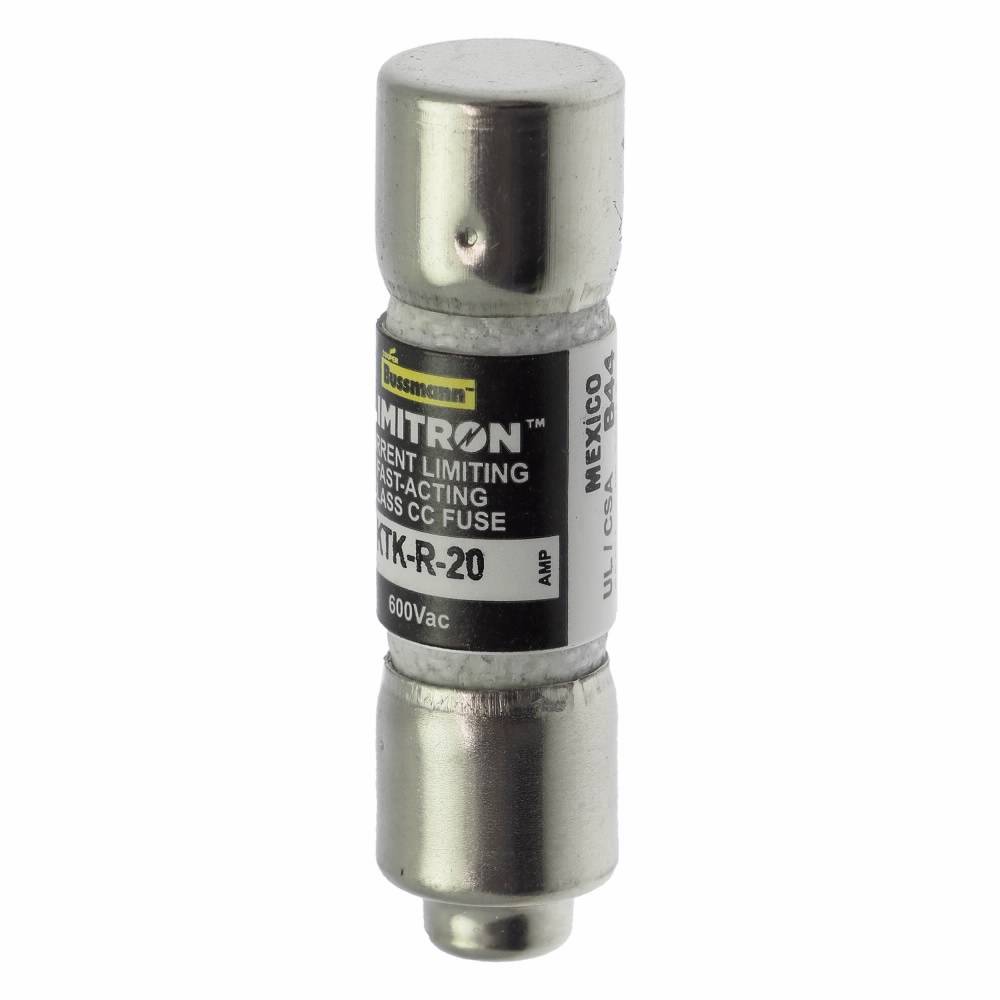

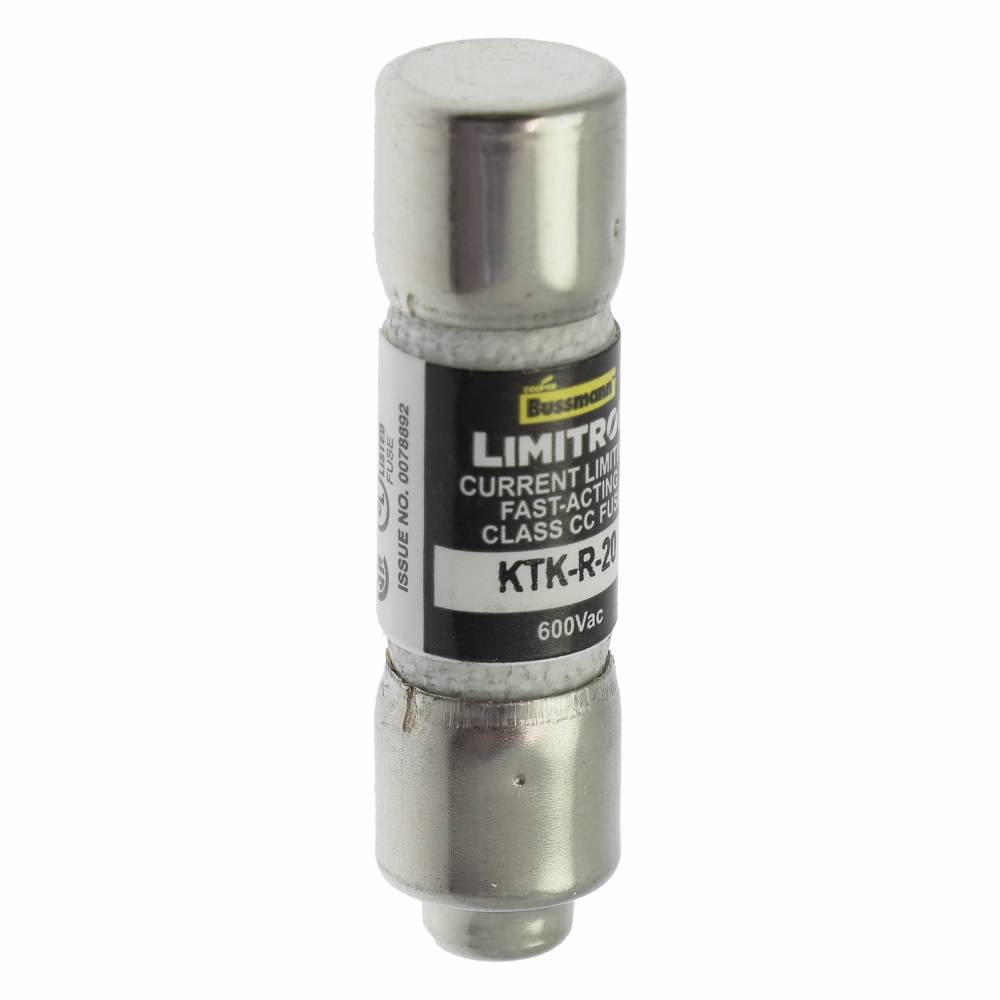

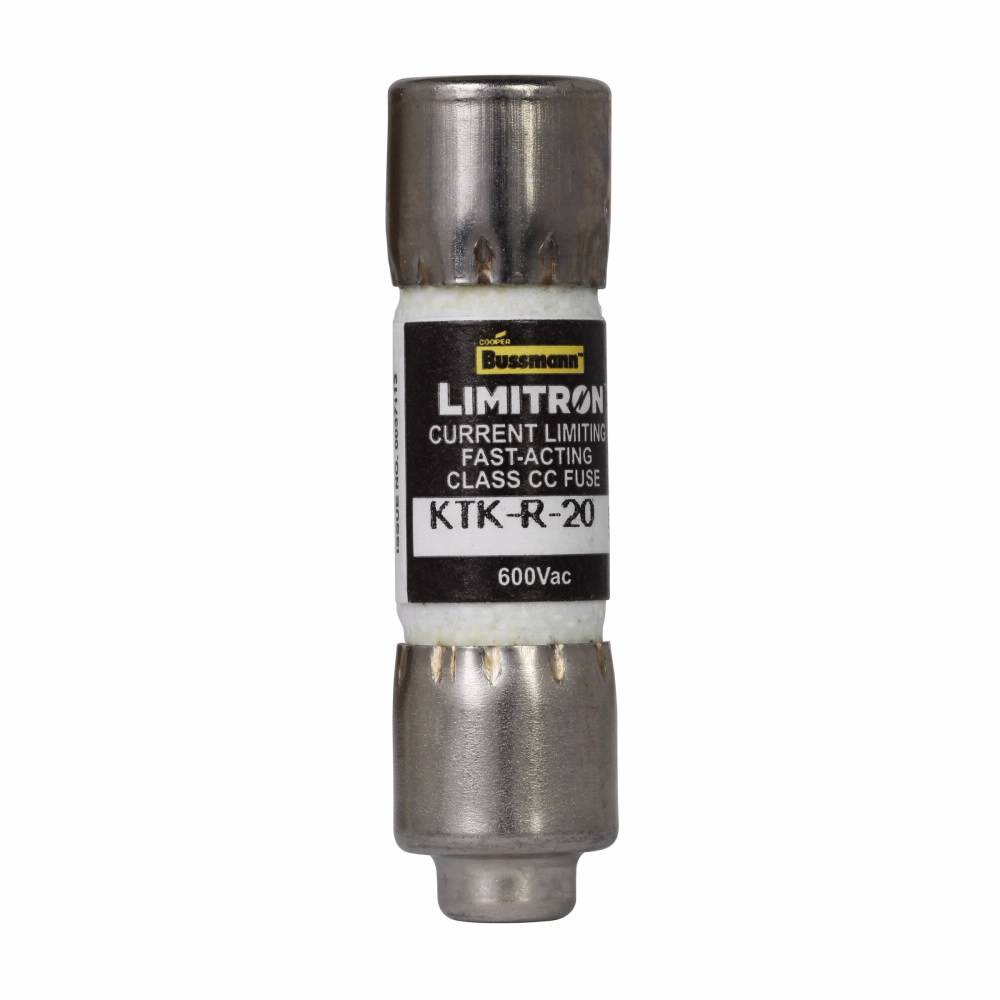

Bussmann Limitron™ KTK-R-20 Fast Acting Current Limiting Low Voltage Fuse, 20 A, 600 V, 200 kA Interrupt, CC Class, Cartridge Body

Short Description

Eaton Bussmann series Limitron™ fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200 kA interrupting rating.

Bussmann Limitron™ Fuse, Fast Acting Current Limiting Low Voltage, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 V, 200 kA Interrupt, Class: CC, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: KTK-R-20

EECO #: BUKTKR20

Brand: Bussmann
UPC #: 051712420716
Attributes
Features
Documents
Product Information
Attributes
Class
CC
UNSPSC
39121606
Approval
UL 248-4, CSA C22.2, CE
Material
Melamine
Application
Specialized Circuits, Industrial Control, Street Lighting (Isolated In-Line Fuse Holders) and Branch Circuit, Safety and Security Systems
Mounting Type
Holder
Terminal Type
Ferrule
Current Rating
20 Amp
Voltage Rating
600
Characteristics
Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Fast Acting Current Limiting Low Voltage
Series
KTK-R
Diameter
13/32 Inch
Amperage Rating
20
Features
  • Current limitation at class CC levels provides maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated bronze end caps
COBUSSE02633_1_5
COBUSSE03278_1_2_1_7
EATCORE56496_1
Qty Unit price
Ea
1 $17.73

Slqt
1 $17.73

Stpk
1 $177.30

Unit
1 $17.73
