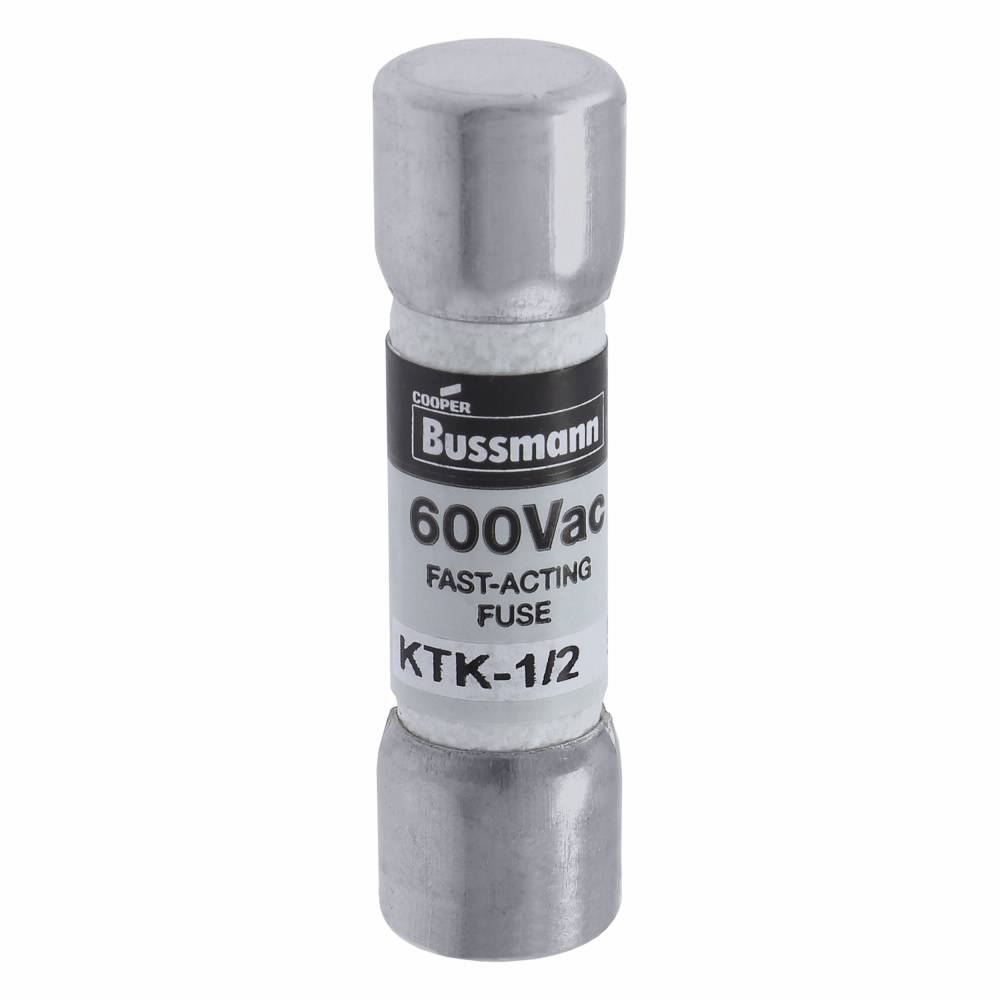

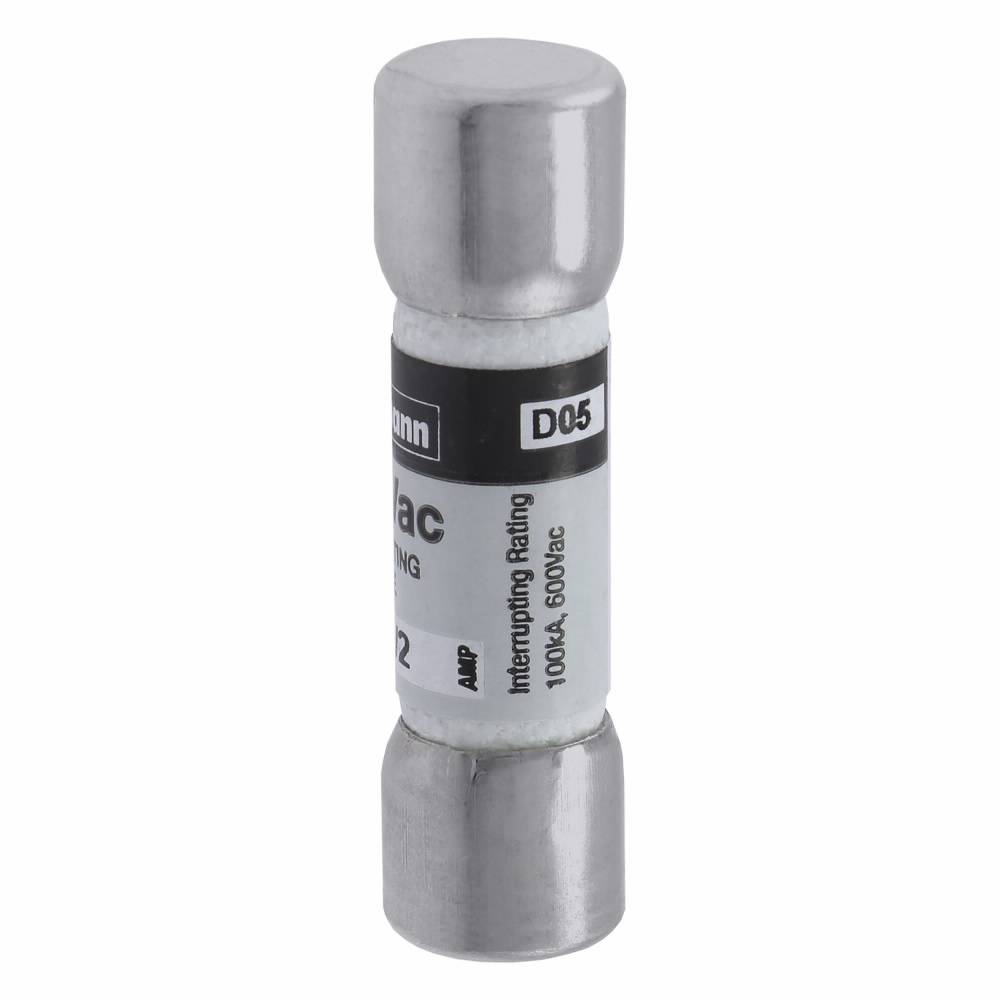

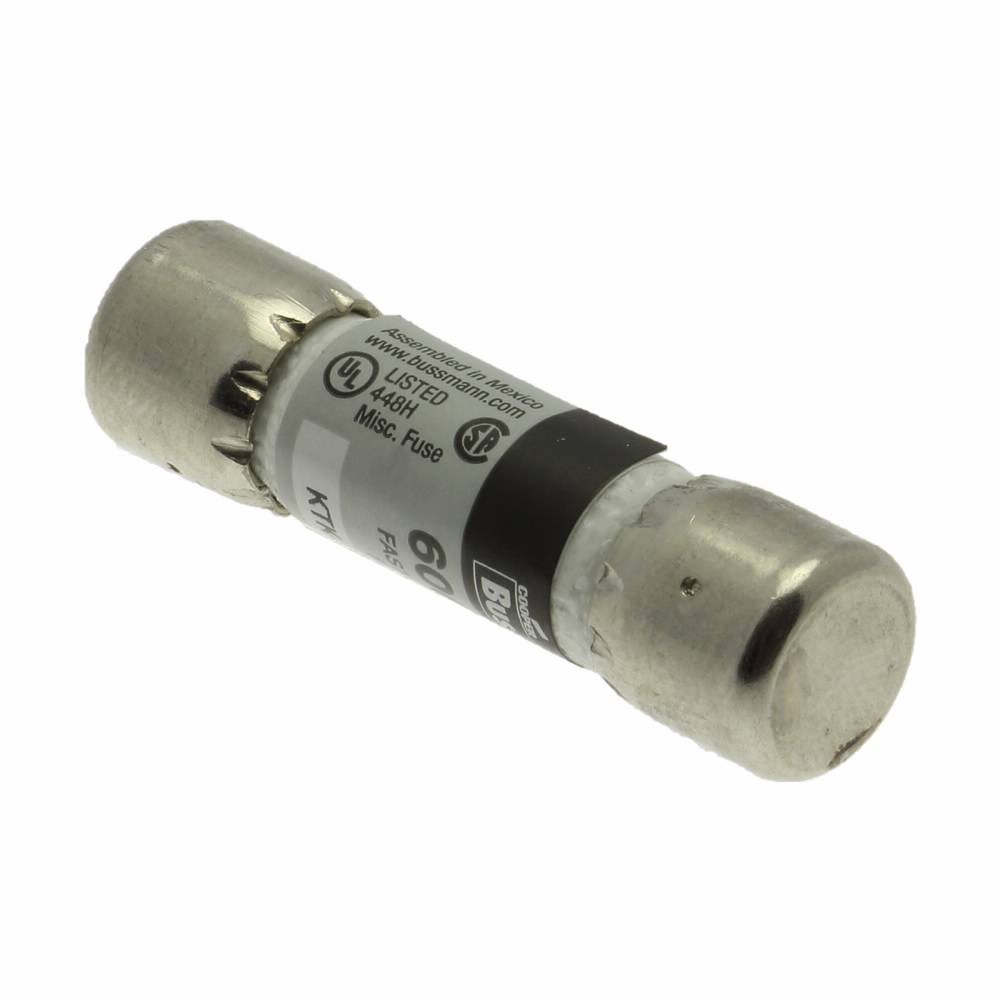

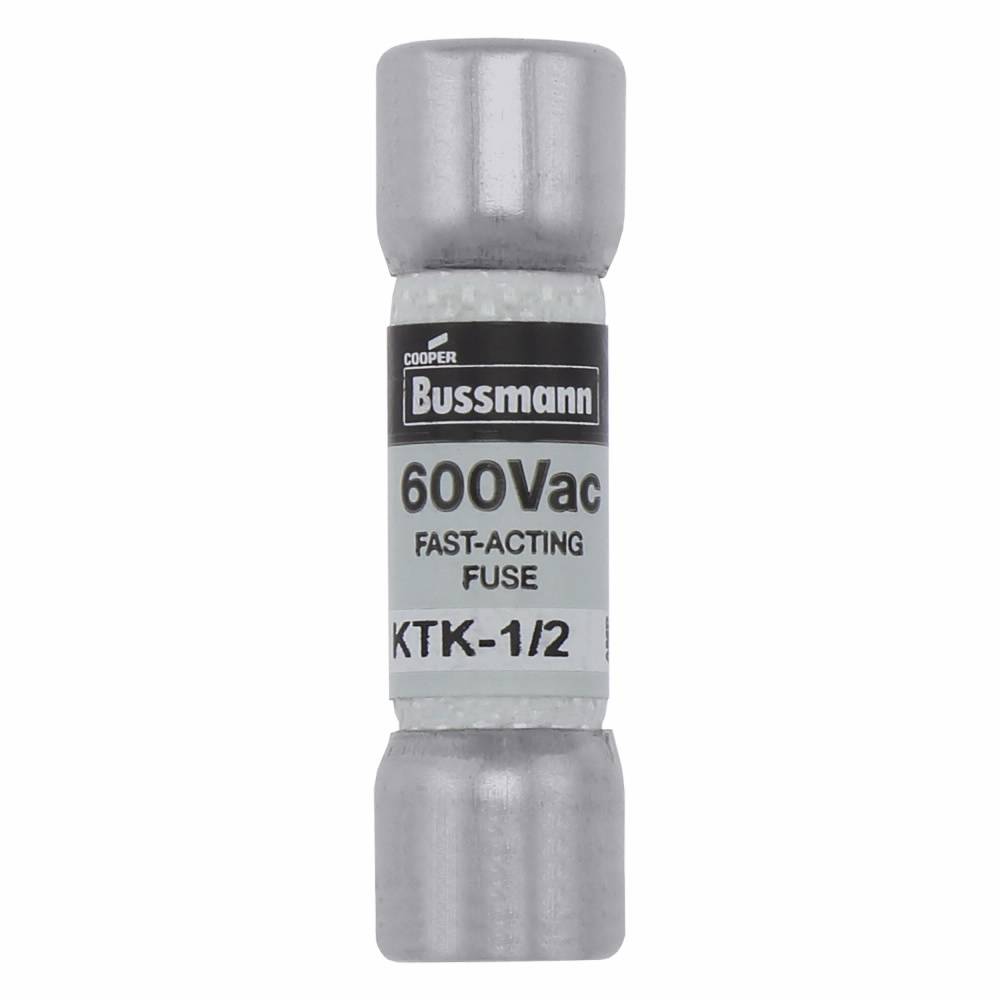

Bussmann Limitron™ KTK-1/2 Fast Acting Low Voltage Supplemental Fuse, 0.5 A, 600 VAC, 100 kAIC Interrupt, Class: Supplemental, Cartridge Body

Short Description

600 VAC, 1/2 A, Ferrule Terminal, Fast Acting, Midget Fuse

Bussmann Limitron™ Fuse, Fast Acting Low Voltage Supplemental, Series: KTK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 0.5 A, 600 VAC, 100 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, Black, 13/32 in Dia x 1-1/2 in L Body Size

MFG #: KTK-1/2

EECO #: BUKTK1/2

Brand: Bussmann
UPC #: 051712420068
Attributes
Features
Documents
Product Information
Attributes
Class
Supplemental
Color
Black
UNSPSC
39121609
Approval
UL 248-14, CSA C22.2, CE
Material
Melamine Glass
Application
Industrial Facilities and Factory Facilities, Safety and Security Systems, Control Circuits, Lighting Circuit Protection and Meter Circuit Applications
Mounting Type
Holder
Terminal Type
Ferrule End
Current Rating
1.2 Amp
Voltage Rating
600
Characteristics
Fast Acting
Interrupting Rating
100 Kiloamp (Symmetrical)
Type
Fast Acting Low Voltage Supplemental
Series
KTK
Diameter
13/32 Inch
Amperage Rating
0.5
Features
  • Fast acting for resistive loads
  • Nickel plated end caps
  • Low cost supplemental protection of 600 VAC or less non-inductive circuits
  • Upgrading to Low-Peak™ class CC product to reduce SKU investment and minimize potential arc flash hazards
  • Nickel plated bronze end caps
COBUSSE02784_1_2
COBUSSE03278_2_2_2_4
Qty Unit price
Ea
1 $18.56

Slqt
1 $18.56

Stpk
1 $185.60

Unit
1 $18.56
