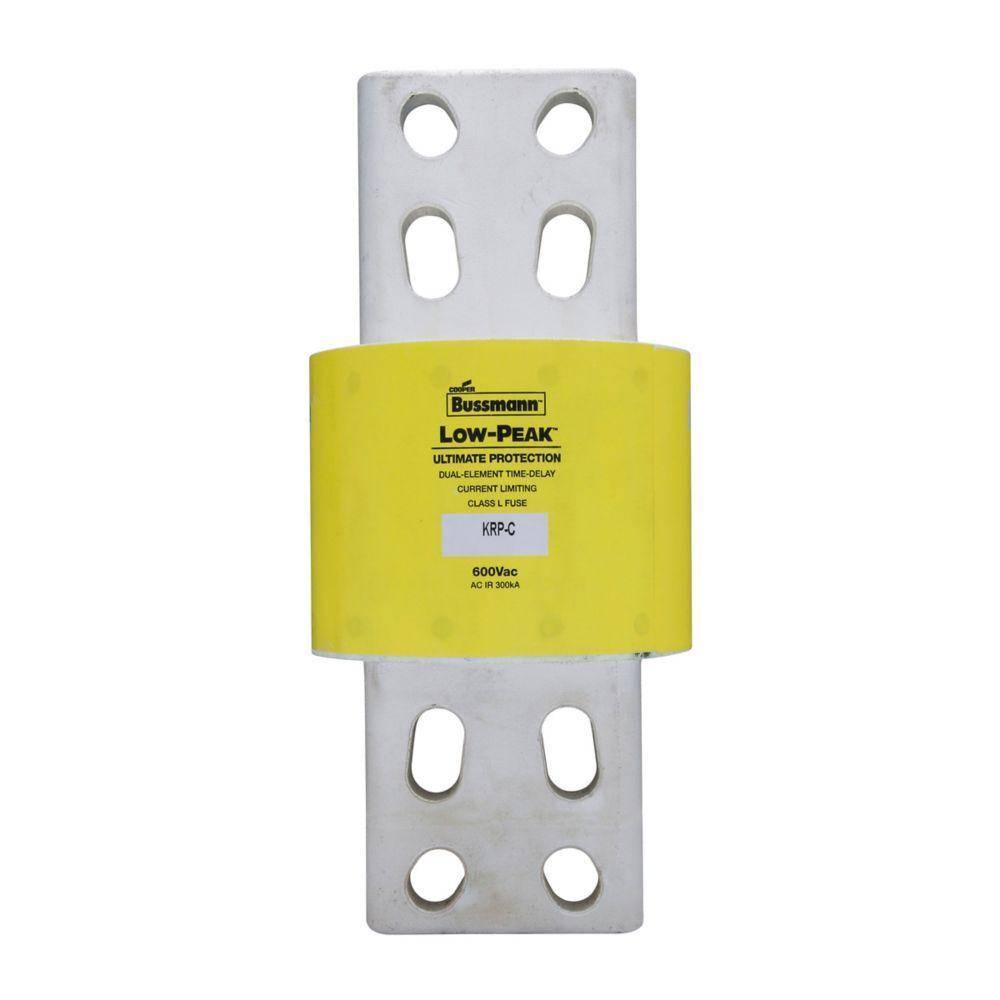

Bussmann Low-Peak™ KRP-C-2400SP Current Limiting Time Delay Fuse, 2400 A, 600 VAC, 300 kAIC Interrupt, L Class, Cartridge Body

Short Description

Eaton Bussmann series Low-Peak™ ultimate protection fuses are the industry's only UL listed and CSA Certified fuses with a 300 kA interrupting rating, providing 50% more protection than any other listed fuse. The high interrupting rating allows for simple, worry free installation in virtually any application.

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: KRP-C, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2400 A, 600 VAC, 300 kAIC Interrupt, Class: L, 4 s at 500% Response, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Melamine, 5 in Dia x 10-3/4 in L Body Size
MFG #: KRP-C-2400SP

EECO #: BUKRPC2400SP

Brand: Bussmann
UPC #: 051712178488
Attributes
Features
Documents
Product Information
Attributes
Class
L
UNSPSC
39121626
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Large Machinery Disconnects and Power Panelboards Applications
Mounting Type
Bolted-On
Response Time
4 s at 500%
Terminal Type
Bolted Blade End
Voltage Rating
600
Type
Current Limiting Time Delay
Series
KRP-C
Amperage Rating
2400
Features
  • Fast short circuit protection with time delay performance provide ultimate protection
  • Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
  • Time delay for close sizing load
  • Current limiting action of the fuse generally affords considerable reduction in bus bracing
  • All purpose silver linked fuse for both overload and short circuit protection for high capacity systems
  • O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
  • High grade silica sand filler accelerates response of fuse to short circuits by having quenching effect on the fuse arc
  • 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
  • Silver plated end bell
Bussmann_KRP_C_2400SP_Specification_Sheet
