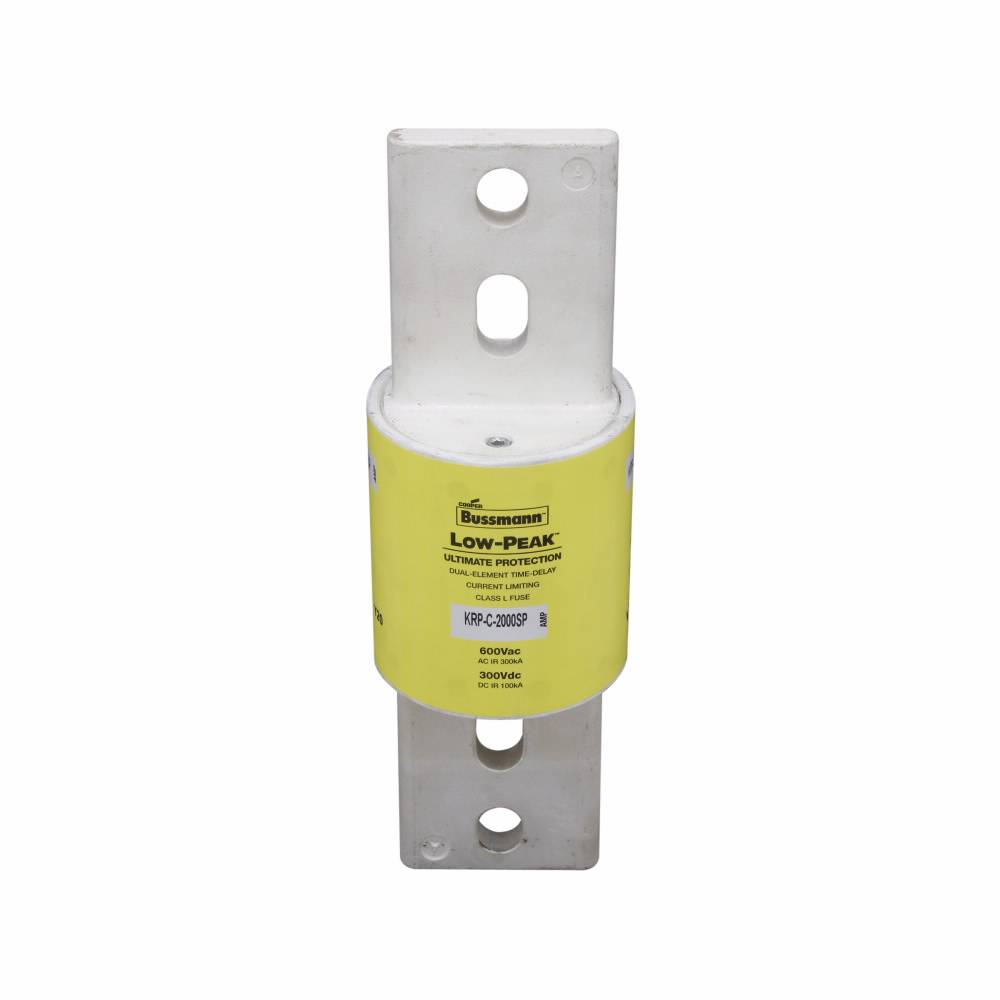

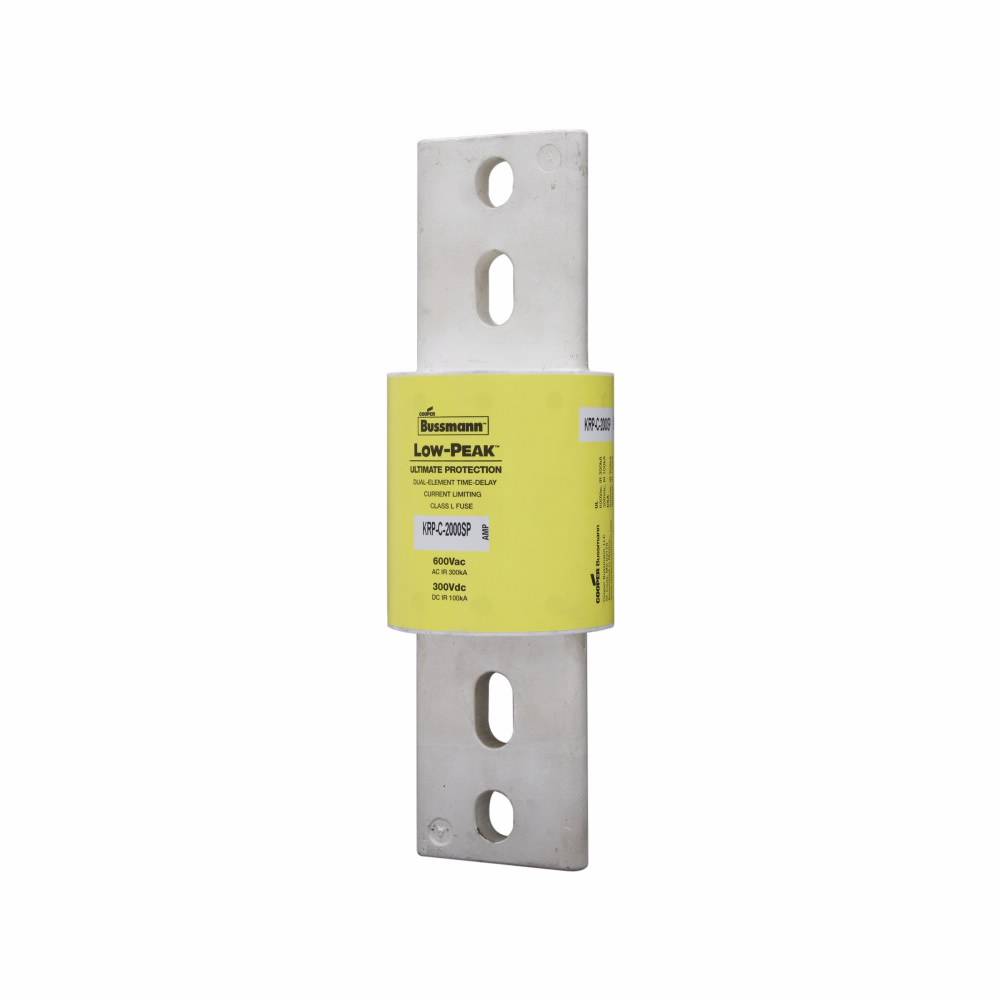

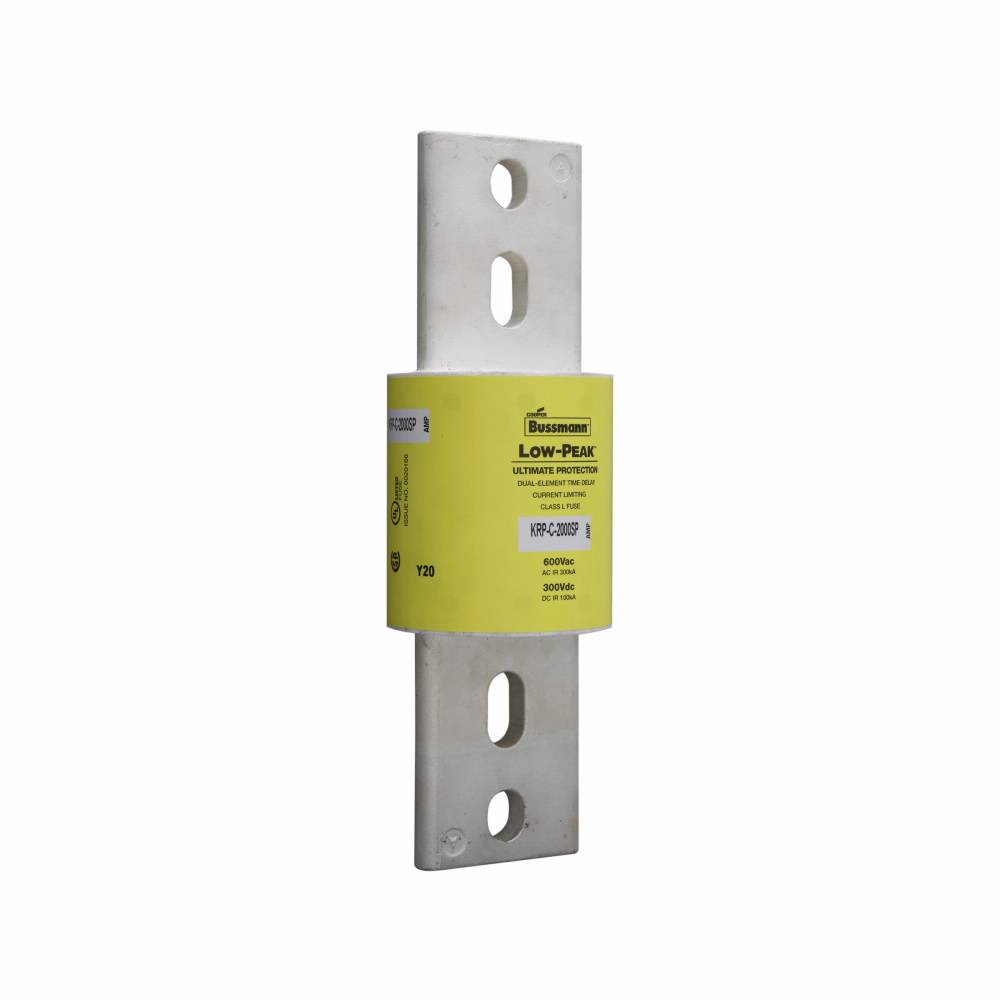

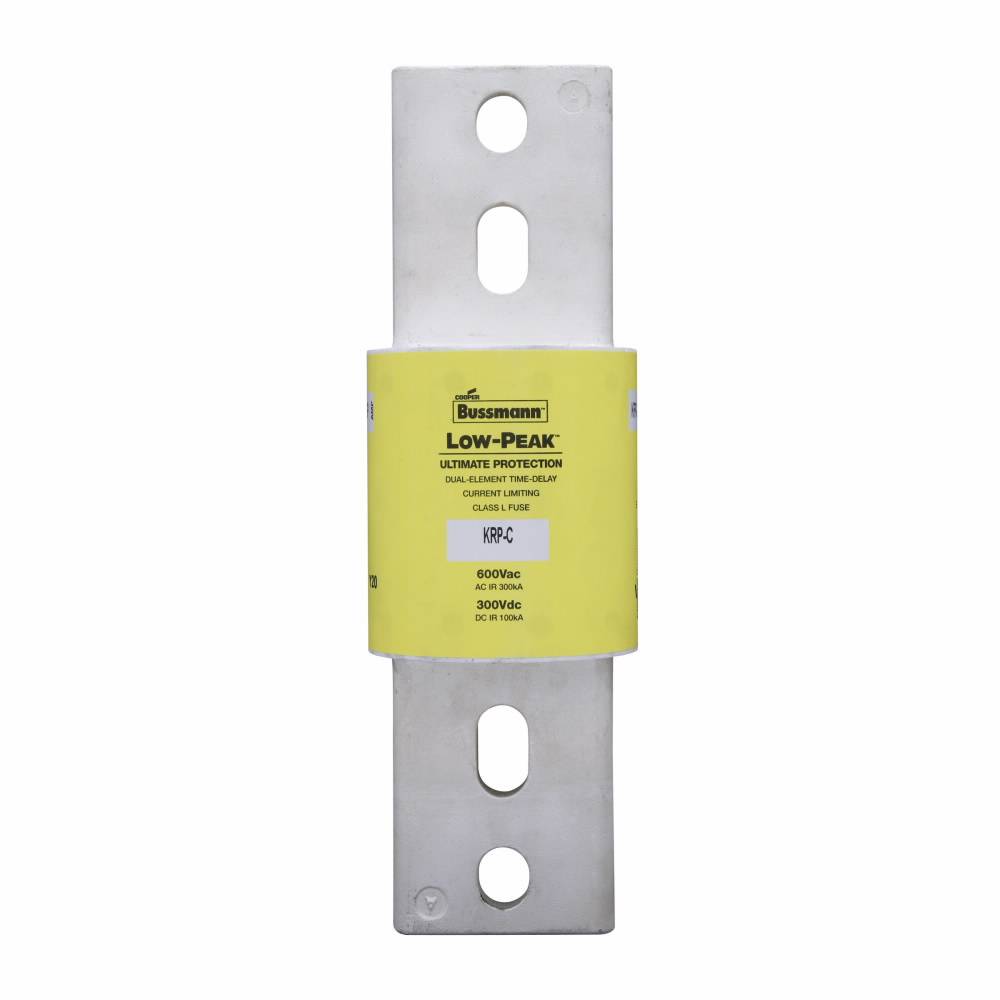

Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body
Share Share Print Print
Eaton

Bussmann Low-Peak™ KRP-C-2000SP KRP-C-SP Current Limiting Time Delay Fuse, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, L Class, Cartridge Body

Short Description

Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering unsurpassed dual-element, current-limiting, time-delay performance and interrupting ratings of 300kA RMS Sym. Complementing the Low-Peak family are our Limitron products offering both Fast-acting and economical time-delay performance in our KTU, KLU, and KRP-CL products

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: KRP-C-SP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2000 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: L, 4 s at 500% Response, Bolted Blade Terminal, Holder Mount, Cartridge Body, Dual Element, Melamine Glass Tube, 3-1/2 in Dia x 10-3/4 in L Body Size
MFG #: KRP-C-2000SP

EECO #: BUKRPC2000SP

Brand: Bussmann
UPC #: 051712605205
Attributes
Features
Documents
Product Information
Attributes
Class
L
UNSPSC
39121626
Material
Melamine Glass Tube
Application
Large Distribution Switchboards, Large Machinery Disconnects and Power Panelboards, Safety and Security Systems
Mounting Type
Holder
Response Time
4 s at 500%
Terminal Type
Bolted Blade
Voltage Rating
600 VAC/300 VDC
Type
Current Limiting
Series
KRP-C-SP
Amperage Rating
2000
Features
  • Time delay of s seconds at 5 times rating allows closer sizing on large motor loads combined with class L current limitation
  • Selective co-ordination ratio of 2:1 (within Low-Peak™ fuse family) prevents electrical shutdowns from extending beyond the failed circuit
  • interrupt rating of 300 kA rms symmetrical provides adequate ratings without obsolescence for all electrical systems, big or small
  • Quality construction using high grade materials provides lower wattage loss and operating temperatures with superior arc quenching during current-limiting action
  • Silver plated end bell
  • 4 s maximum at 500% of ampere rating response time
