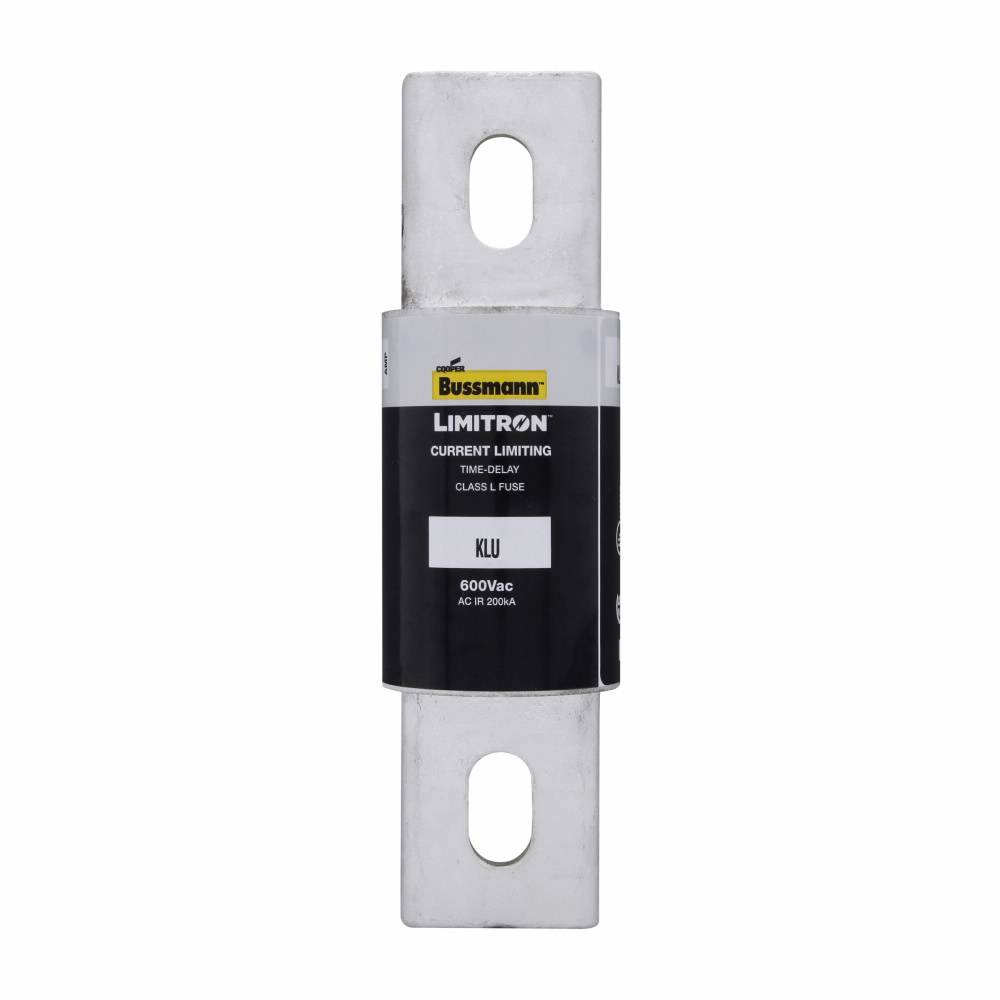

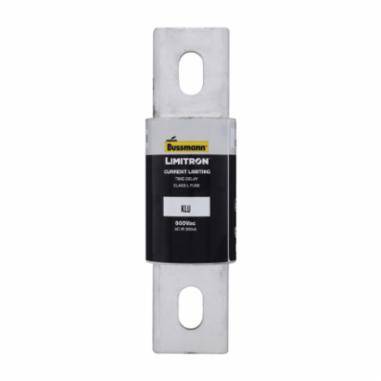

Bussmann Limitron™ KLU-700 Current Limiting Time Delay Fuse, 700 A, 600 VAC, 200 kA Interrupt, L Class, Cartridge Body

Short Description

Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering unsurpassed dual-element, current-limiting, time-delay performance and interrupting ratings of 300kA RMS Sym. Complementing the Low-Peak family are our Limitron products offering both Fast-acting and economical time-delay performance in our KTU, KLU, and KRP-CL products

Bussmann Limitron™ Time Delay Fuse, Current Limiting, Series: KLU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 700 A, 600 VAC, 200 kA Interrupt, Class: L, 5 s at 500% Response, Bolted Blade Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Fiberglass/Melamine Glass Tube, 2.5 in Dia x 8.63 in L Body Size
MFG #: KLU-700

EECO #: BUKLU700

Brand: Bussmann
UPC #: 051712135047
Attributes
Features
Documents
Product Information
Attributes
Class
L
UNSPSC
39121626
Material
Fiberglass/Melamine Glass Tube
Application
General Purpose, Large Distribution Switchboards, Large Machinery Disconnects and Power Panelboards Applications, Safety and Security Systems
Mounting Type
Bolted-On
Response Time
5 s at 500%
Terminal Type
Bolted Blade
Voltage Rating
600
Type
Current Limiting
Series
KLU
Amperage Rating
700
Features
  • Copper links result in a minimum 5 s time delay at 500% ampere rating
  • Current limiting - provides component short circuit protection
  • 200 kA interrupting rating complies with NEC section 110.9/230.65 in today's large capacity systems
  • Selective co-ordination (blackout prevention)
KLU_1600_Catalog_01
KLU_700_Specification_Sheet_01
Bussmann_KLU_700_Specification_Sheet
Bussmann_KLU_601_User_Manual_CA
