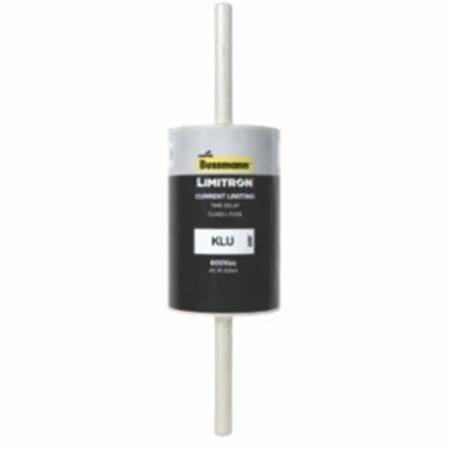

Bussmann Limitron™ KLU-650 Current Limiting Time Delay Fuse, 650 A, 600 VAC, 200 kA Interrupt, L Class, Cartridge Body

Short Description

EATON Bussmann series Limitron™ fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses.

Bussmann Limitron™ Time Delay Fuse, Current Limiting, Series: KLU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 650 A, 600 VAC, 200 kA Interrupt, Class: L, 5 s at 500% Response, Bolted Blade Terminal, Bolted-On Mount, Cartridge Body, Single Element, Fiberglass/Melamine Glass Tube, 2.5 in Dia x 8.63 in L Body Size

MFG #: KLU-650

EECO #: BUKLU650

Brand: Bussmann
UPC #: 051712135030
Attributes
Features
Documents
Product Information
Attributes
Class
L
UNSPSC
39121626
Approval
UL 248-10, CSA, CE
Material
Fiberglass/Melamine Glass Tube
Application
Large Distribution Switchboards, Large Machinery Disconnects and Power Panelboards, Safety and Security Systems
Mounting Type
Bolted-On
Response Time
5 s at 500%
Terminal Type
Bolted Blade
Current Rating
650 Amp
Voltage Rating
600
Characteristics
5 Second Time Delay (at 500 Percent Rated Load)
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Current Limiting
Series
KLU
Diameter
2.4 Inch
Amperage Rating
650
Features
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Copper links result in a minimum 5 s time delay at 500% ampere rating
