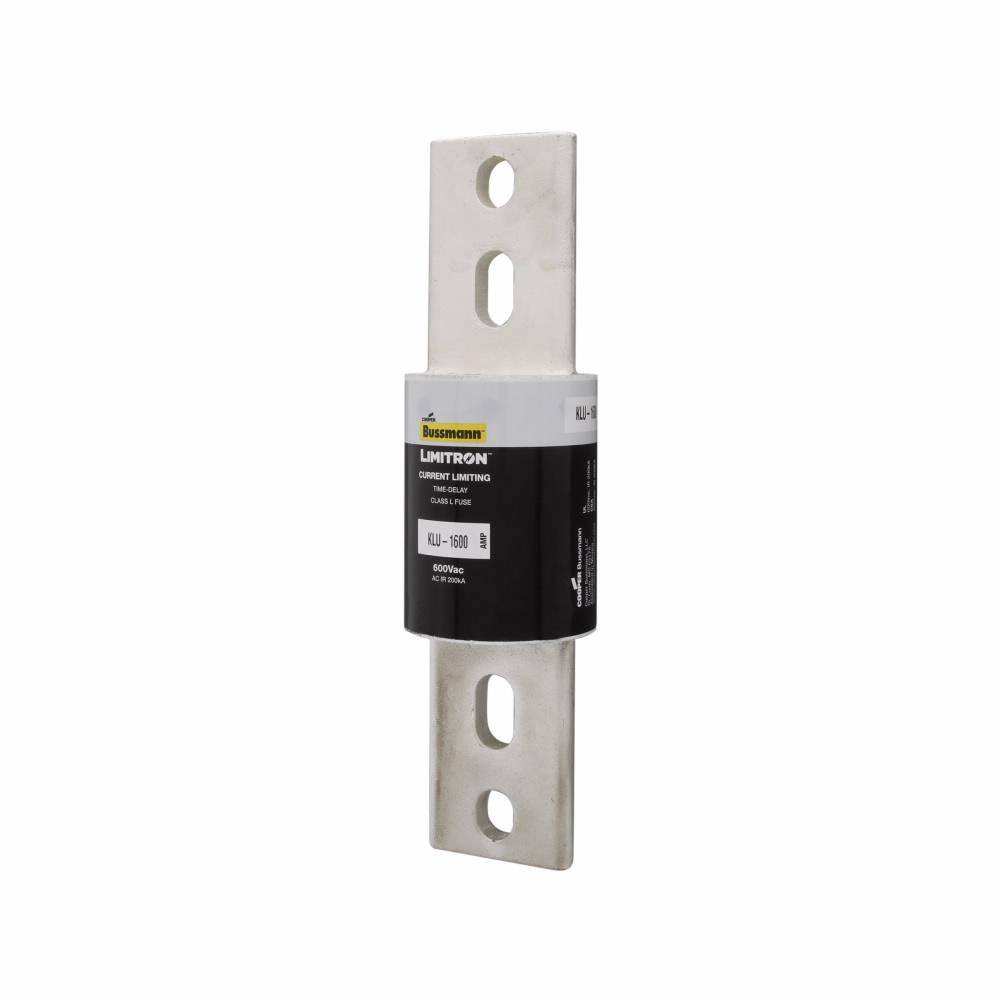

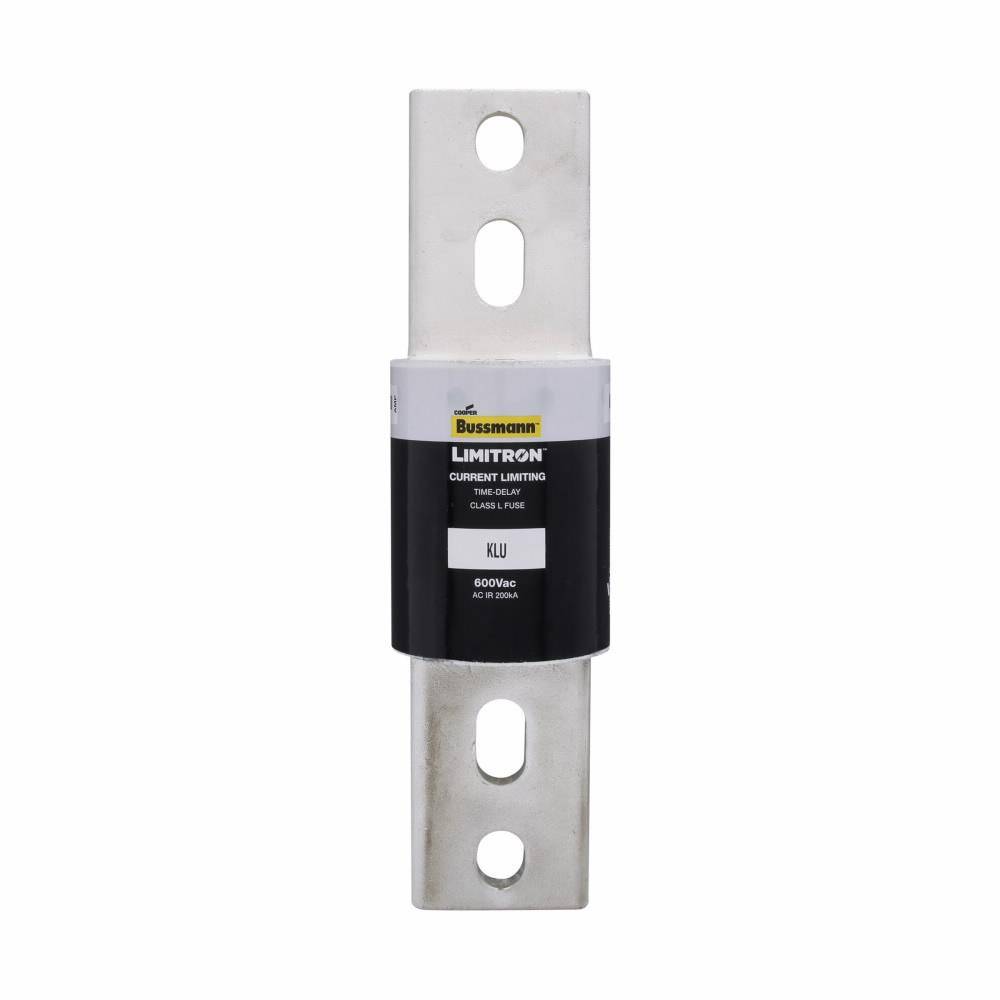

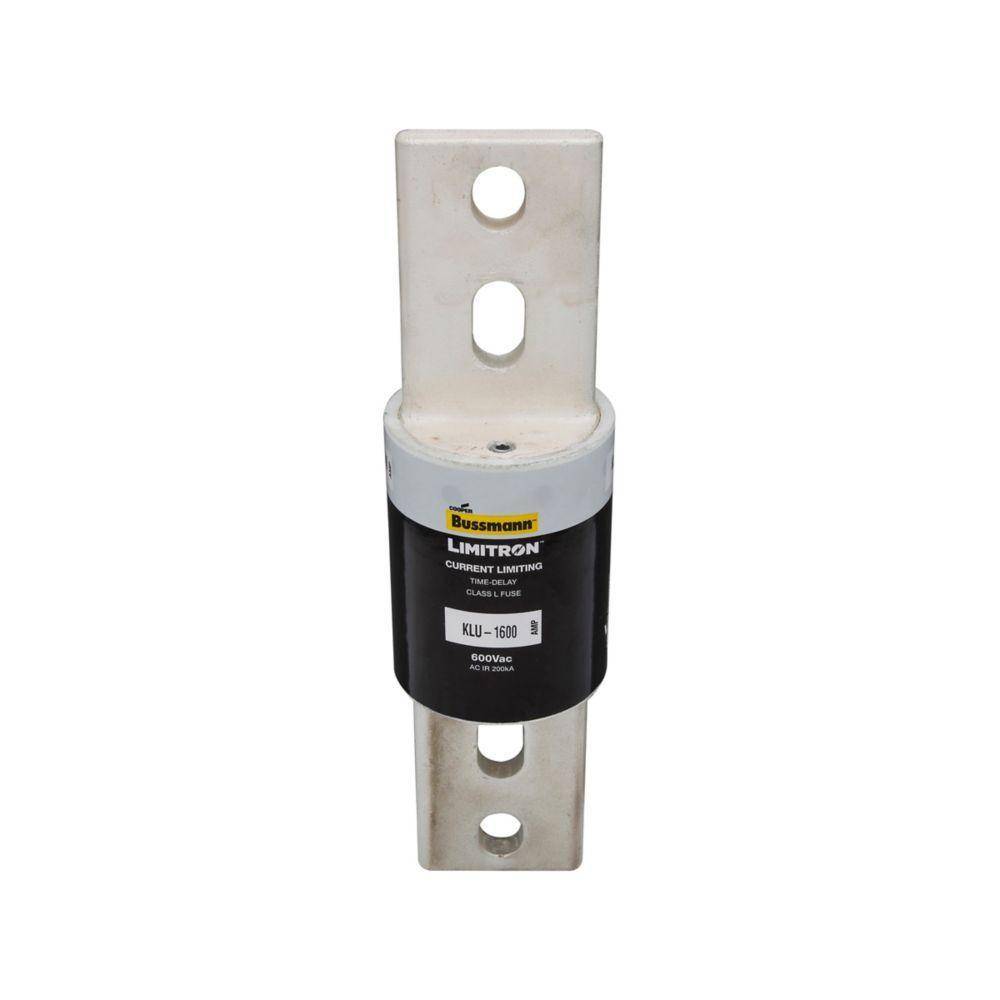

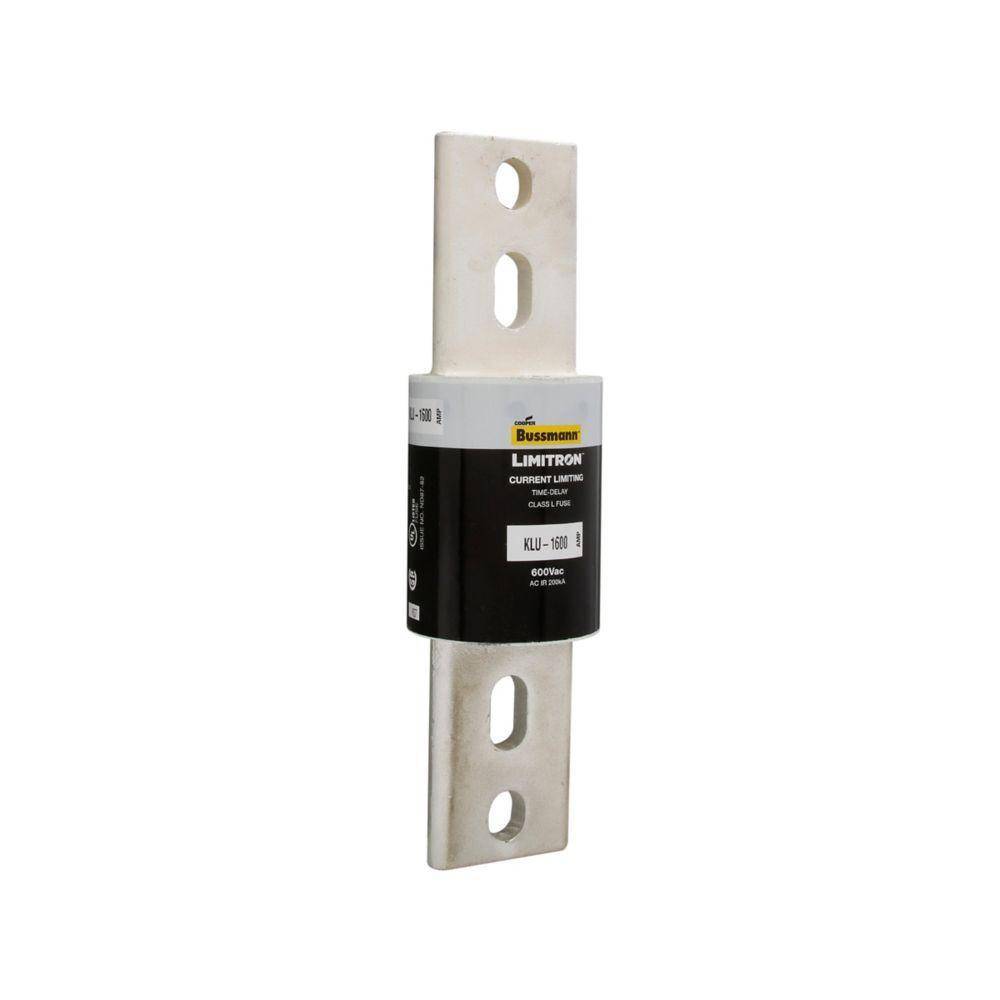

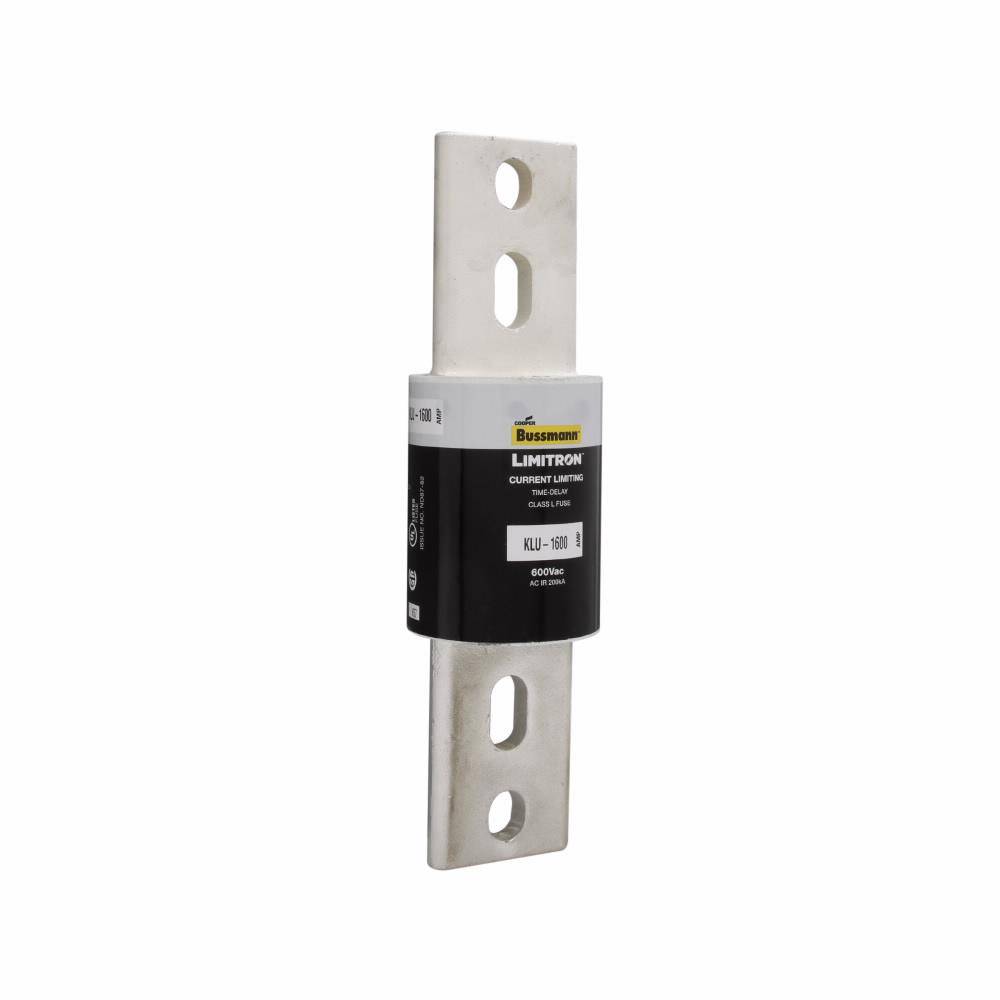

Bussmann Limitron™ KLU-1600 Current Limiting Time Delay Fuse, 1600 A, 600 VAC, 200 kA Interrupt, L Class, Cartridge Body

Short Description

EATON Bussmann series Limitron™ fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses.

Bussmann Limitron™ Time Delay Fuse, Current Limiting, Series: KLU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1600 A, 600 VAC, 200 kA Interrupt, Class: L, 5 s at 500% Response, Bolted Blade Terminal, Bolted-On Mount, Cartridge Body, Single Element, Fiberglass/Melamine Glass Tube, 3 in Dia x 10-3/4 in L Body Size
MFG #: KLU-1600

EECO #: BUKLU1600

Brand: Bussmann
UPC #: 051712135092
Attributes
Features
Documents
Product Information
Attributes
Class
L
UNSPSC
39121626
Material
Fiberglass/Melamine Glass Tube
Application
Large Distribution Switchboards, Large Machinery Disconnects and Power Panelboards, Safety and Security Systems
Mounting Type
Bolted-On
Response Time
5 s at 500%
Terminal Type
Bolted Blade
Voltage Rating
600
Type
Current Limiting
Series
KLU
Amperage Rating
1600
Features
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Copper links result in a minimum 5 s time delay at 500% ampere rating
