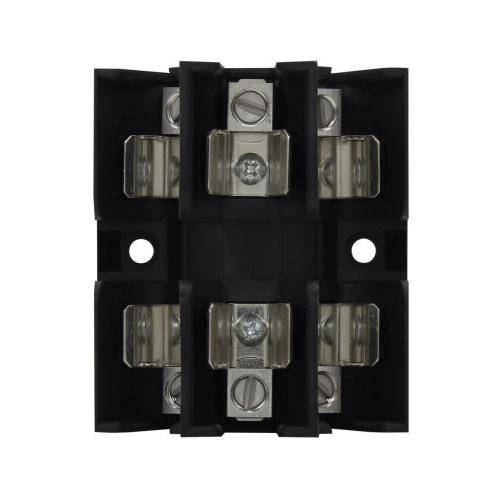

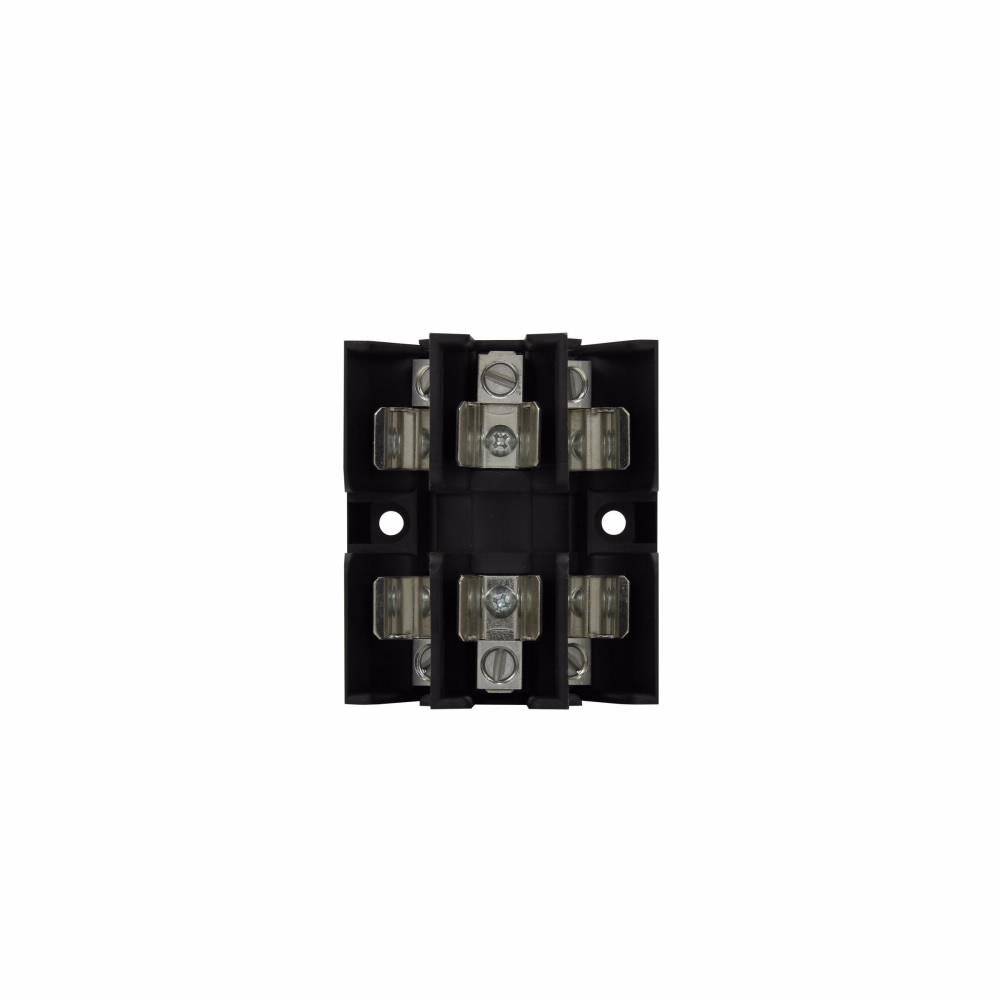

PrintEdison JP60030-3CR Pyramid/Open Style Fuse Block, 600 VAC/VDC, 30 A, J Class, 14 to 2 AWG Wire, 3 Poles
Short Description
Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
Edison Fuse Block, Pyramid/Open Style, Series: JP600, 600 VAC/VDC, 30 A, 3 Poles, Class: J, Fuse Holder Code: Z, Box Lug/Reinforced Spring, 14 to 2 AWG Wire, Panel Mount, 0.88 in Fuse Length, 0.41 in Fuse Dia, For Use With: Low-Peak™ LPJ and Limitron™ JKS Fuse, Thermoplastic, Black, 3.75 in L x 3.29 in W x 3.06 in H
MFG #:
JP60030-3CR
EECO #: BUJP600303CR
Brand:
Edison
UPC #:
051712434164
Edison JP60030-3CR Pyramid/Open Style Fuse Block, 600 VAC/VDC, 30 A, J Class, 14 to 2 AWG Wire, 3 Poles
