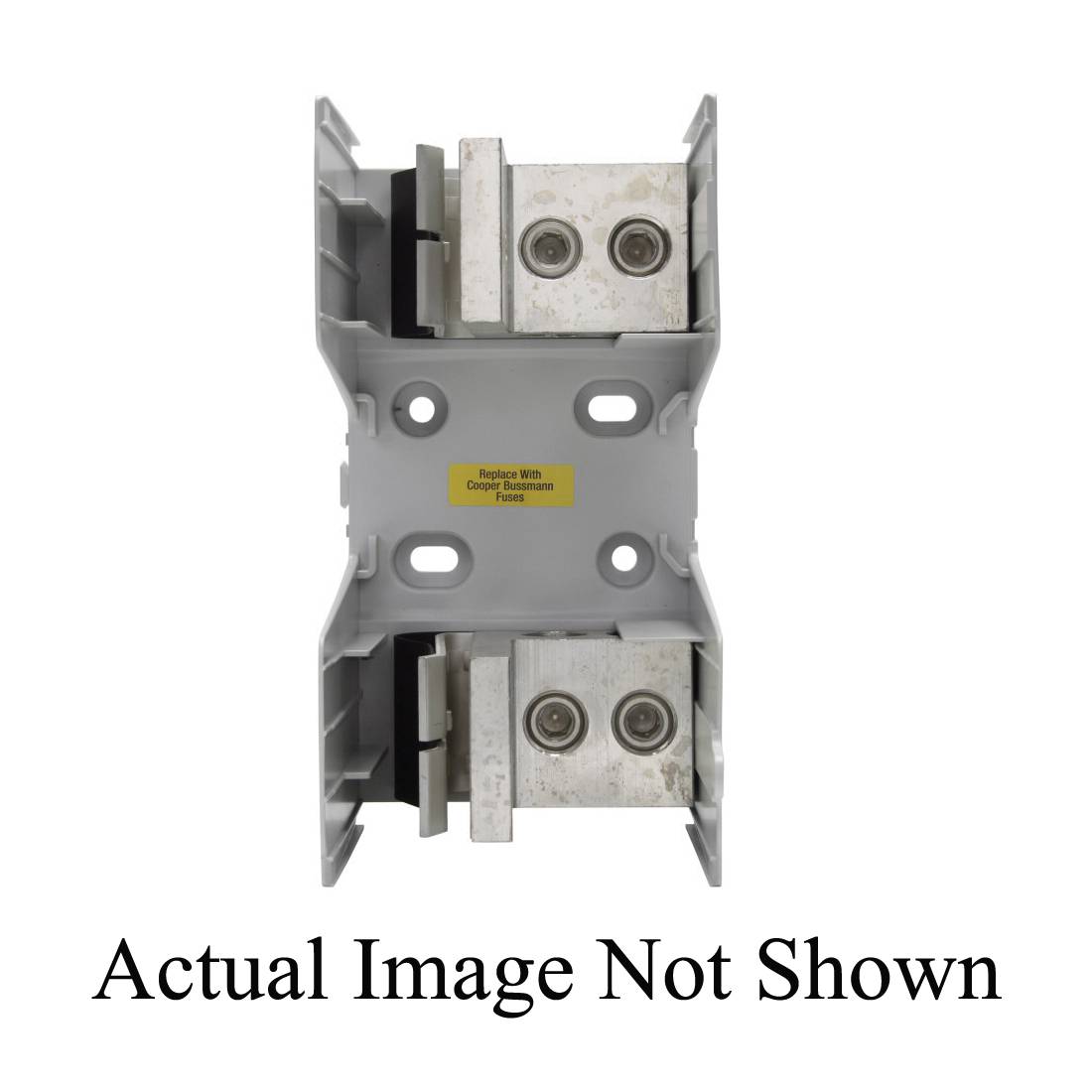

Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole
Share Share Print Print
Eaton

Edison JM60600-1CR JM600 Fuse Block, 600 VAC, 450 to 600 A, J Class, 4 AWG to 500 kcmil Wire, 1 Pole

Short Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Series: JM600, 600 VAC, 450 to 600 A, 1 Poles, Class: J, Fuse Holder Code: AE, Box Lug, 4 AWG to 500 kcmil Wire, Panel Mount, 8 in Fuse Length, 2-1/2 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse, Thermoplastic, 9.3 in L x 4.8 in W x 6 in H

MFG #: JM60600-1CR

EECO #: BUJM606001CR

Brand: Edison
UPC #: 051712391092
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
4 AWG to 500 kcmil
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Panel
Terminal Type
Box Lug
Voltage Rating
600
Connection Type
Box Lug
Number Of Poles
1
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt
Type
Modular
Series
JM600
Clip Type
Spring Reinforced
Fuse Type
Class J
Dimensions
9.3 in L x 4.8 in W x 6 in H
Amperage Rating
450 to 600
Fuse Current Rating
450 to 600 Amp
Suitable For Use With
Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • (2) 4 AWG to 500 kcmil copper/aluminum wire
COBUSSE02627_9_17_9_18
COBUSSE02627_9_18
Bussmann_CVR_J_60600_Specification_Sheet

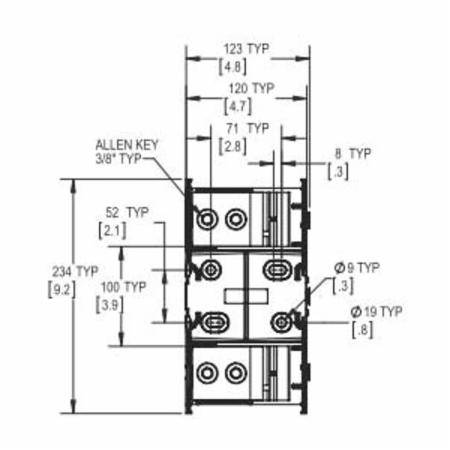

Bussmann_JM60600_1CR_Technical_Drawing
