Eaton

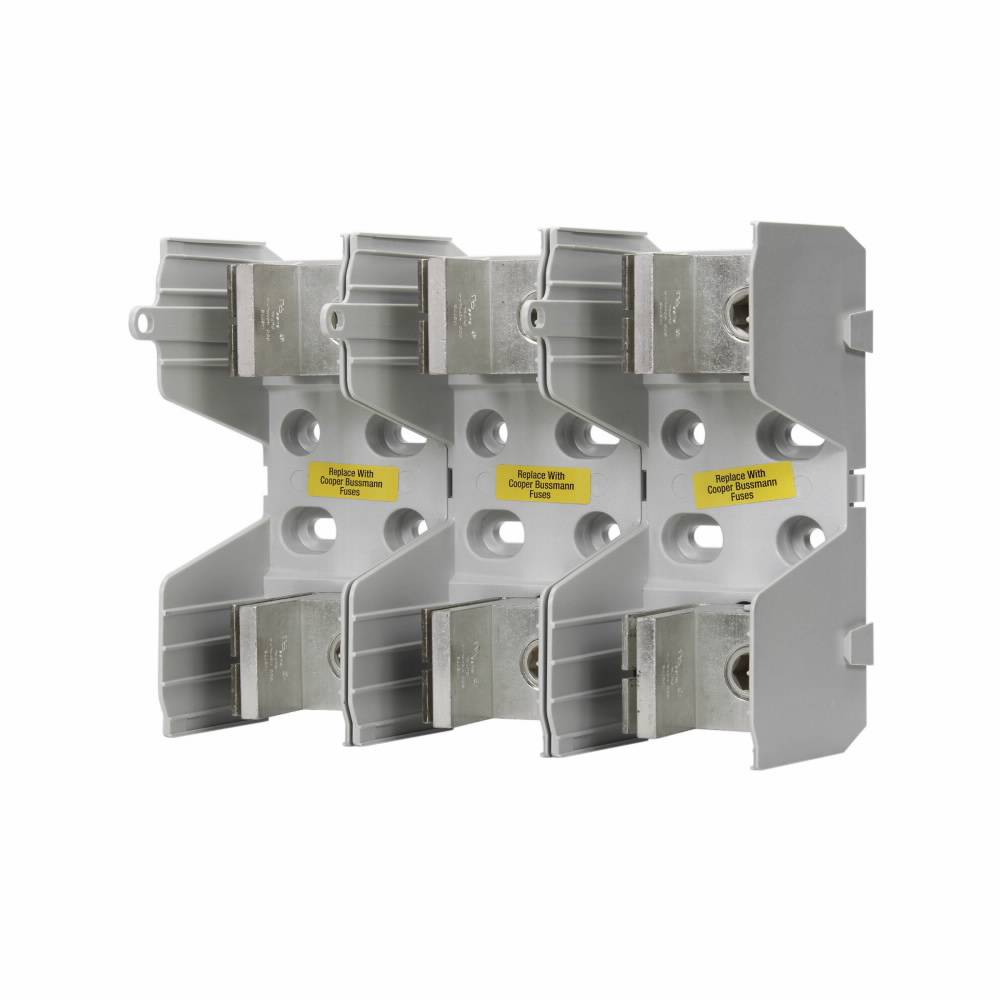

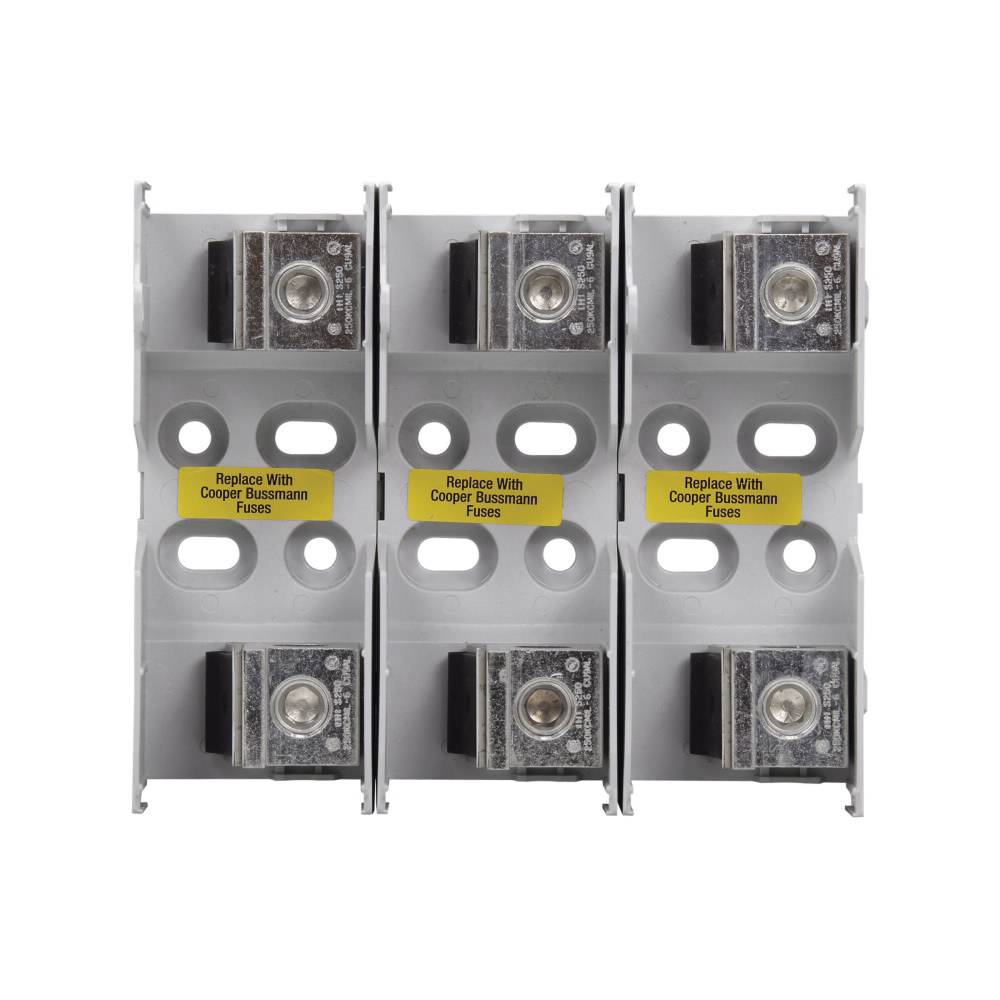

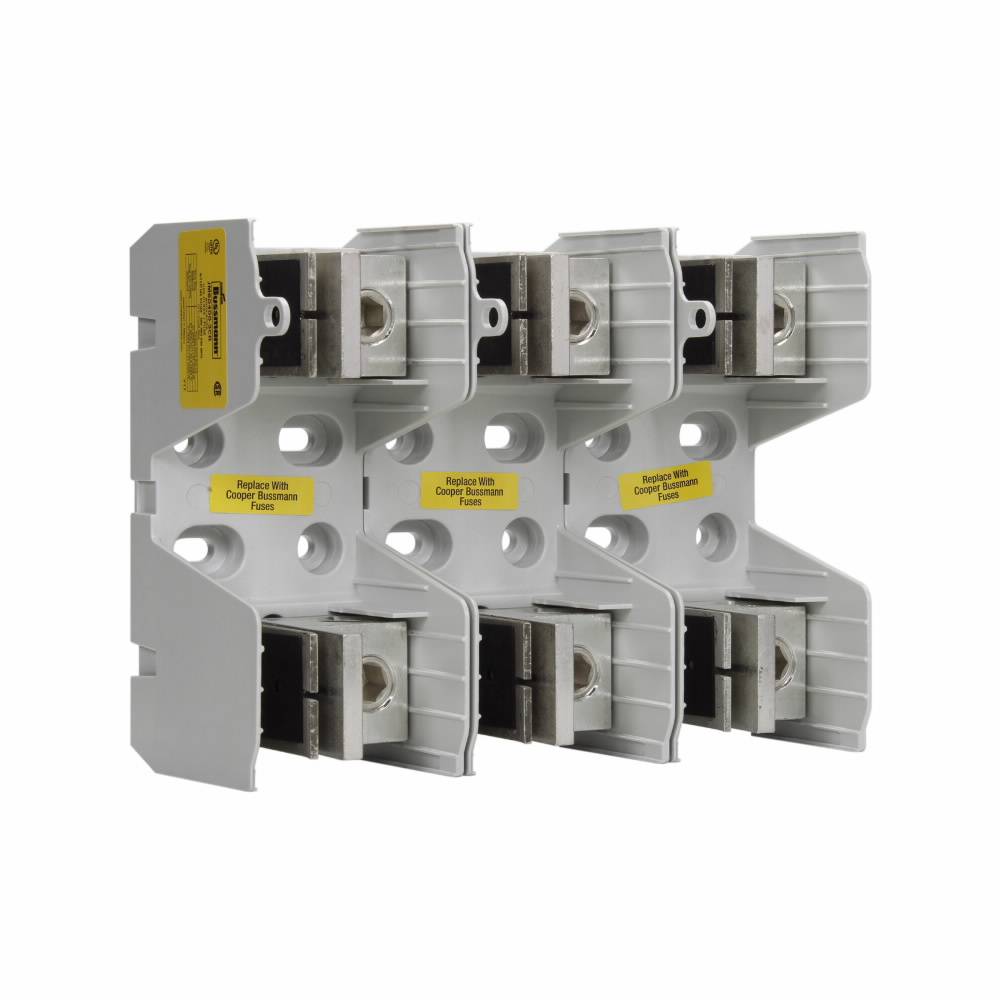

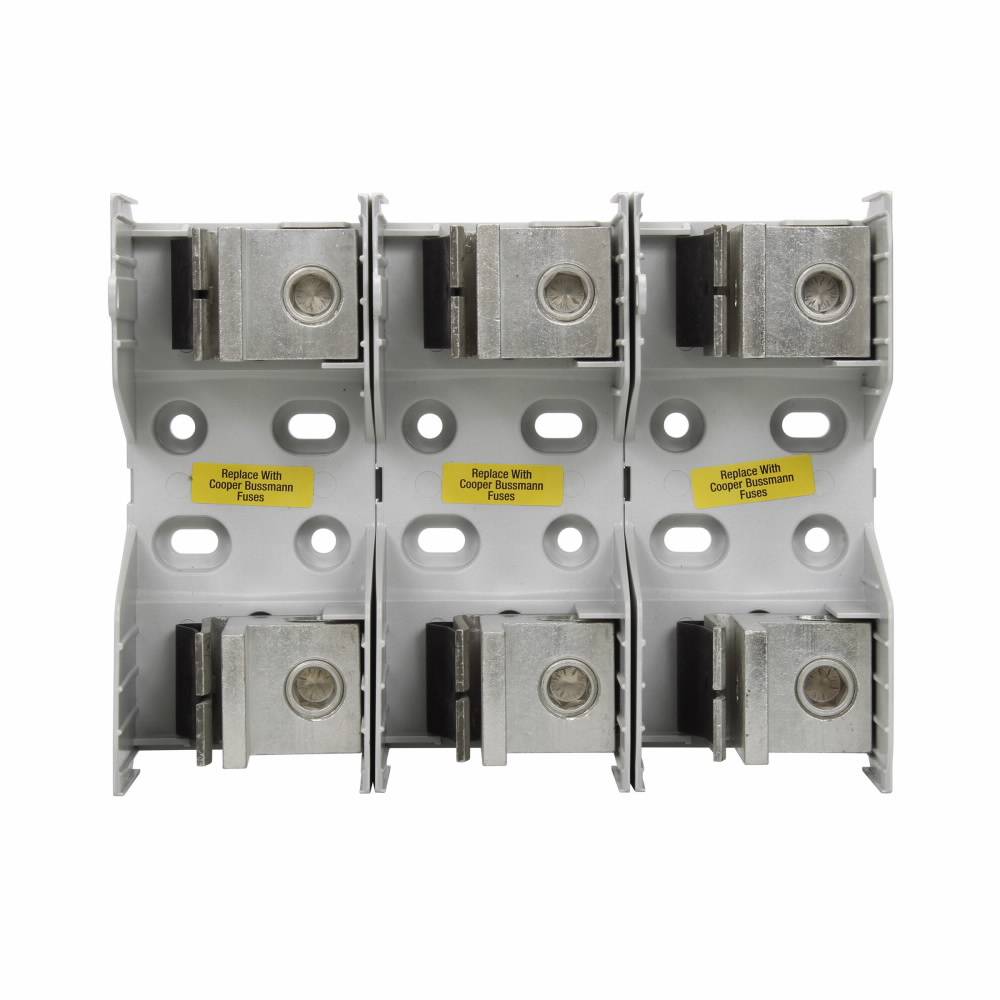

Bussmann JM60400-3CR Modular Fuse Block, 600 V, 225 to 400 A, Class: J, 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded Wire, 3 Poles

Short Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 3 Pole, Class: J, Knife Blade End, 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 8.7 in L x 10.4 in W x 4.9 in H

MFG #: JM60400-3CR

EECO #: BUJM604003CR

Brand: Bussmann
UPC #: 051712387057
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Approval
UL, CSA, CE
Material
Thermoplastic
Wire Size
600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Hole
Terminal Type
Box Lug
Voltage Rating
600
Connection Type
Knife Blade End
Number Of Poles
3
Temperature Rating
-40 to 120
Fuse Voltage Rating
600 Volt
Type
Modular
Series
JM Series
Clip Type
Spring Reinforced
Fuse Type
Class J
Dimensions
8.7 in L x 10.4 in W x 4.9 in H
Amperage Rating
225 to 400
Fuse Current Rating
225 to 400 Amp
Suitable For Use With
Knife Blade Cartridge Fuse
Features
  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial power circuits
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
  • Standard fuse clip reinforcing springs enhance electrical contact
Bussmann_JM60400_1CR_Technical_Drawing
COBUSSE02627_9_17_9_18
COBUSSE02627_9_18
Bussmann_KTS_R_75_Catalog
Qty Unit price
Ea
1 $778.25

Slqt
1 $778.25

Stpk
1 $778.25

Unit
1 $778.25
