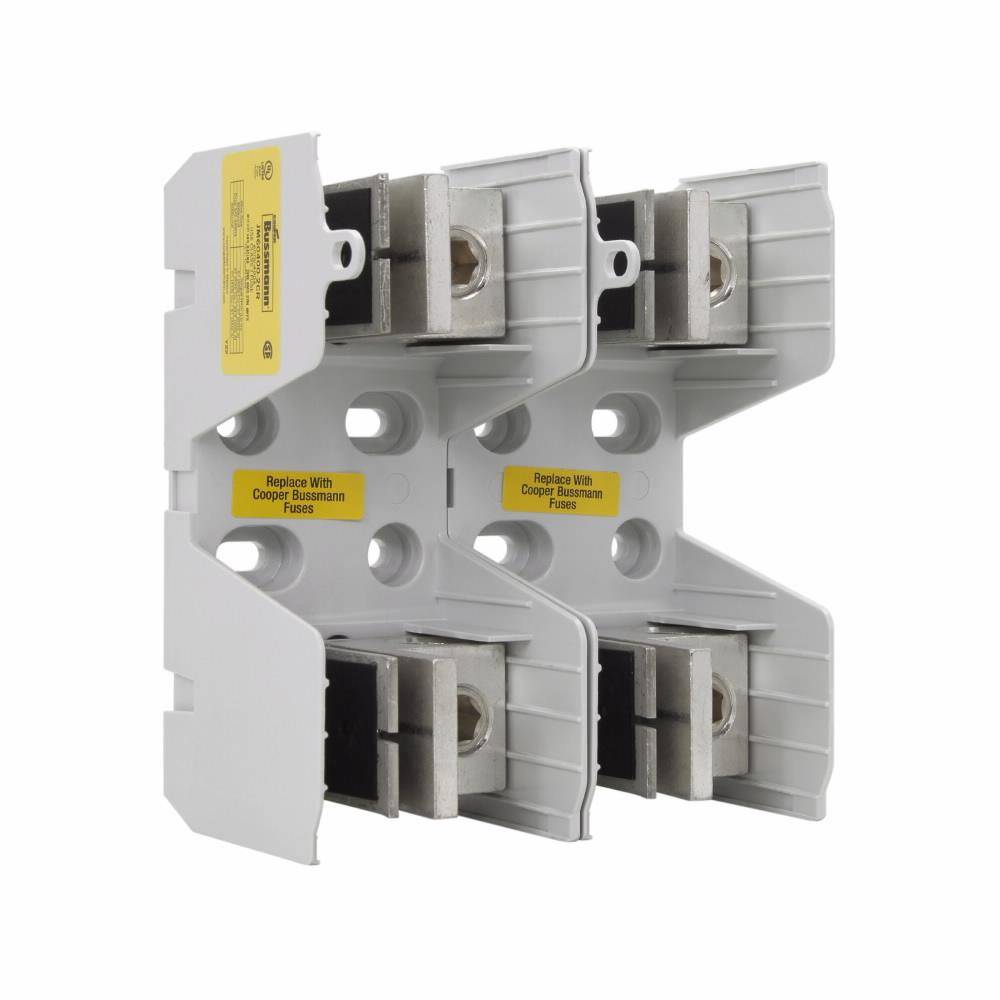

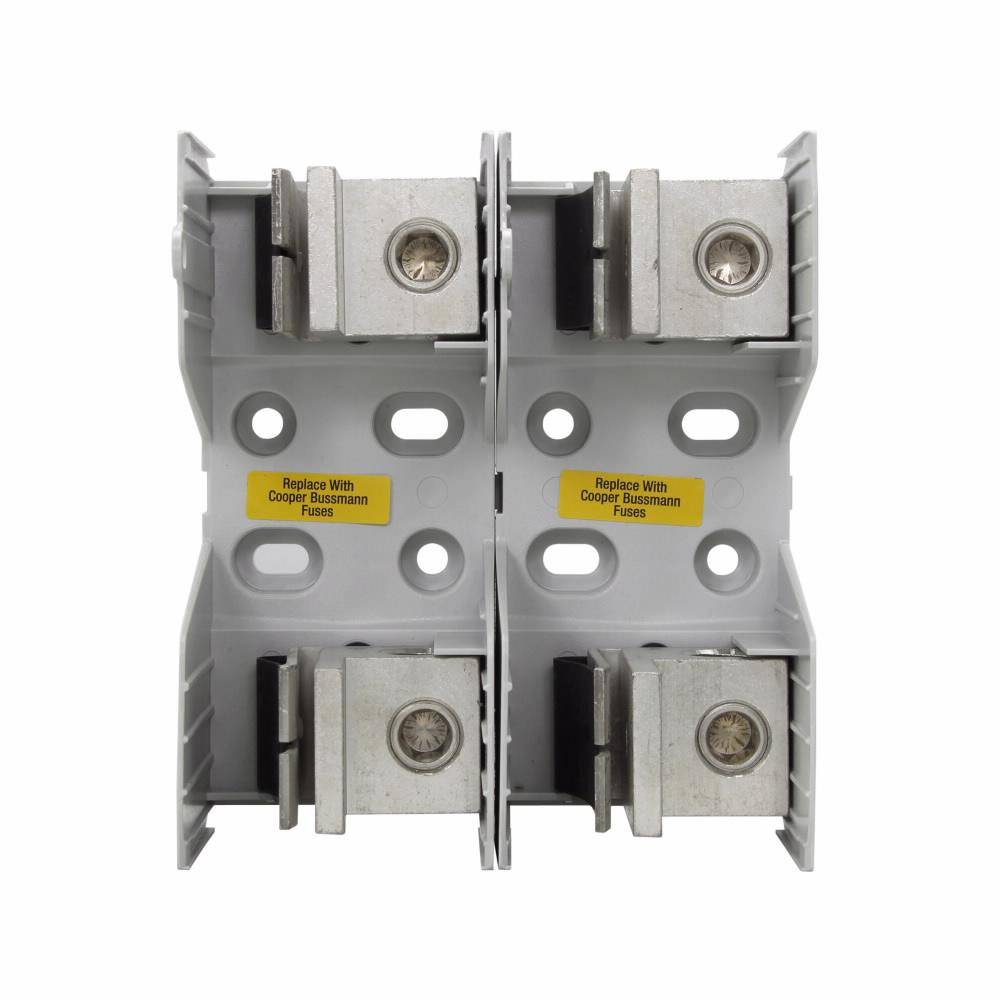

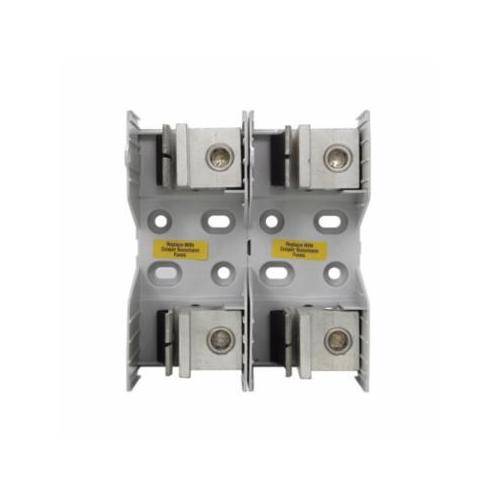

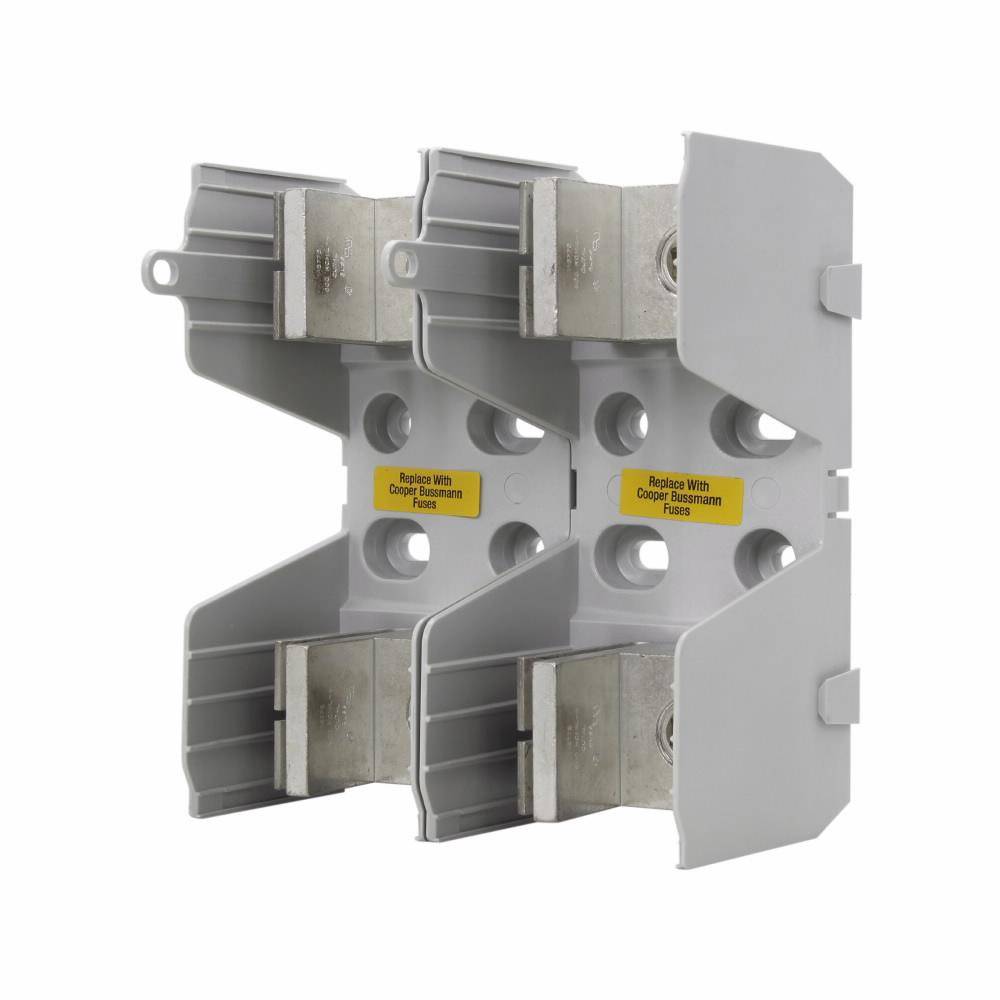

PrintEdison JM60400-2CR Knife Blade Fuse Block, 600 VAC, 400 A, Class: J, 4 AWG to 500 kcmil Wire, 2 Poles
Knifeblade fuse blocks from 100 to 600 A feature phase barriers between poles for additional safety with up to four mounting holes per pole increase installation flexibility. All knifeblade blocks meet UL creep and clearance requirements for Industrial Power Circuits (UL 508 and UL 845). Additionally, the 200 to 600 A blocks meet the higher UL creep and clearance requirements for Power distribution Standards (UL 98, UL 67, UL 489, UL 891 and UL 869A) All blocks have optional IP20 finger safe high clarity, see through covers for inspecting wire terminations or thermography measurements without removal. All covers enhance safety by featuring probe holes for easier, safer testing and a lockout/tagout capability. These covers also have optional open fuse indication to speed troubleshooting. Easy circuit identification is available for 30 and 60 A blocks and covers with universal marker labels.
Edison Fuse Block, Knife Blade, Series: JM Series, 600 VAC, 400 A, 2 Pole, Class: J, 4 AWG to 500 kcmil Wire, DIN Rail/Panel Mount, -40 to 120 deg C, Thermoplastic, 7.9 in L x 7.1 in WEECO #: BUJM604002CR
