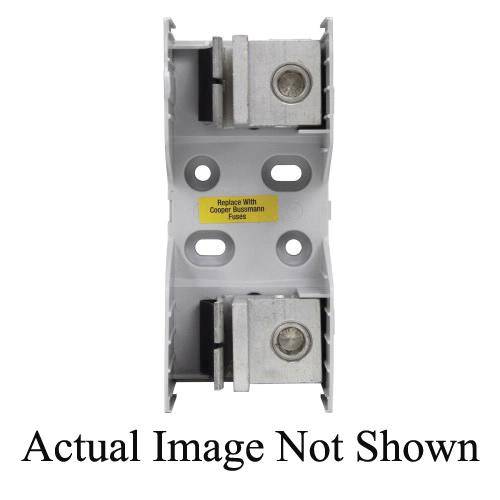

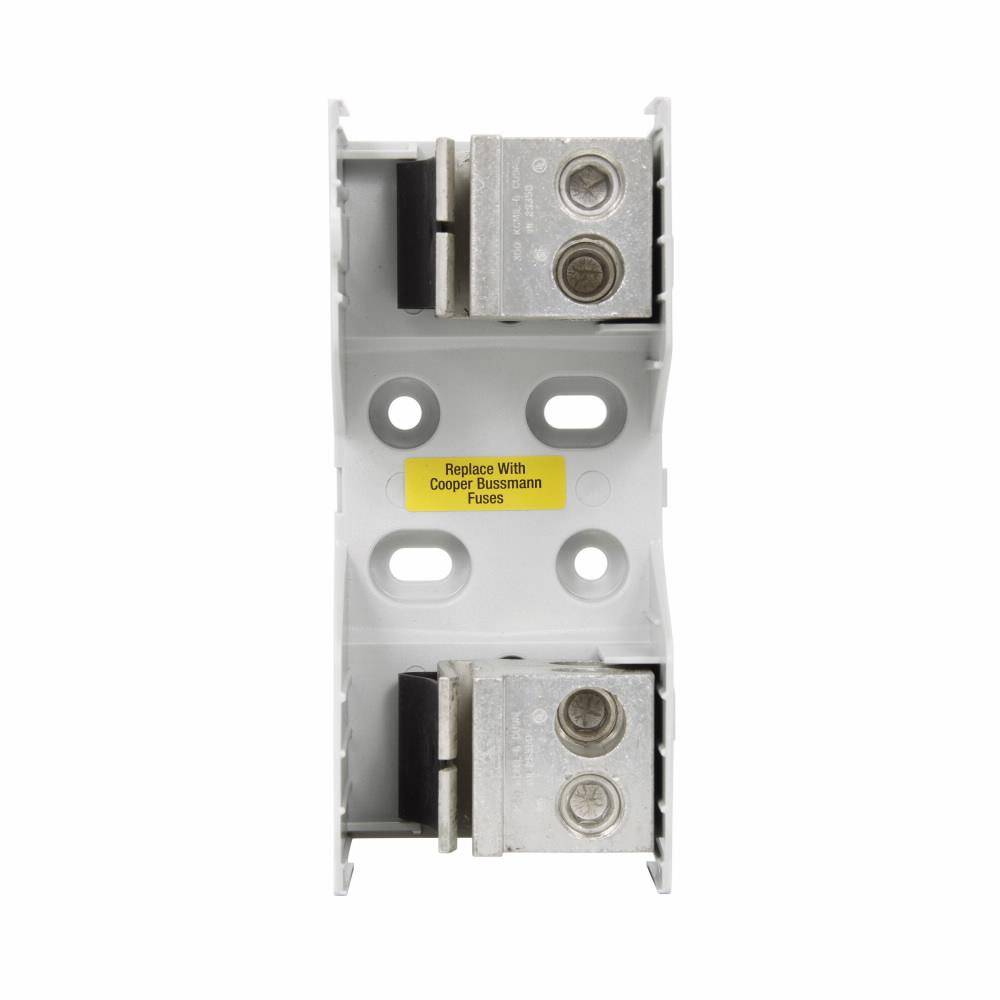

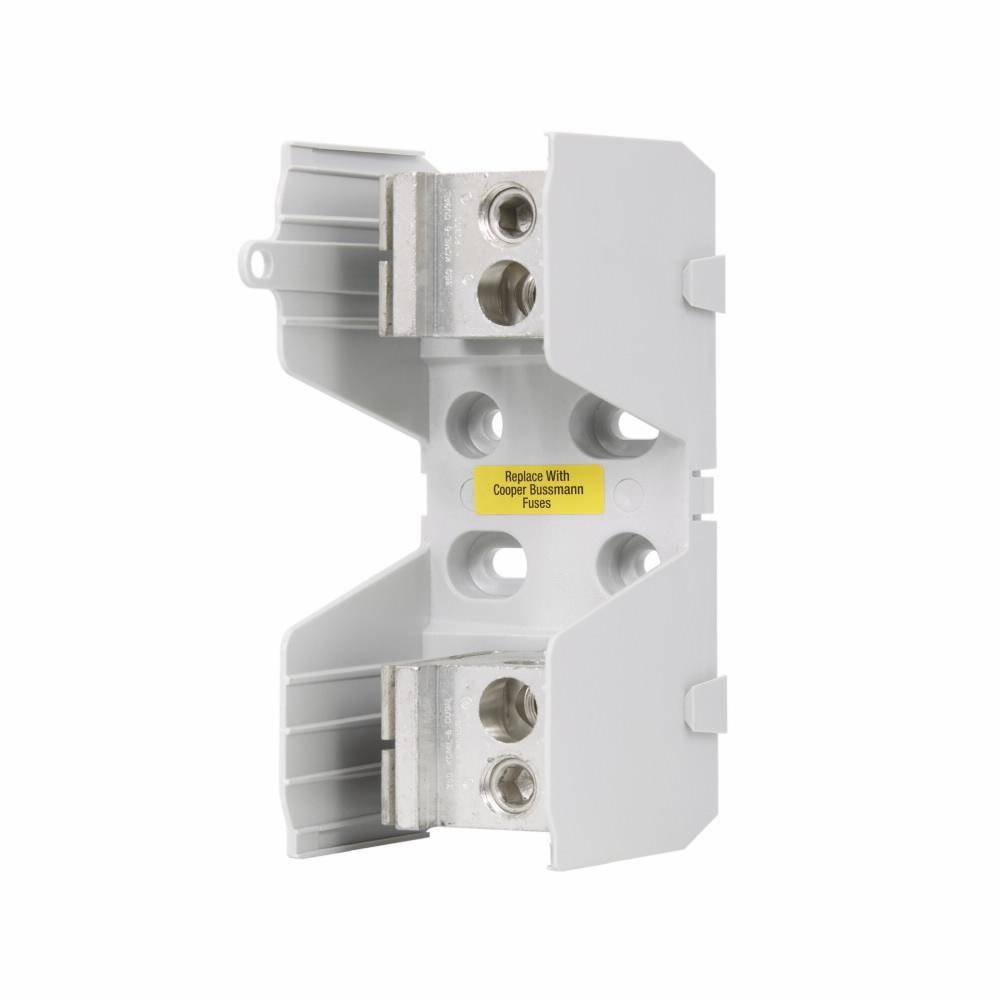

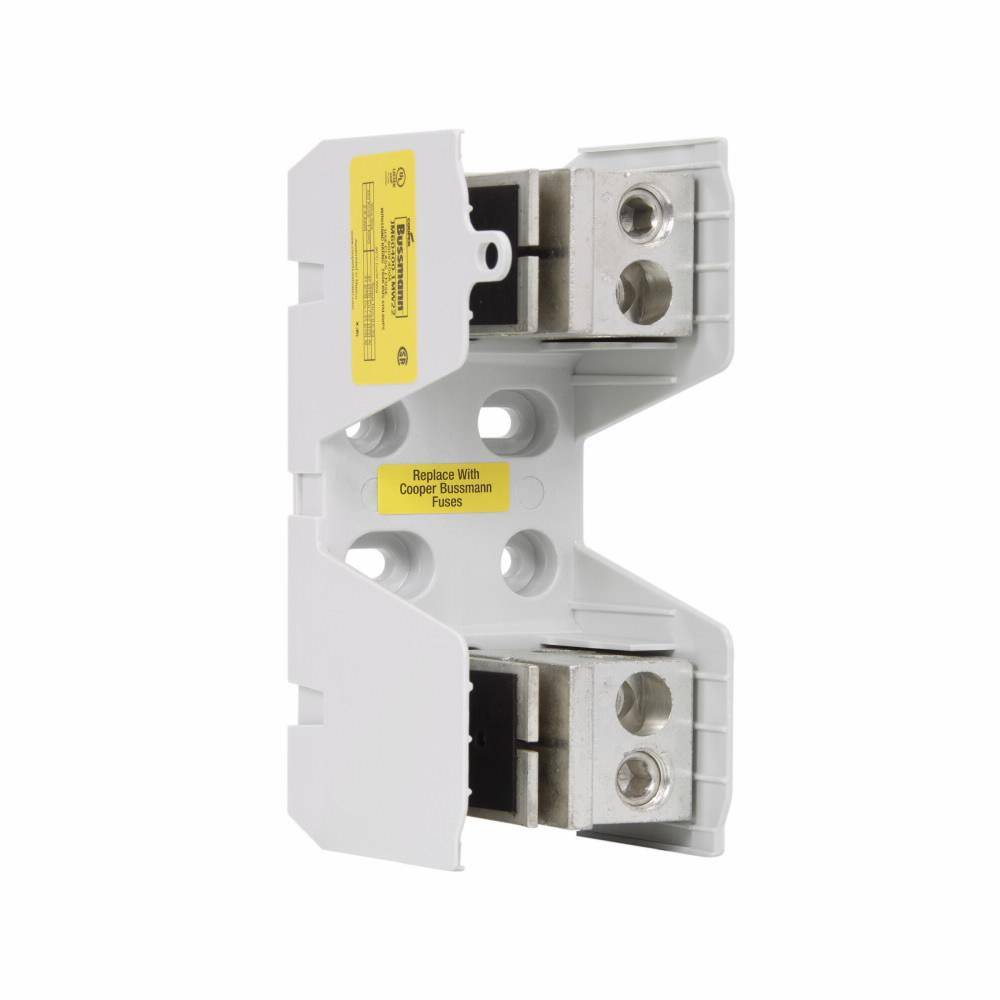

Bussmann JM60400-1MW22 JM600 Modular Fuse Block, 600 VAC, 225 to 400 A, Class: J, 6 AWG to 350 kcmil Wire, 1 Pole

Short Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Bussmann Fuse Block, Modular, Series: JM600, 600 VAC, 225 to 400 A, 1 Pole, Class: J, Fuse Holder Code: AD, Lug, 6 AWG to 350 kcmil Wire, Panel Mount, 7.13 in Fuse Length, 2 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse, Thermoplastic, 8 in L x 3.5 in W x 4.8 in H
MFG #: JM60400-1MW22

EECO #: BUJM604001MW22

Brand: Bussmann
UPC #: 051712485388
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Material
Thermoplastic
Wire Size
6 AWG to 350 kcmil
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
Panel
Voltage Rating
600
Connection Type
Lug
Temperature Rating
-40 to 120
Type
Modular
Series
JM600
Dimensions
8 in L x 3.5 in W x 4.8 in H
Amperage Rating
225 to 400
Suitable For Use With
Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse
Features
  • Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57% less panel space and reducing installation time and labor by an average of 33 when compared with traditional fuse block/power distribution block solutions
  • A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10/409.110(4)/409.22/440.4(B)/670.3(A)(4) /670.5
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for tool less assembly of multiple poles at point of use
  • Panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
  • Design uses fewer wire connections, reducing watts loss and overall operating temperature of the panel
  • (2) 6 AWG to 250 kcmil copper/aluminum wire
