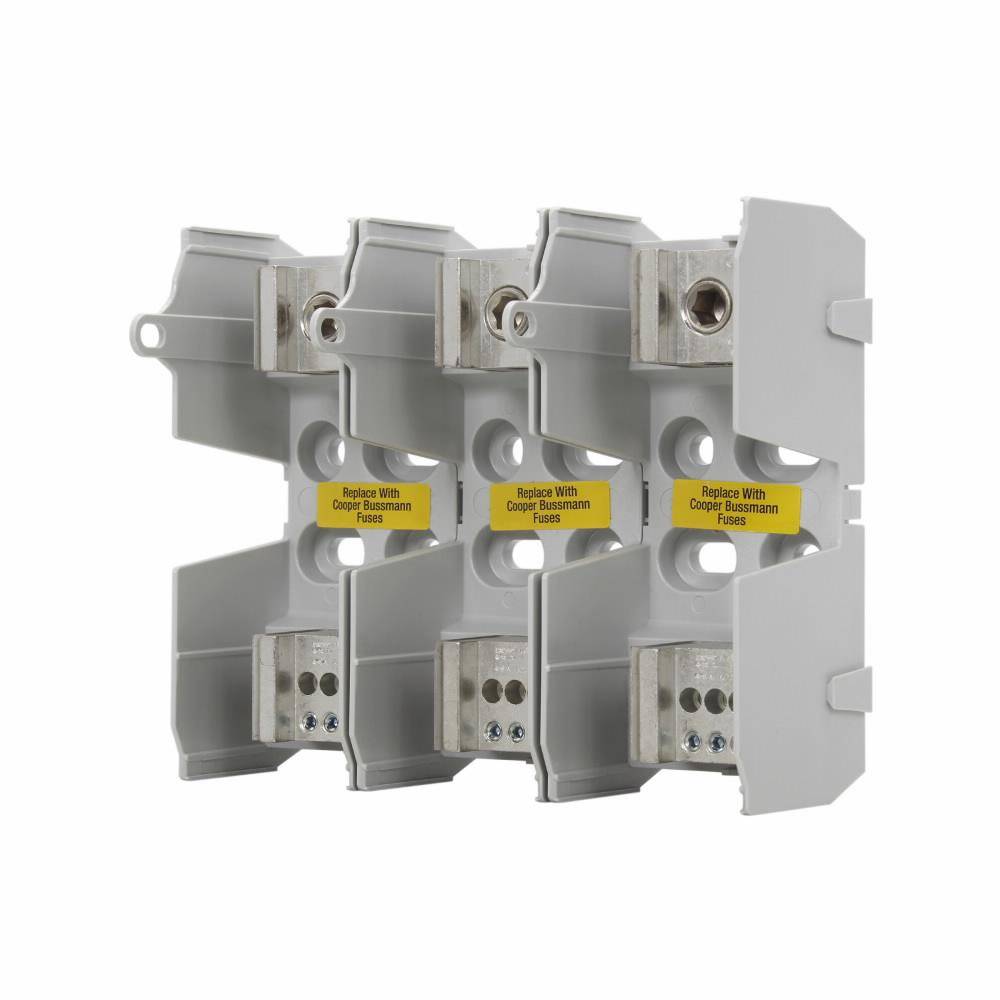

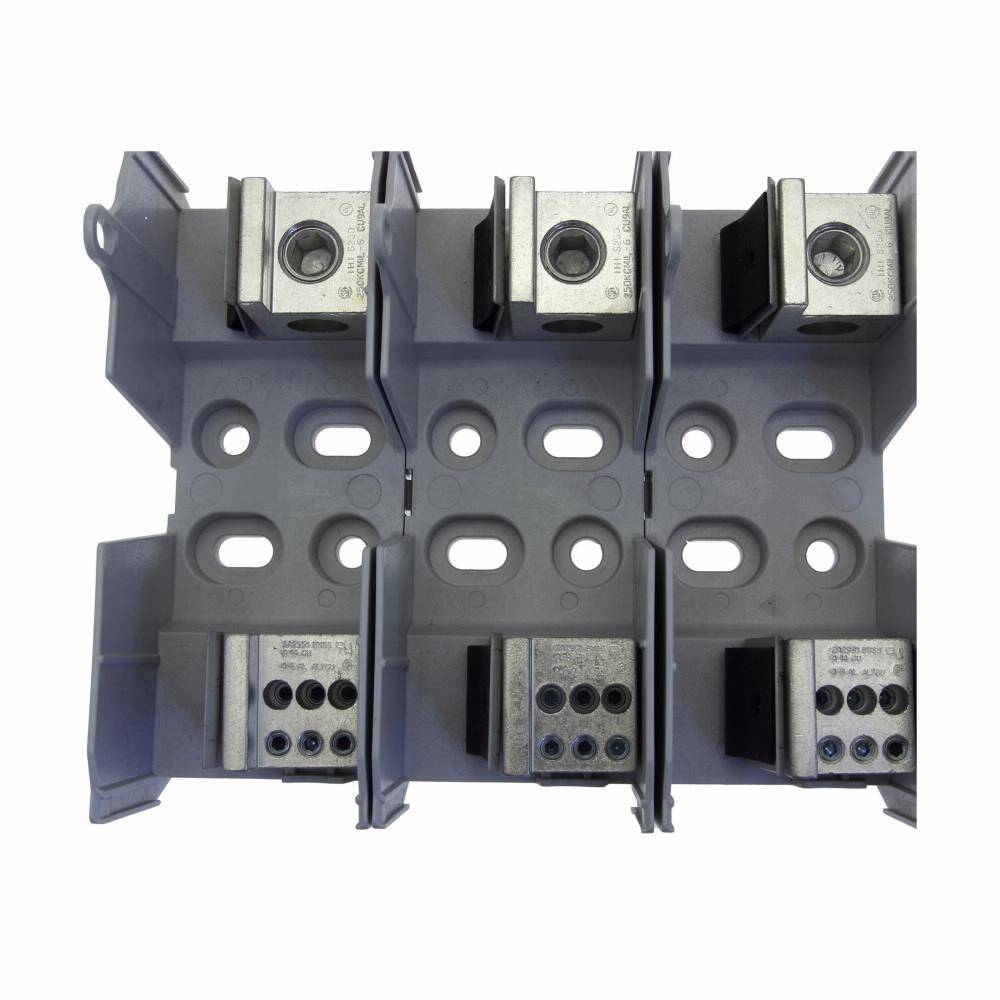

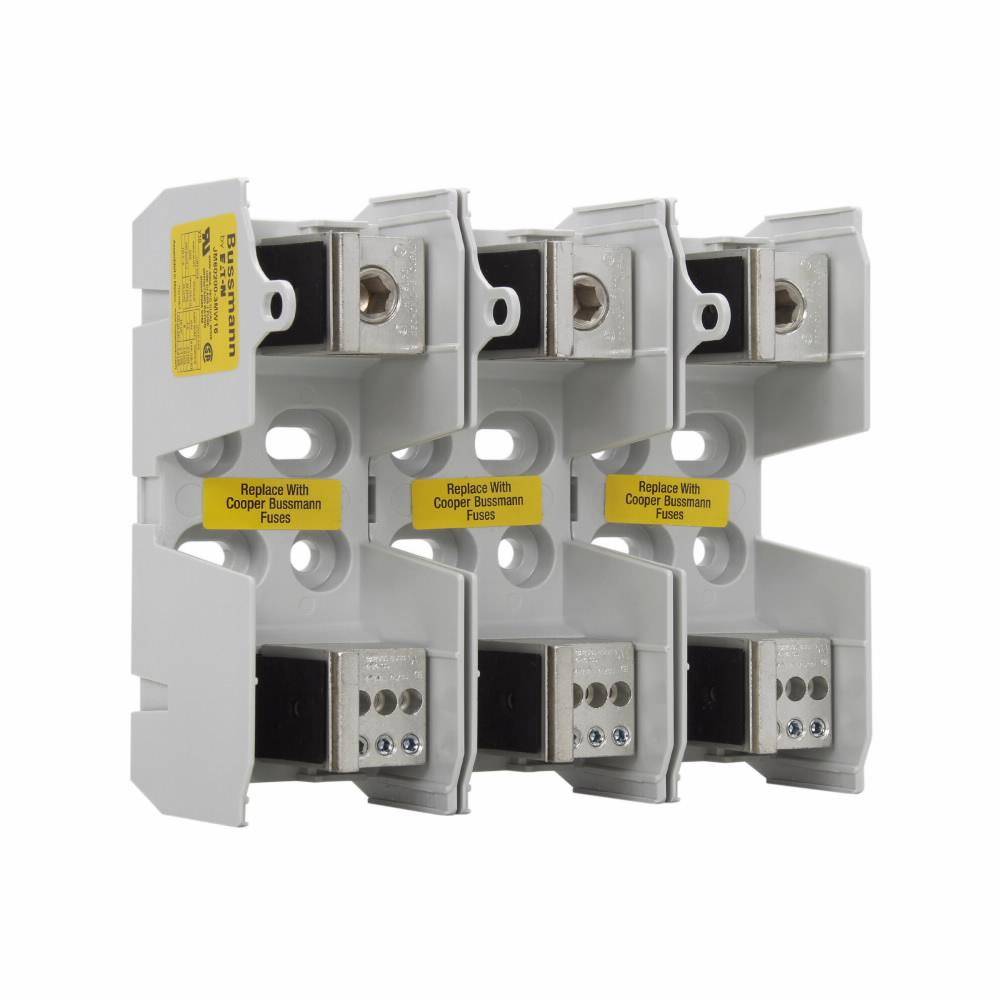

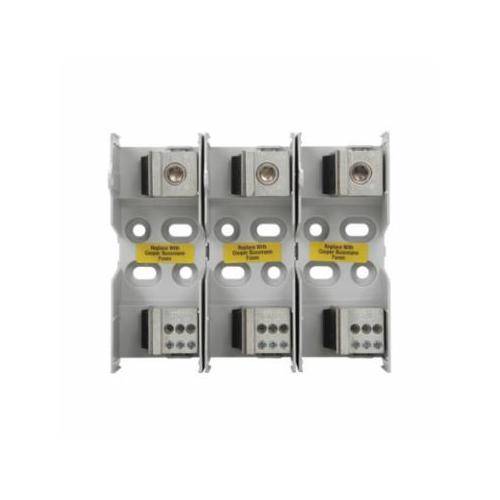

Edison JM60200-2MW16 Modular Fuse Block, 600 V, 60 A

Short Description

These new Bussmann series fuse blocks contain multiple features that increase versatility, reduce labor and enhance safety for any panel or electrical system design.

Edison Modular Fuse Block, Series: JM Series, 600 V, 60 A, Class: J
MFG #: JM60200-2MW16

EECO #: BUJM602002MW16

Brand: Edison
UPC #: 051712491112
Attributes
Features
Documents
Product Information
Attributes
Class
J
Color
Gray
UNSPSC
39121629
Material
Thermoplastic
Wire Size
6 AWG to 250 kcmil, 14 to 4 AWG, 8 to 4 AWG, (12) 14 to 10 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
Wired
Temperature Rating
-40 to 120
Type
Modular
Series
JM Series
Dimensions
6.8 in L x 3.8 in W x 2.6 in H
Amperage Rating
60
Features
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap-together for tool-less assembly of multiple poles at point of use
  • DIN-rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost
  • Save panel space with the smallest width dimension on the market
JM60200_2MW16_Specification_Sheet
