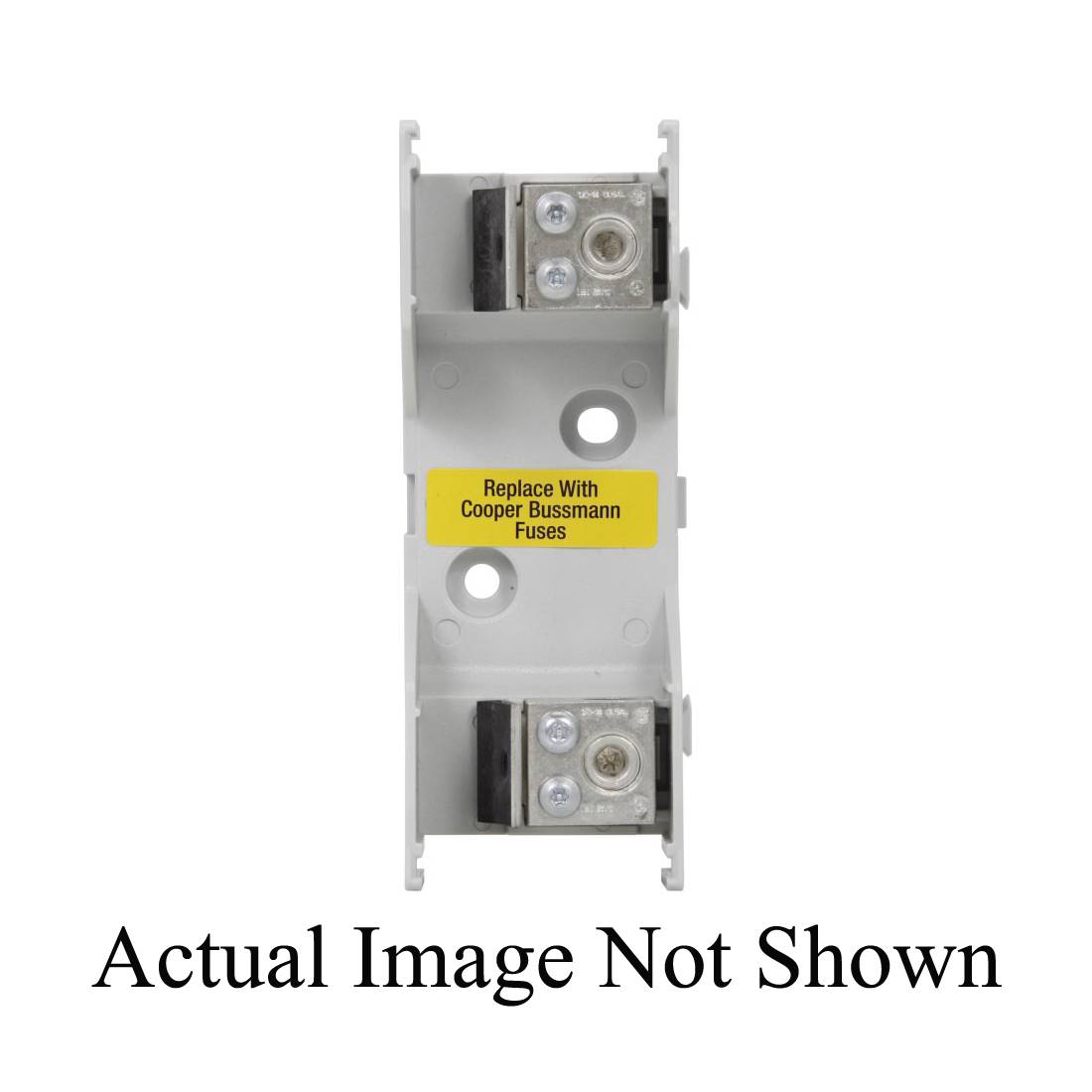

Edison JM60100-1CR JM600 Fuse Block, 600 VAC, 70 to 100 A, J Class, 14 to 1/0 AWG Wire, 1 Pole

Short Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Series: JM600, 600 VAC, 70 to 100 A, 1 Poles, Class: J, Fuse Holder Code: AB, Box Lug, 14 to 1/0 AWG Wire, Panel Mount, 4.63 in Fuse Length, 1.13 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse, Thermoplastic, 5.5 in L x 2 in W x 2.8 in H
MFG #: JM60100-1CR

EECO #: BUJM601001CR

Brand: Edison
UPC #: 051712391245
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Material
Thermoplastic
Wire Size
14 to 1/0
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Panel
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
JM600
Dimensions
5.5 in L x 2 in W x 2.8 in H
Amperage Rating
70 to 100
Suitable For Use With
Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • (1) 14 to 1/0 AWG copper/aluminum for line side, (4) 14 to 4 AWG copper, (4) 8 to 4 AWG aluminum, (8) 14 to 10 AWG copper for load side wire
