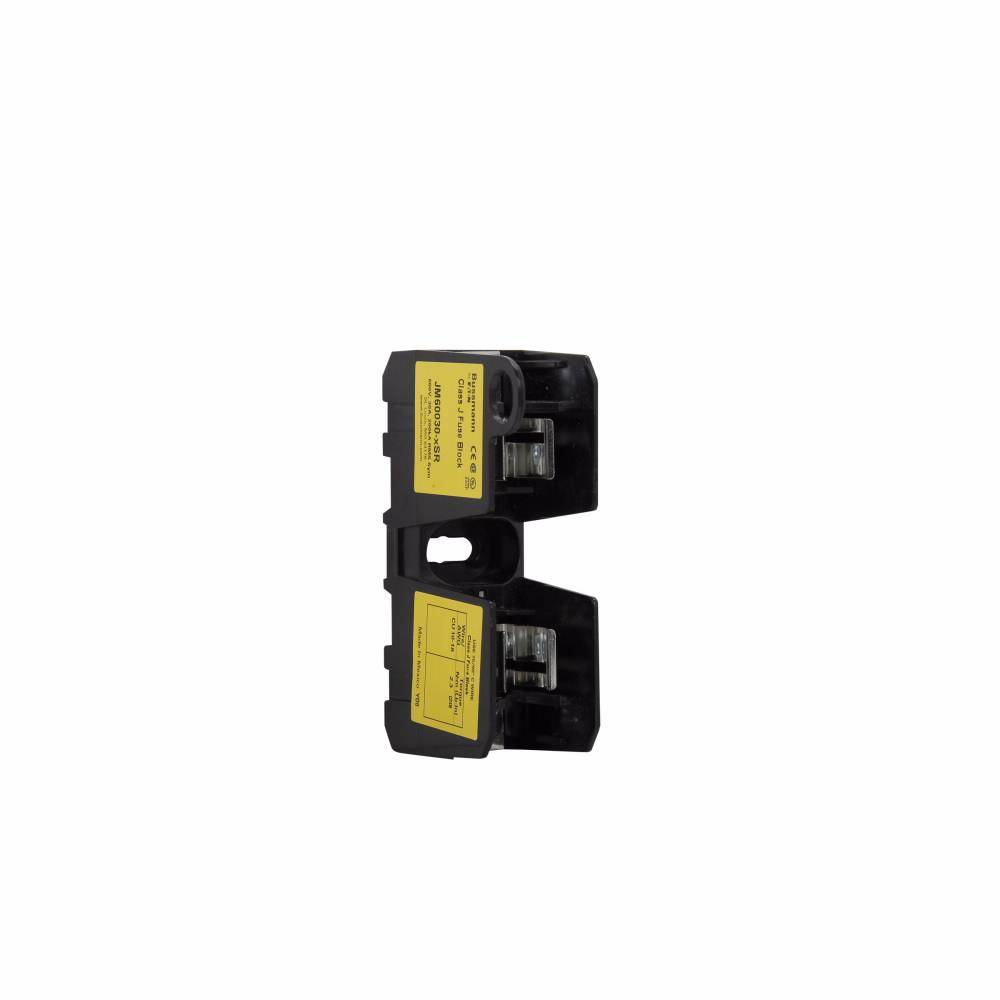

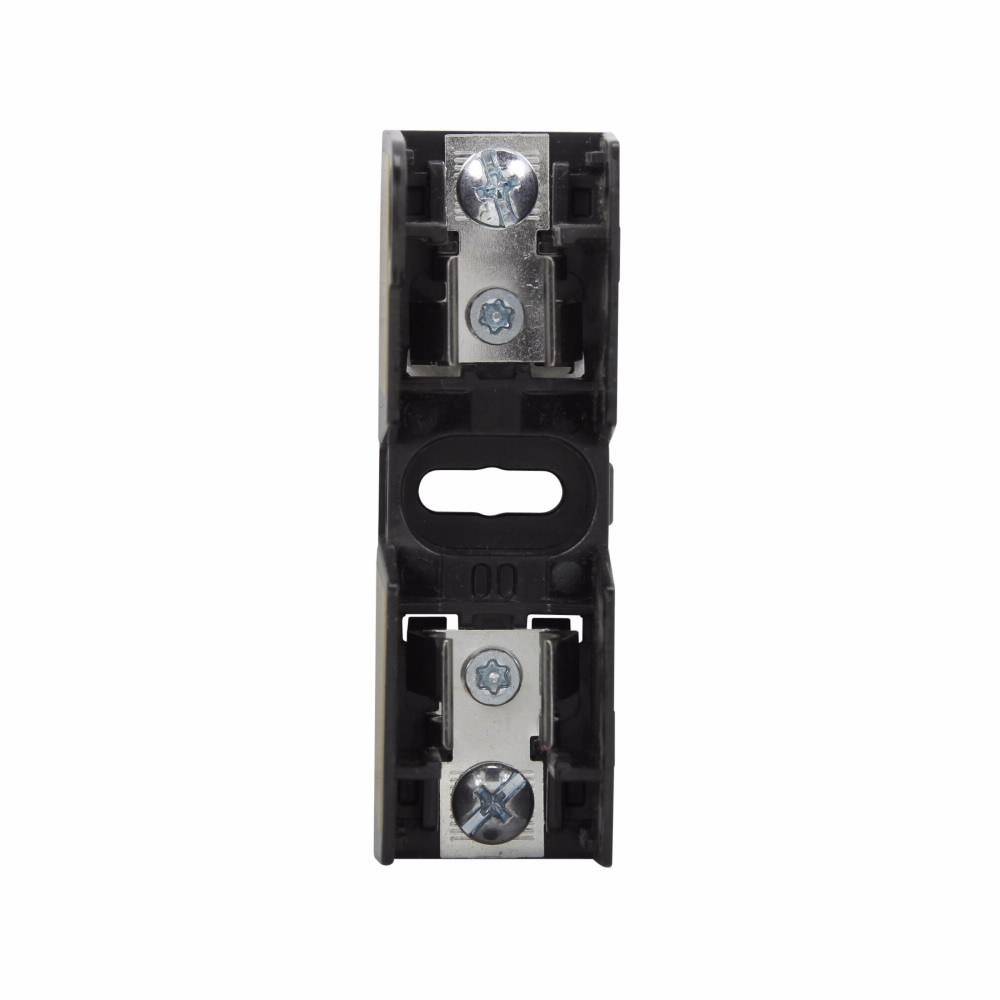

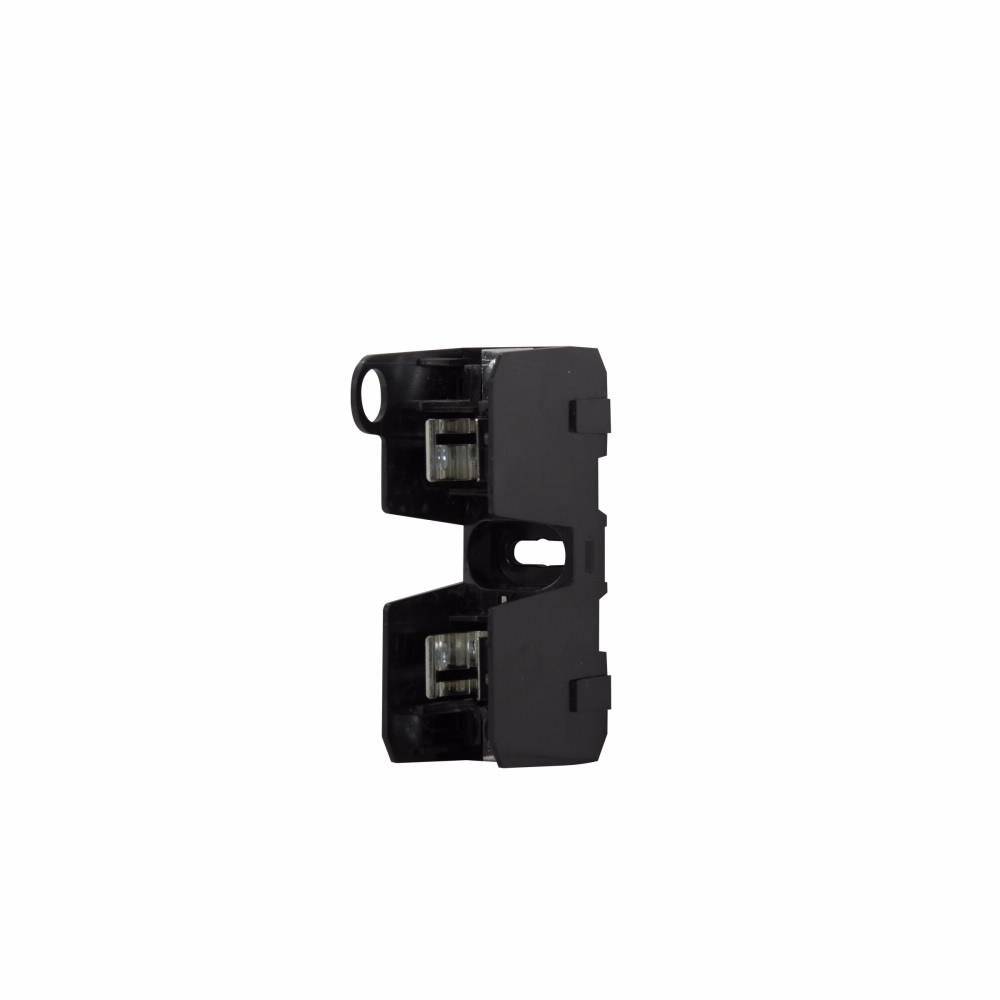

Bussmann JM60030-1SR Modular Fuse Block With Pressure Plate, 600 V, 0 to 30 A, Class: J, 32 to 10 AWG Wire, 1 Pole

Short Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel

Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 0 to 30 A, 1 Pole, Class: J, Phillips® Slot Screw, 32 to 10 AWG Wire, DIN Rail Mount, -40 to 120 deg C, For Use With: Low-Peak™ LPJ Series Time Delay Fuse, Thermoplastic, 4.3 in L x 1.1 in H
MFG #: JM60030-1SR

EECO #: BUJM600301SR

Brand: Bussmann
UPC #: 051712514576
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Material
Thermoplastic
Wire Size
32 to 10
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail
Voltage Rating
600
Connection Type
Phillips® Slot Screw
Temperature Rating
-40 to 120
Type
Modular
Series
JM Series
Dimensions
4.3 in L x 1.1 in H
Amperage Rating
0 to 30
Suitable For Use With
Low-Peak™ LPJ Series Time Delay Fuse
Features
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Save panel space with the smallest width dimension on the market
  • Easy circuit identification with available universal marker labels for blocks and covers
