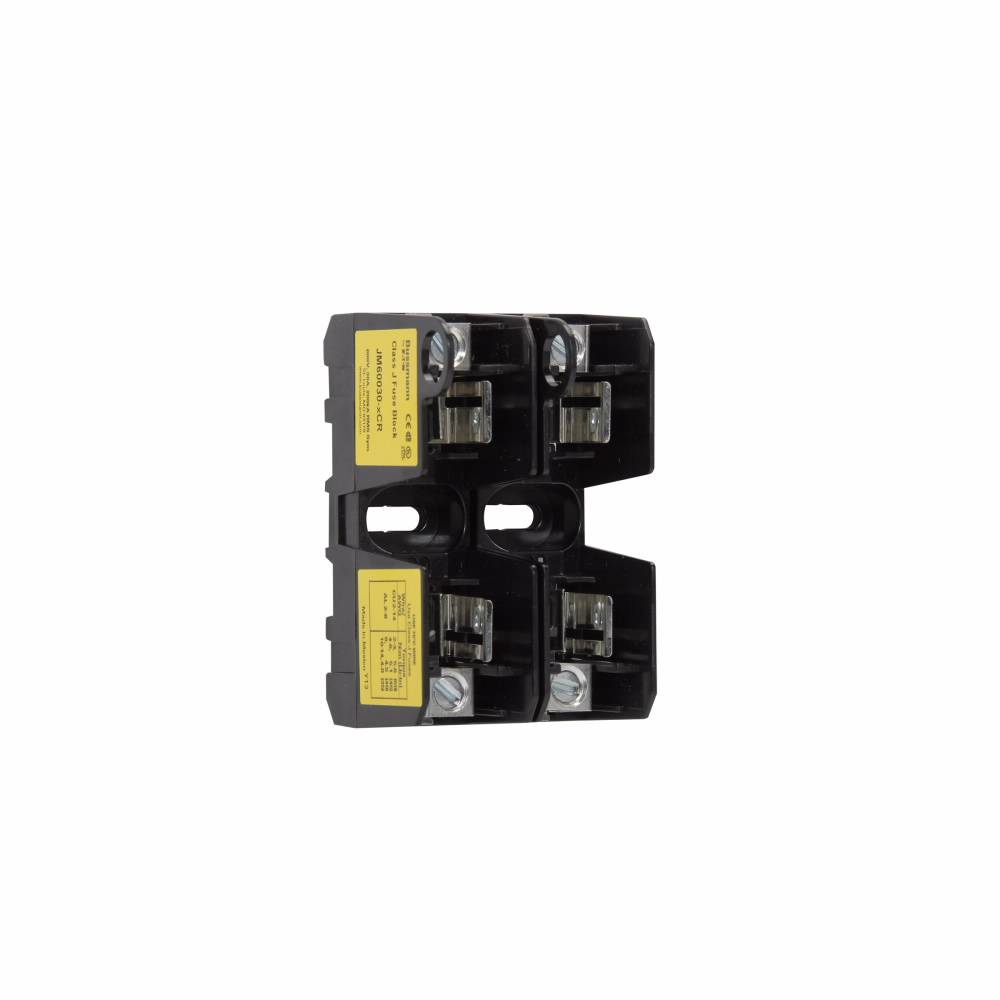

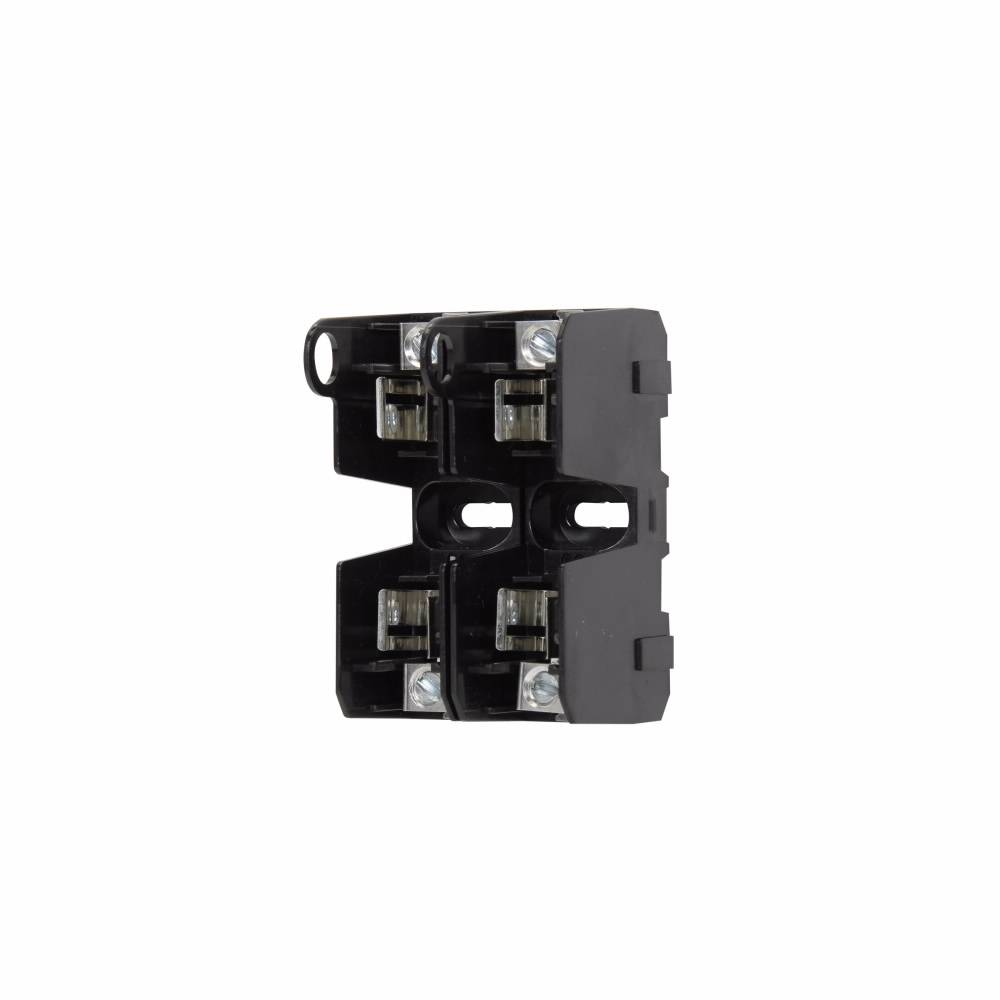

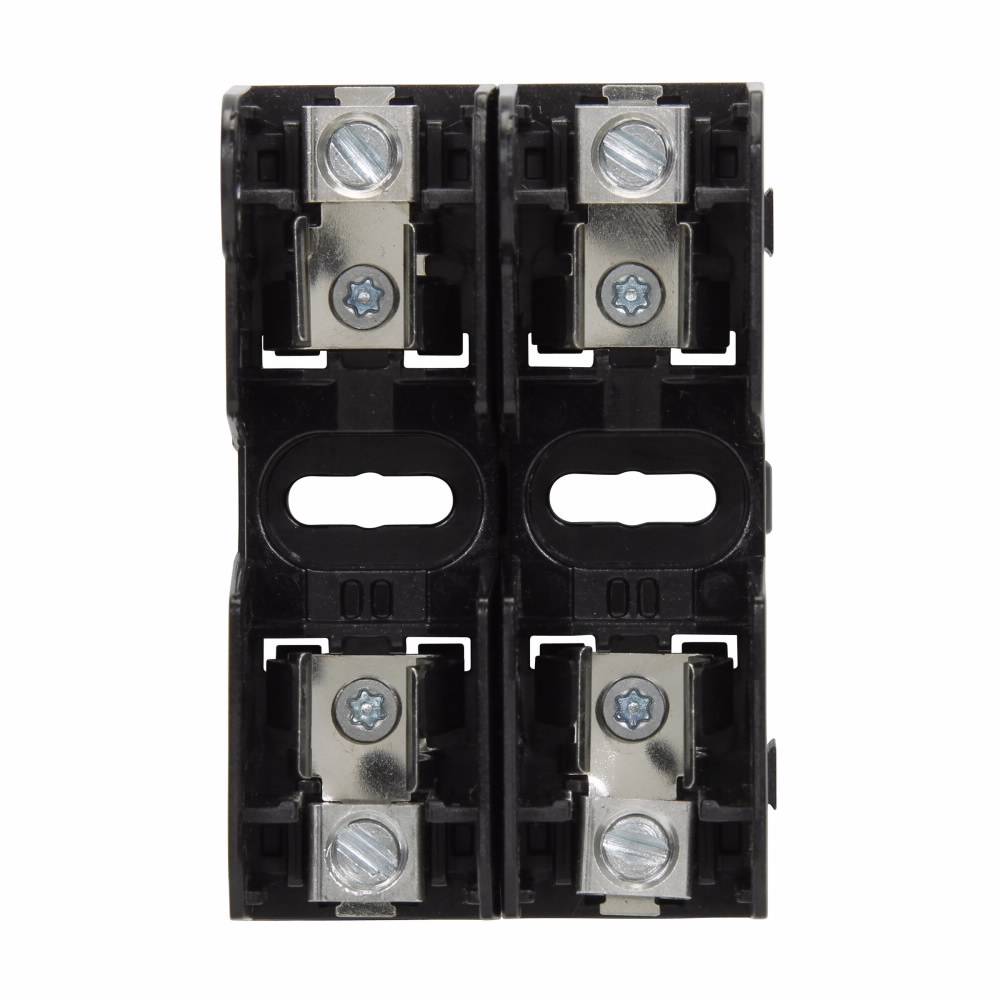

Edison JM60030-1CR Fuse Block, 600 VAC, 1/2 to 30 A, Class: J, 14 to 2 AWG, 8 to 2 AWG Wire, 1 Pole

Short Description

Class J modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class J fuse amp range. All blocks are available as 1-pole versions that snap together at point of use or as factory configured 2 and 3-pole versions. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Series: JM600, 600 VAC, 1/2 to 30 A, 1 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse, Thermoplastic, 4.3 in L x 1.1 in W x 2.3 in H
MFG #: JM60030-1CR

EECO #: BUJM600301CR

Brand: Edison
UPC #: 051712514637
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121629
Material
Thermoplastic
Wire Size
14 to 2 AWG, 8 to 2 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
Box Lug/Slot Screw
Temperature Rating
-40 to 120
Series
JM600
Dimensions
4.3 in L x 1.1 in W x 2.3 in H
Amperage Rating
1/2 to 30
Suitable For Use With
Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse
Features
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for tool less assembly of multiple poles at point of use
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Save panel space with the smallest width dimension on the market
  • Easy circuit identification with available universal marker labels for blocks and covers
  • 14 to 2 AWG copper, 8 to 2 AWG aluminum wire
