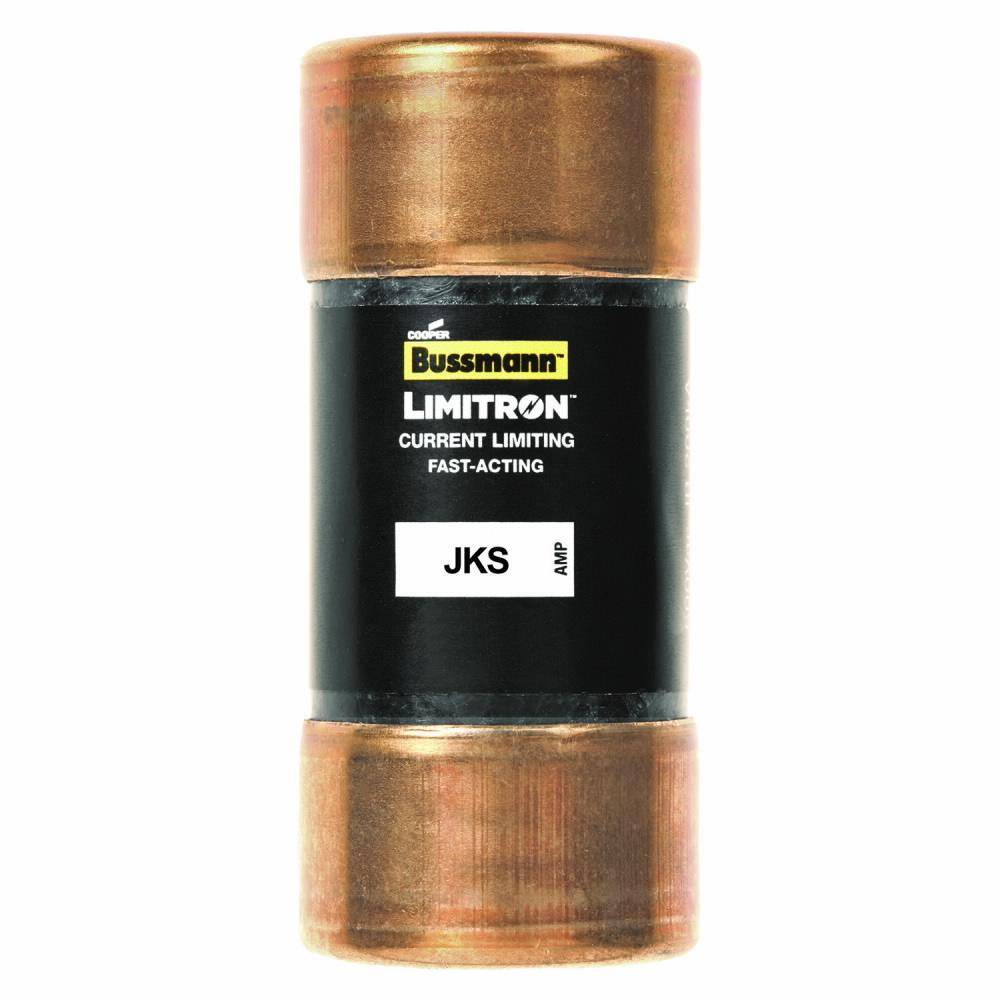

Bussmann JKS-60-700 JKS-700 Current Limiting Fast Acting Fuse, 60 A, 700 VAC, 200 kA Interrupt, J Class
Share Share Print Print
Eaton

Bussmann JKS-60-700 JKS-700 Current Limiting Fast Acting Fuse, 60 A, 700 VAC, 200 kA Interrupt, J Class

Short Description

Bussmann's UL class J fuse products extend both our low-peak family of products with our LPJ_SP and LPJ_SPI dual-element, time delay fuses as well as our limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300000 A interrupting rating at 600 VAC RMS sym and 100 kA VDC while delivering a minimum of 10 s of 500% rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL class J products in sizes 1 to 600 A provide exceptional performance at 600 VAC and 300 VDC in a compact size rejecting footprint.

Bussmann Fast Acting Fuse, Current Limiting, Series: JKS-700, Non-Indicating, 60 A, 700 VAC, 200 kA Interrupt, Class: J, 10 s at 500% Response, Single Element, 2.38 in L x 1.06 in W x 1.06 in H Body
MFG #: JKS-60-700

EECO #: BUJKS60700

Brand: Bussmann
UPC #: 051712697651
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121626
Application
Industrial Facilities and Factories - Safety and Security Systems
Response Time
10 s at 500%
Voltage Rating
700
Type
Current Limiting
Series
JKS-700
Amperage Rating
60
Features
  • Current limitation for non-inductive circuits provides current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupting rating provides protection at all circuit locations
  • Economical circuit protection for high fault current circuits
JKS_60_700_Specification_Sheet
