Bussmann Limitron™ JKS-400 Current Limiting Fast Acting Fuse, 400 A, 600 V, 200 kAIC Interrupt, J Class, Cartridge Body

Short Description

600 VAC, 400 A, Blade Terminal, Class J, Fast Acting, UL Power Fuse

Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 400 A, 600 V, 200 kAIC Interrupt, Class: J, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2 in Dia x 7.13 in L Body Size

MFG #: JKS-400

EECO #: BUJKS400

Brand: Bussmann
UPC #: 051712634007
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121626
Approval
UL 248-8, CSA C22.2, CE
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect Applications
Mounting Type
Holder
Terminal Type
Bolted Blade End
Current Rating
400 Amp
Voltage Rating
600
Characteristics
Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Current Limiting Fast Acting
Series
JKS

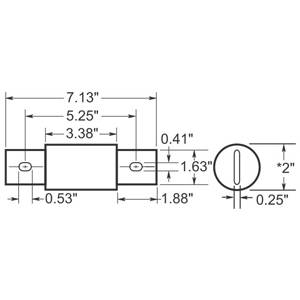

Diameter
2 Inch
Amperage Rating
400
Features
  • Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
  • High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
  • Fuses can be selectively coordinated with ease
  • Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
  • Economical solutions for high fault circuits
  • Advanced protection
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
  • Well suited for lighting and heating circuits and other non-inductive loads
