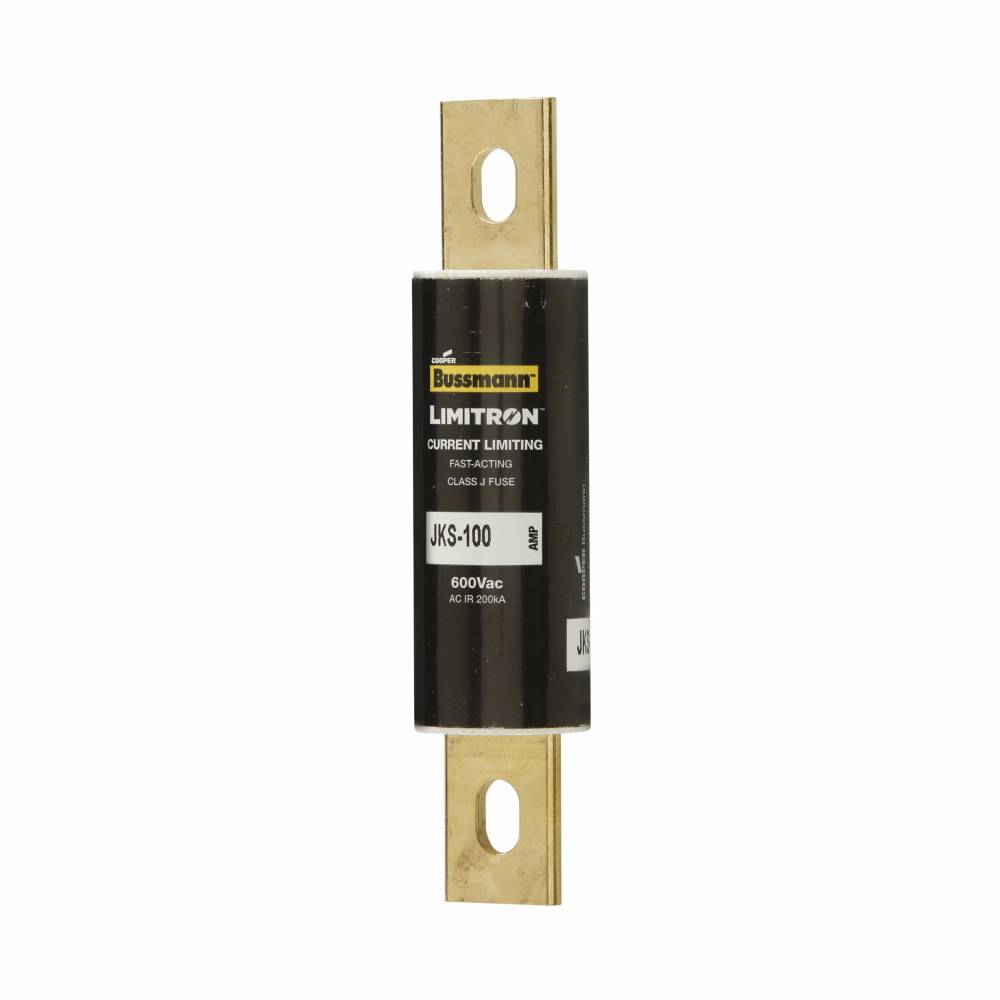

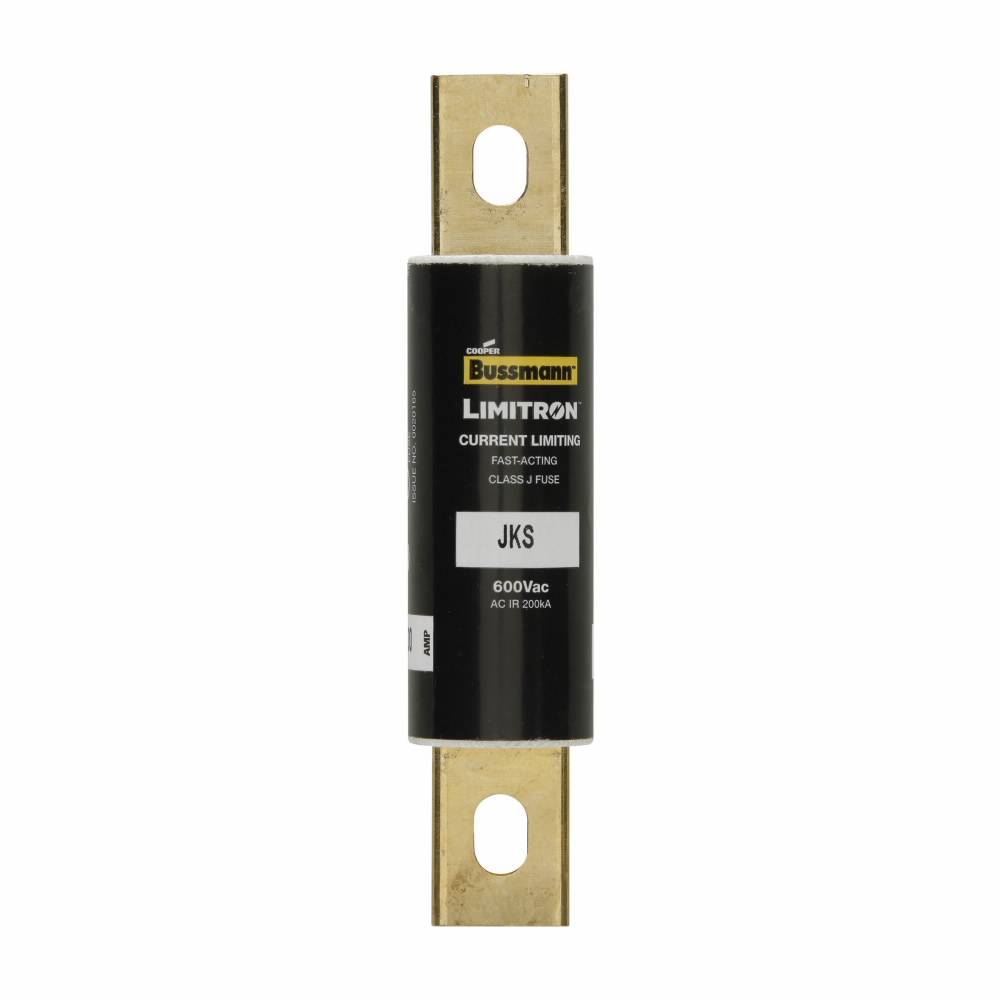

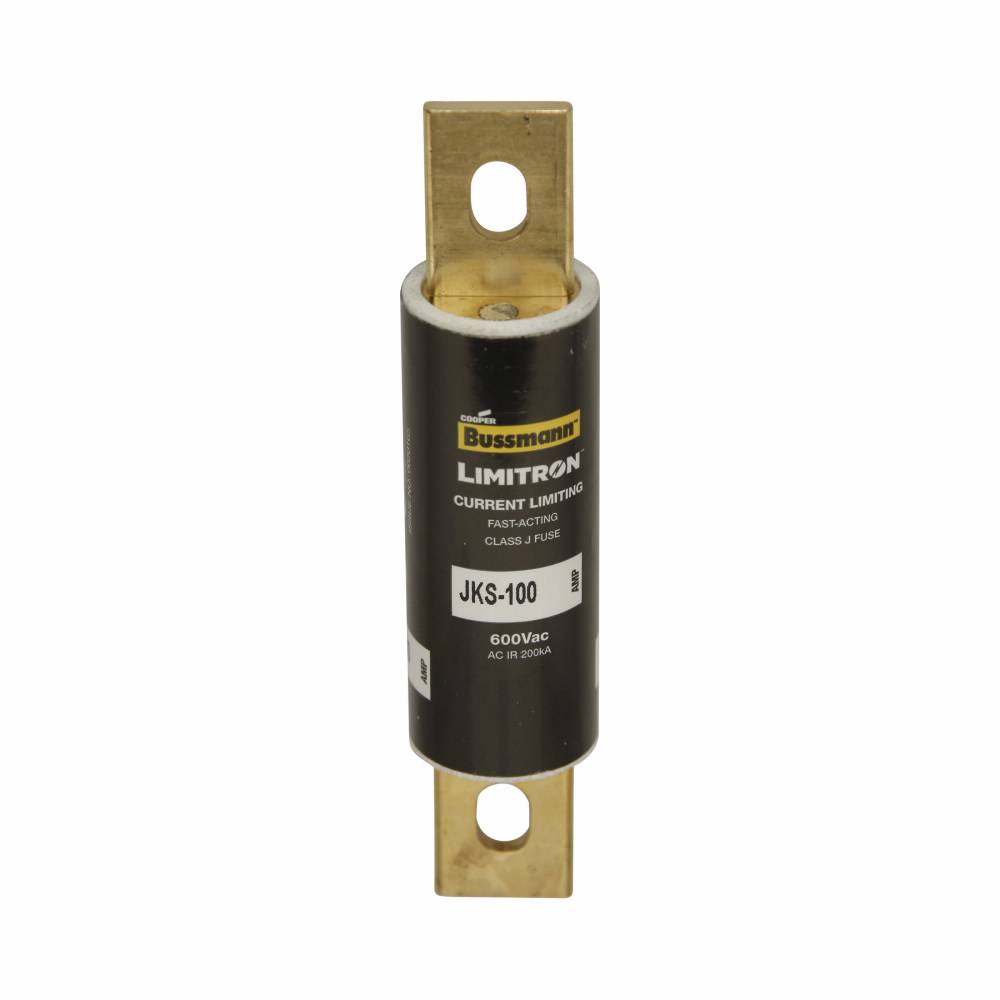

Bussmann Limitron™ JKS-100 Current Limiting Fast Acting Fuse, 100 A, 600 V, 200 kAIC Interrupt, J Class, Cartridge Body

Short Description

Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500% rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint

Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 600 V, 200 kAIC Interrupt, Class: J, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1.13 in Dia x 4.63 in L Body Size
MFG #: JKS-100

EECO #: BUJKS100

Brand: Bussmann
UPC #: 051712631006
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121626
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect Applications
Mounting Type
Holder
Terminal Type
Bolted Blade End
Voltage Rating
600
Type
Current Limiting Fast Acting
Series
JKS
Amperage Rating
100
Features
  • Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
  • High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
  • Fuses can be selectively coordinated with ease
  • Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
  • Economical solutions for high fault circuits
  • Advanced protection
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
  • Well suited for lighting and heating circuits and other non-inductive loads
