Eaton

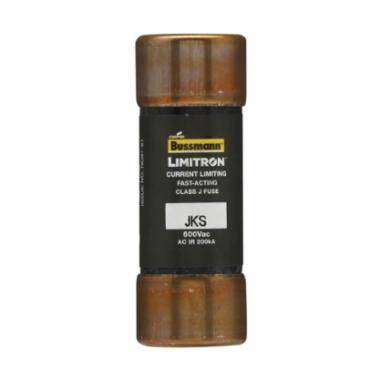

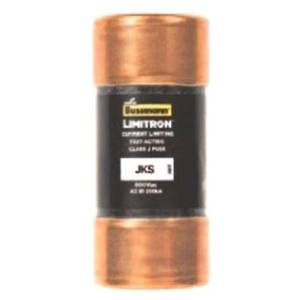

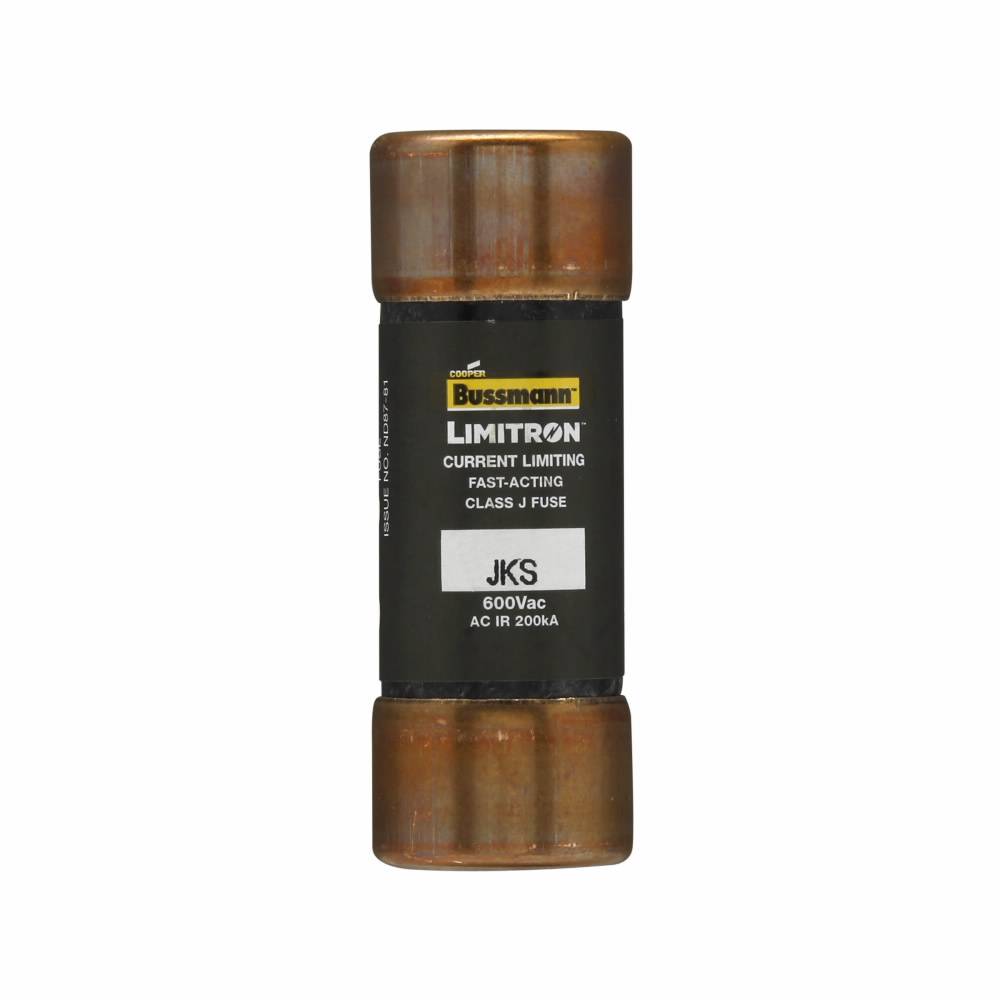

Bussmann Limitron™ JKS-10 Fast Acting Current Limiting Low Voltage Fuse, 10 A, 600 VAC, 200 kA Interrupt, J Class, Cartridge Body

Short Description

600 VAC, 10 A, Ferrule, Class J, Fast Acting, UL Power Fuse

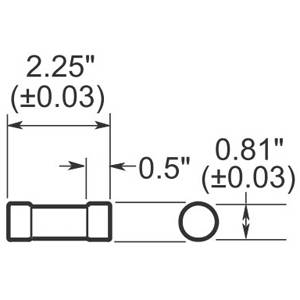

Bussmann Limitron™ Fuse, Fast Acting Current Limiting Low Voltage, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 600 VAC, 200 kA Interrupt, Class: J, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 0.81 in Dia x 2.25 in L Body Size

MFG #: JKS-10

EECO #: BUJKS10

Brand: Bussmann
UPC #: 051712630108
Attributes
Features
Documents
Product Information
Attributes
Class
J
UNSPSC
39121626
Approval
UL 248-8, CSA C22.2, CE
Material
Melamine
Application
Power Panelboard and Machinery Disconnects, Safety and Security Systems
Mounting Type
Holder
Terminal Type
Ferrule
Current Rating
10 Amp
Voltage Rating
600
Characteristics
Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Fast Acting Current Limiting Low Voltage
Series
JKS
Diameter
0.81 Inch
Amperage Rating
10
Features
  • Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Economical solutions for high fault circuits
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
COBUSSE01844_1_3
COBUSSE02627_1_20
EATCORE56229_1
Qty Unit price
Ea
1 $30.22

Slqt
1 $30.22

Stpk
1 $302.20

Unit
1 $30.22
