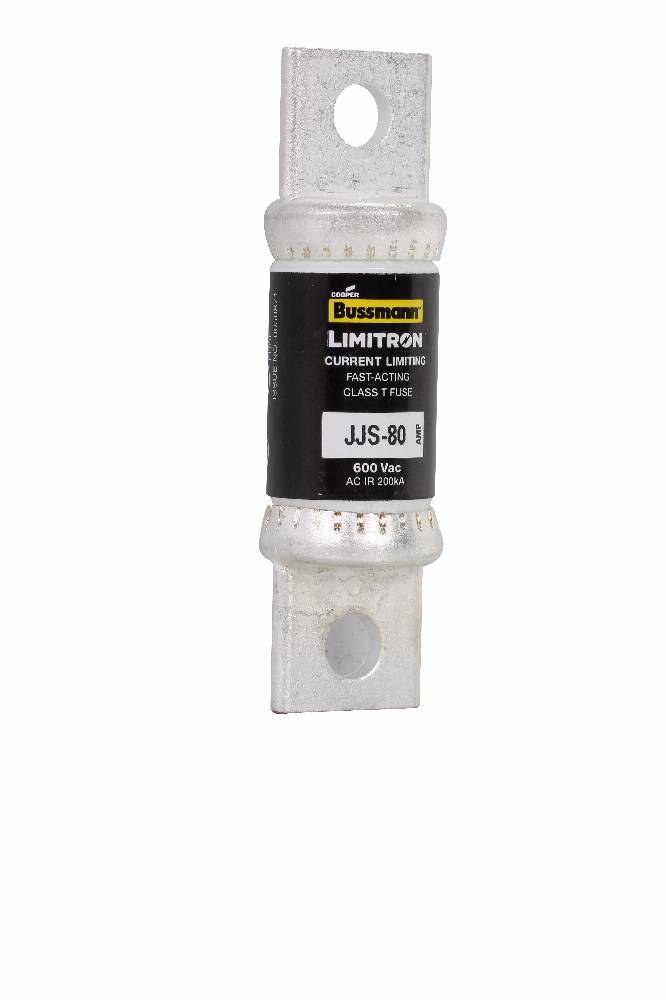

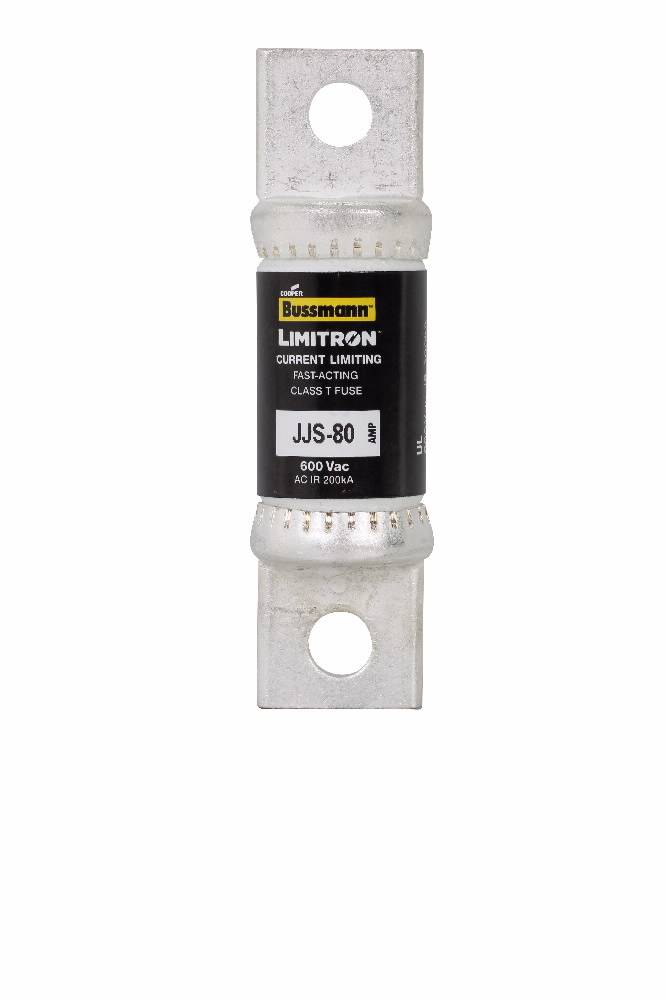

Bussmann Limitron™ T-Tron® JJS-80 Fast Acting Current Limiting Low Voltage Fuse, 80 A, 600 VAC, 200 kA Interrupt, T Class, Cartridge Body

Short Description

600 VAC, 80 A, Blade Terminal, Class T, Very Fast Acting, UL Power Fuse

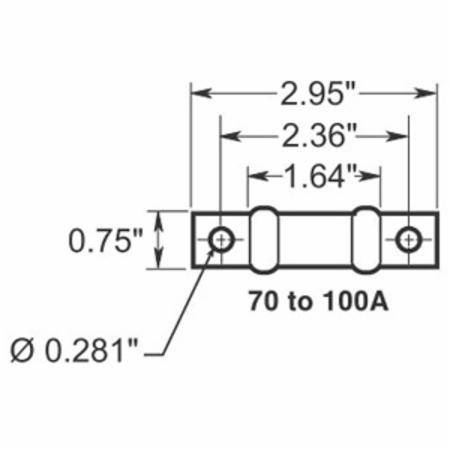

Bussmann Limitron™ T-Tron® Fuse, Fast Acting Current Limiting Low Voltage, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 600 VAC, 200 kA Interrupt, Class: T, Bolted Blade Terminal, Holder Mount, Cartridge Body, Single Element, Melamine, 0.75 in Dia x 2.95 in L Body Size

MFG #: JJS-80

EECO #: BUJJS80

Brand: Bussmann
UPC #: 051712628808
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Approval
UL 248-15, CSA C22.2, CE
Material
Melamine
Application
Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection, Safety and Security Systems
Mounting Type
Holder
Terminal Type
Bolted Blade
Current Rating
80 Amp
Voltage Rating
600
Characteristics
Very Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Fast Acting Current Limiting Low Voltage
Series
JJS
Diameter
0.75 Inch
Amperage Rating
80
Features
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Small footprint allows more efficient use of available space
COBUSSE02627_1_33
COBUSSE02727_1_3
EATCORE56226_1
Qty Unit price
Ea
1 $50.36

Slqt
1 $50.36

Stpk
1 $251.80

Unit
1 $50.36
everwhere

Related Products

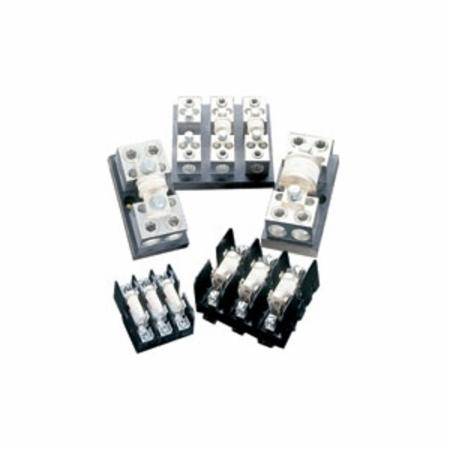

600 VAC, 100 A, Mersen S.A. 61033T Fuse Block, 3-Pole, Class T
