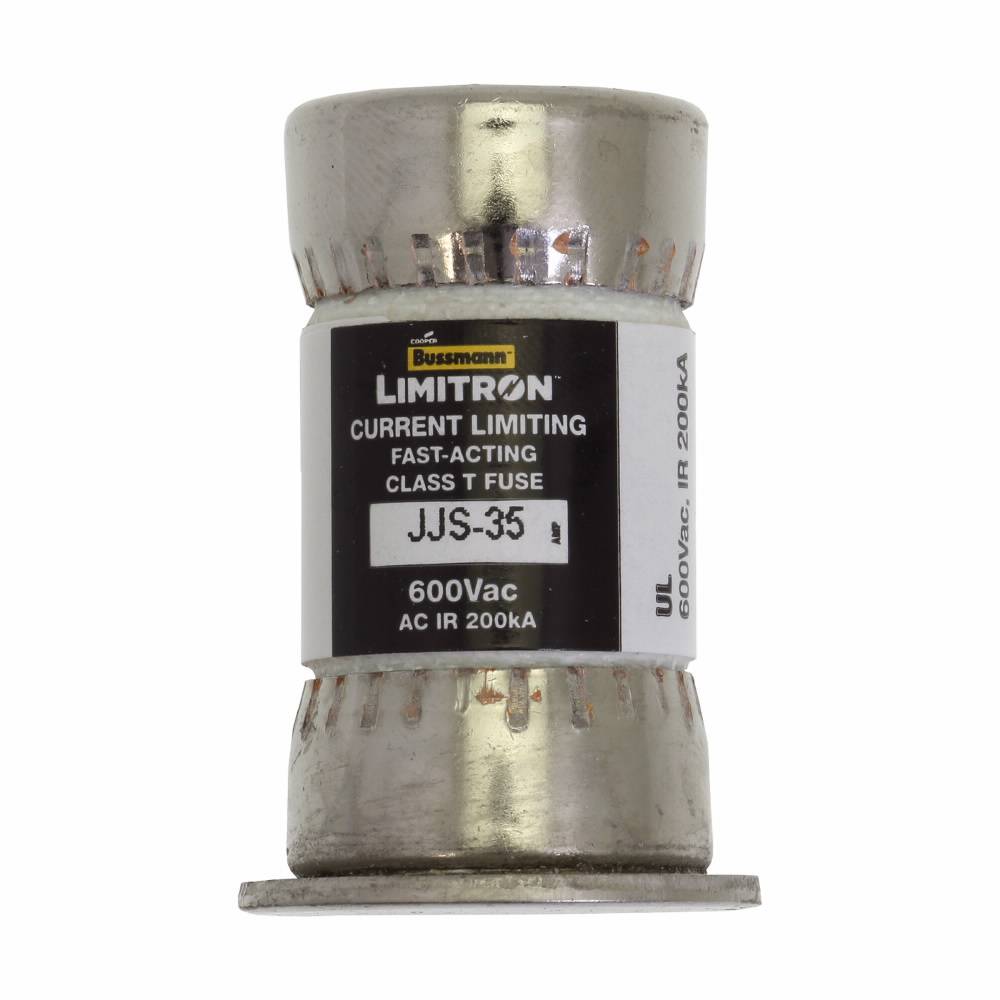

Bussmann Limitron™ Tron® JJS-35 Current Limiting Very Fast Acting Fuse, 35 A, 600 V, 200 kAIC Interrupt, T Class, Cylindrical Body

Short Description

600 VAC, 35 A, Ferrule, Class T, Very Fast Acting, UL Power Fuse

Bussmann Limitron™ Tron® Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 35 A, 600 V, 200 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 1 in Dia x 1.56 in L Body Size

MFG #: JJS-35

EECO #: BUJJS35

Brand: Bussmann
UPC #: 051712628358
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Approval
UL 248-15, CSA C22.2, CE
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection Applications
Mounting Type
Holder
Terminal Type
Ferrule End
Current Rating
35 Amp
Voltage Rating
600
Characteristics
Very Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Current Limiting Very Fast Acting
Series
JJS
Diameter
0.81 Inch
Amperage Rating
35
Features
  • Small footprint allows more efficient use of available space
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating complies with NEC section 110.9 for today's large capacity systems
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
COBUSSE02627_1_33
COBUSSE02727_1_3
EATCORE56215_1
Qty Unit price
Ea
1 $31.38

Slqt
1 $31.38

Stpk
1 $313.80

Unit
1 $31.38
everwhere

Related Products

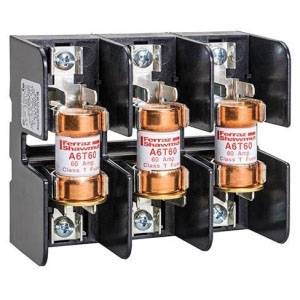

600 VAC/VDC, 60 A, Mersen EP 60608T Fuse Block, 3-Pole, Class T
