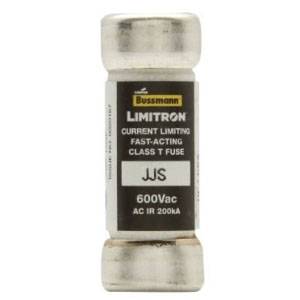

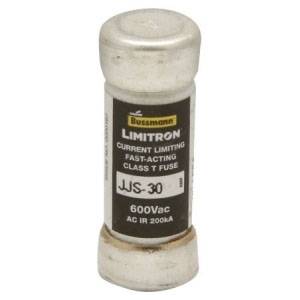

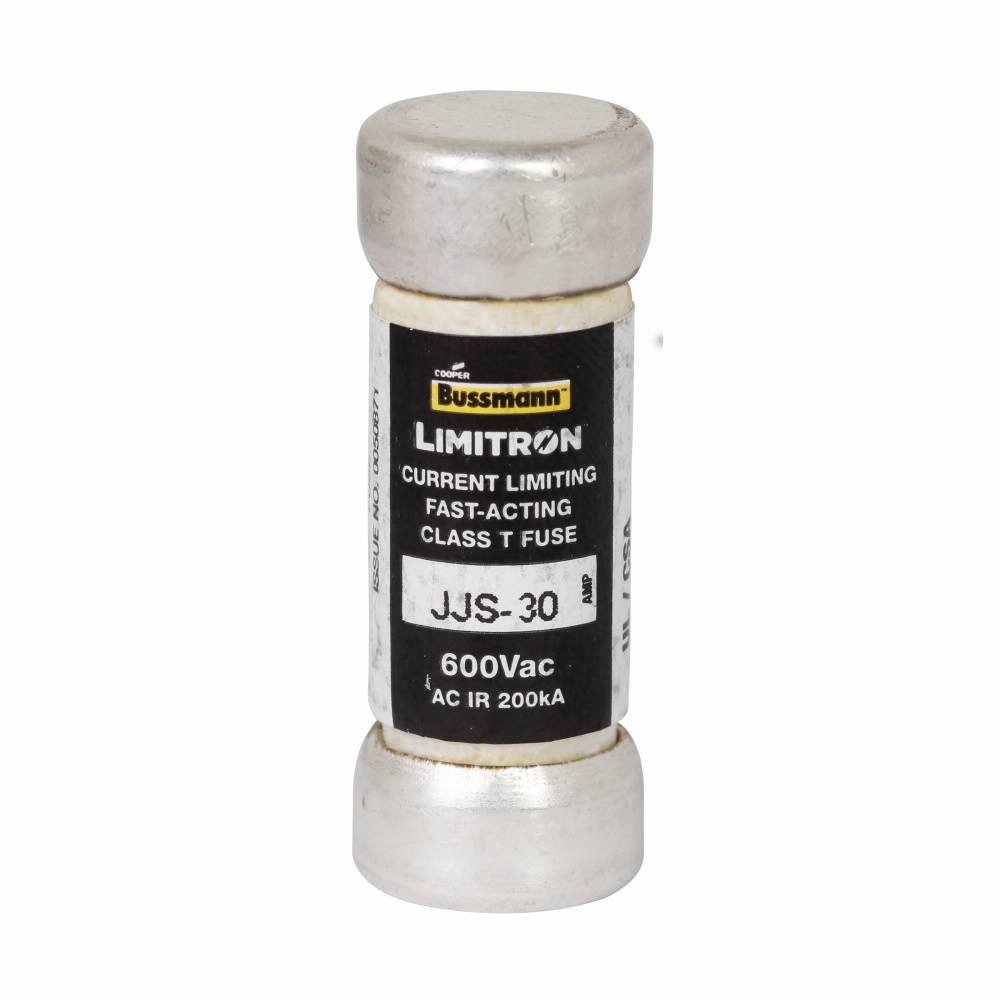

Bussmann Limitron™ Tron® JJS-30 Current Limiting Very Fast Acting Fuse, 30 A, 600 V, 200 kAIC Interrupt, T Class, Cylindrical Body

Short Description

0.56" x 1.5", 600 VAC, 30 A, 200 kA Symmetrical, Ferrule Terminal, Non-Indicating, Current Limiting, Class T, Fast Acting Fuse

Bussmann Limitron™ Tron® Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 600 V, 200 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 1.5 in L Body Size

MFG #: JJS-30

EECO #: BUJJS30

Brand: Bussmann
UPC #: 051712628006
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Approval
UL, CSA C22.2, CE
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection Applications
Mounting Type
Holder
Terminal Type
Ferrule End
Current Rating
30 Amp
Voltage Rating
600
Characteristics
Fast Acting, Non-Indicating, Current Limiting
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Current Limiting Very Fast Acting
Series
JJS
Diameter
0.56 Inch
Amperage Rating
30
Features
  • Small footprint allows more efficient use of available space
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating complies with NEC section 110.9 for today's large capacity systems
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
Eaton_Bussmann_00093_1_31_1_32_CAT
Eaton_Bussmann_00116_1_4_DATA
Qty Unit price
Ea
1 $18.21

Slqt
1 $182.10

Stpk
1 $182.10

Unit
1 $182.10
