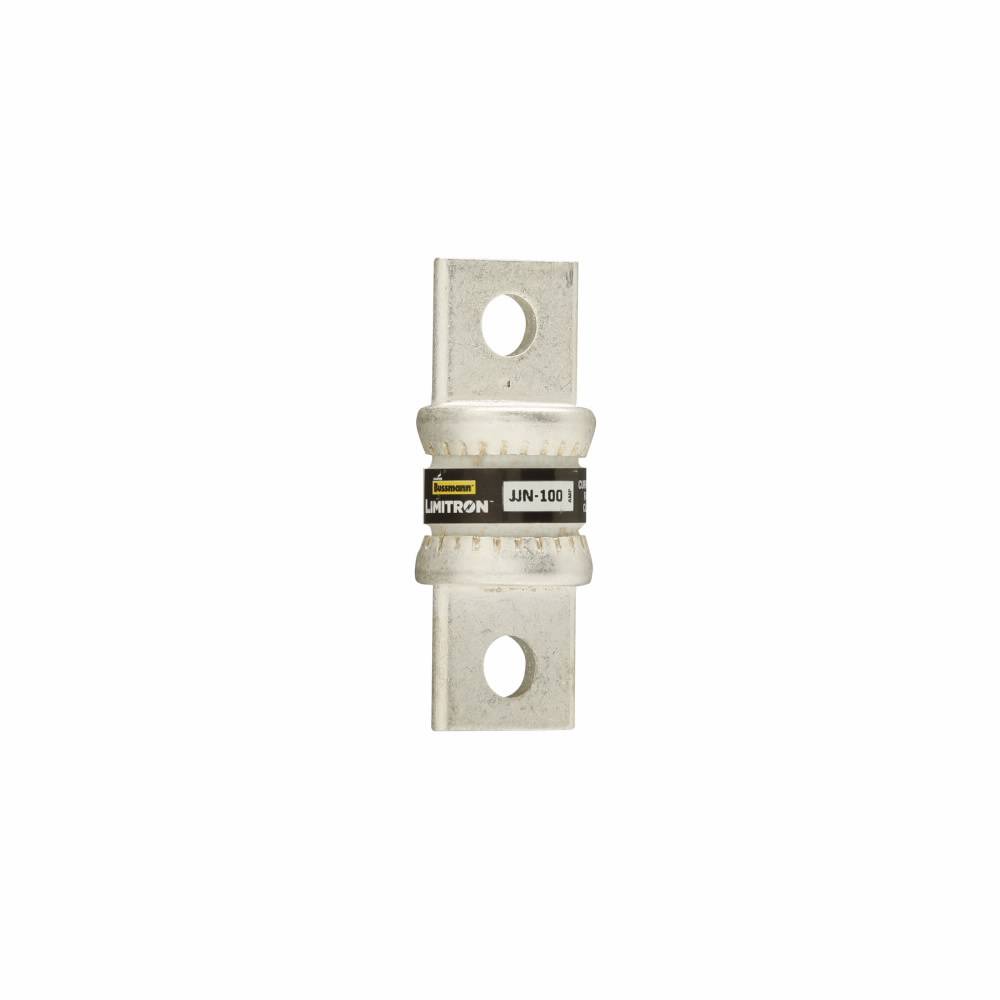

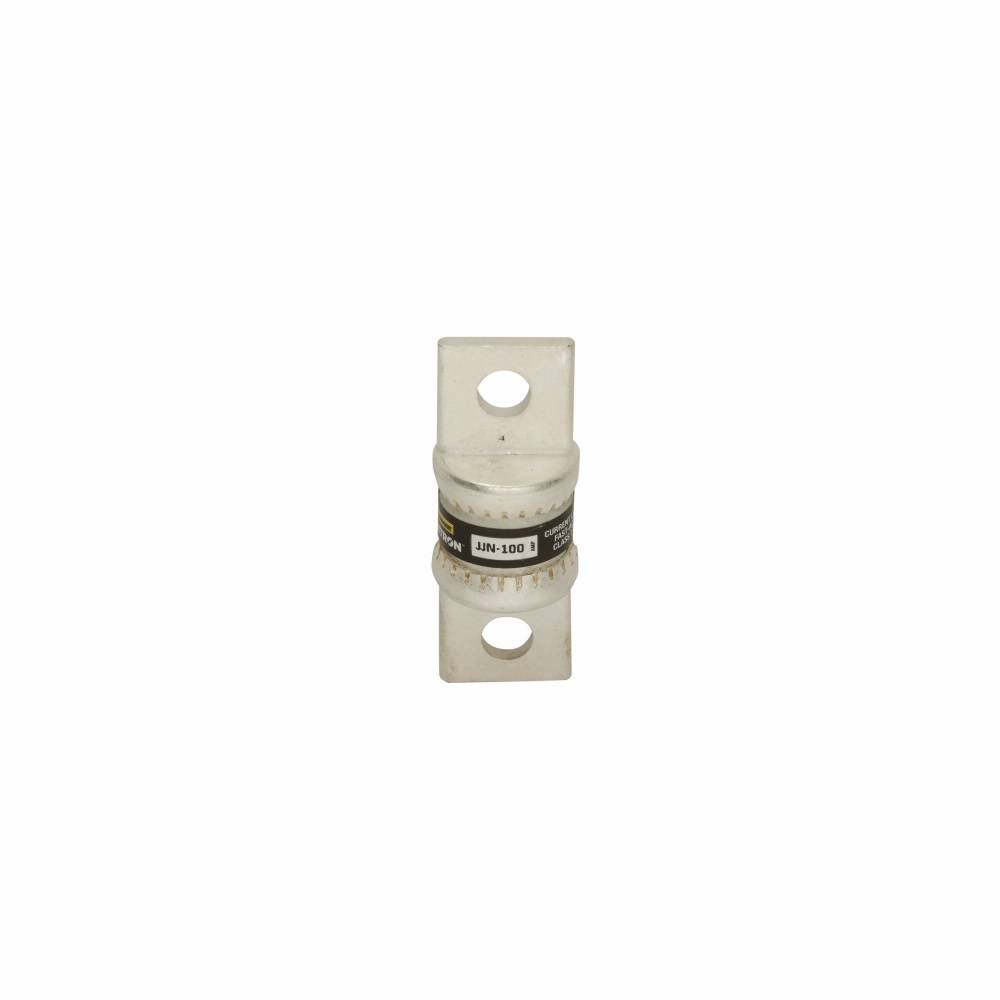

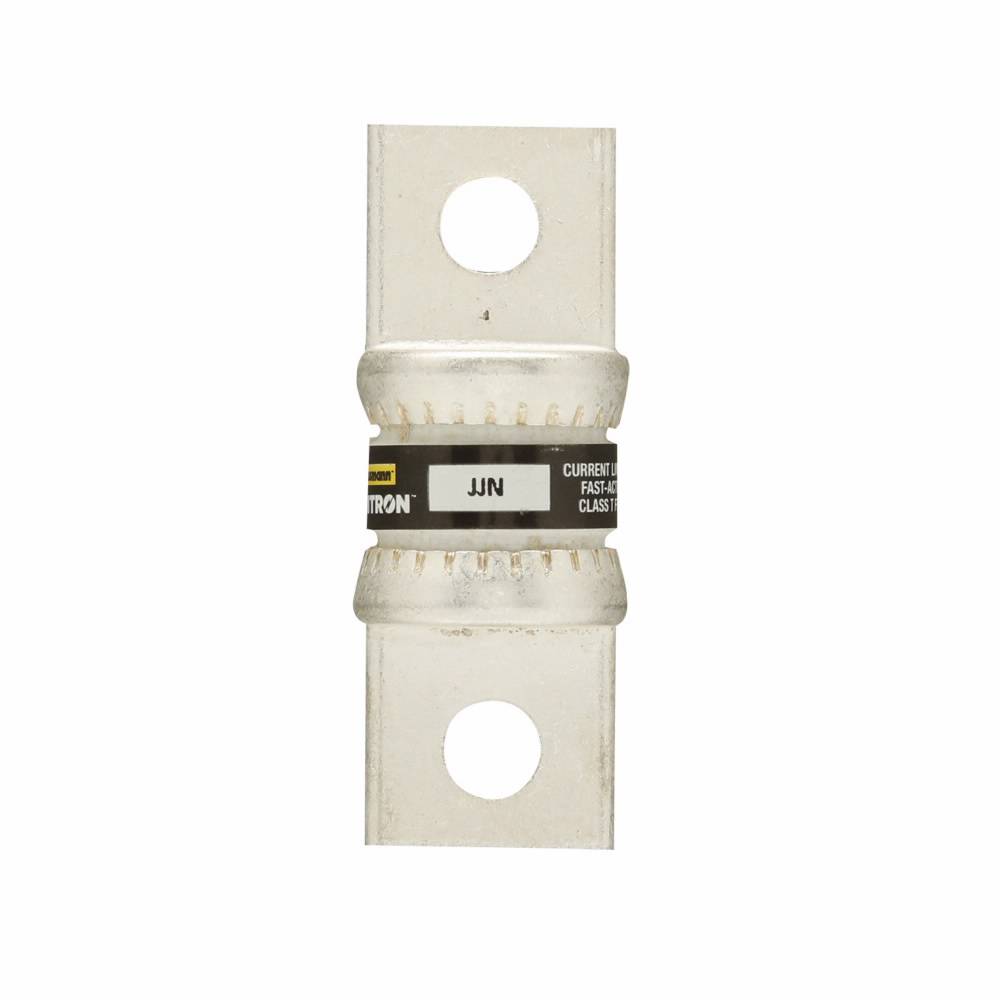

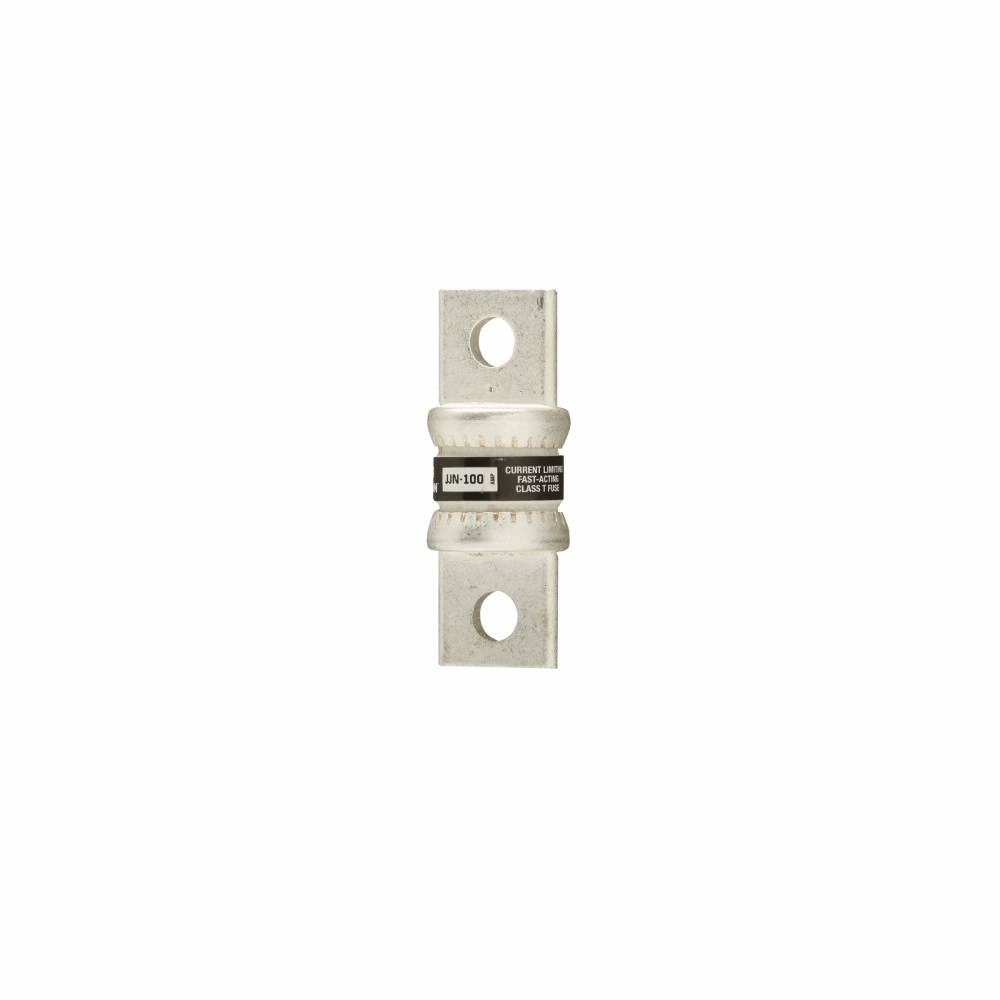

Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Share Share Print Print
Eaton

Bussmann T-Tron® JJN-90 Fast Acting Current Limiting Fuse, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body

Short Description

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Bussmann T-Tron® Fuse, Fast Acting Current Limiting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 90 A, 300 VAC/160 VDC, 20/200 kA Interrupt, Class: T, Bolted Blade Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 0.75 in Dia x 2.16 in L Body Size
MFG #: JJN-90

EECO #: BUJJN90

Brand: Bussmann
UPC #: 051712627900
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Material
Melamine
Application
Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection, Safety and Security Systems, Industrial and Commercial Applications,
Mounting Type
Holder
Terminal Type
Bolted Blade
Voltage Rating
300 VAC/160 VDC
Type
Fast Acting Current Limiting
Series
JJN
Amperage Rating
90
Features
  • Small footprint allows more efficient use of available space
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating complies with NEC Section 110.9 for today's large capacity systems
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Small, space saving fuses provide a high deg of current limitation on short circuits for excellent component protection
