Bussmann Limitron™ T-Tron® JJN-80 Fast Acting Current Limiting Low Voltage Fuse, 80 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body

Short Description

300 VAC, 160 VDC, 80 A, Blade Terminal, Class T, Very Fast Acting, UL Power Fuse

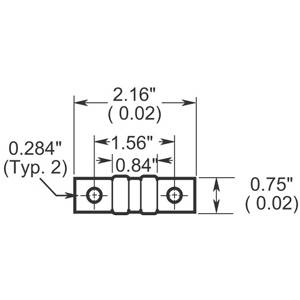

Bussmann Limitron™ T-Tron® Fuse, Fast Acting Current Limiting Low Voltage, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 300 VAC/160 VDC, 20/200 kA Interrupt, Class: T, Bolted Blade Terminal, Holder Mount, Cartridge Body, Single Element, Melamine, 0.75 in Dia x 2.16 in L Body Size

MFG #: JJN-80

EECO #: BUJJN80

Brand: Bussmann
UPC #: 051712627801
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Approval
UL 248-15, CSA C22.2, CE
Material
Melamine
Application
Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection, Safety and Security Systems
Mounting Type
Holder
Terminal Type
Bolted Blade
Current Rating
80 Amp
Voltage Rating
300 VAC/160 VDC
Characteristics
Very Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical), 20 Kiloamp (DC)
Type
Fast Acting Current Limiting Low Voltage
Series
JJN
Diameter
0.75 Inch
Amperage Rating
80
Features
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating provides high ratings at all circuit locations
  • Small footprint allows more efficient use of available space
COBUSSE01842_1_3
COBUSSE02627_1_32
EATCORE56200_1
Qty Unit price
Ea
1 $34.18

Slqt
1 $34.18

Stpk
1 $170.90

Unit
1 $34.18
