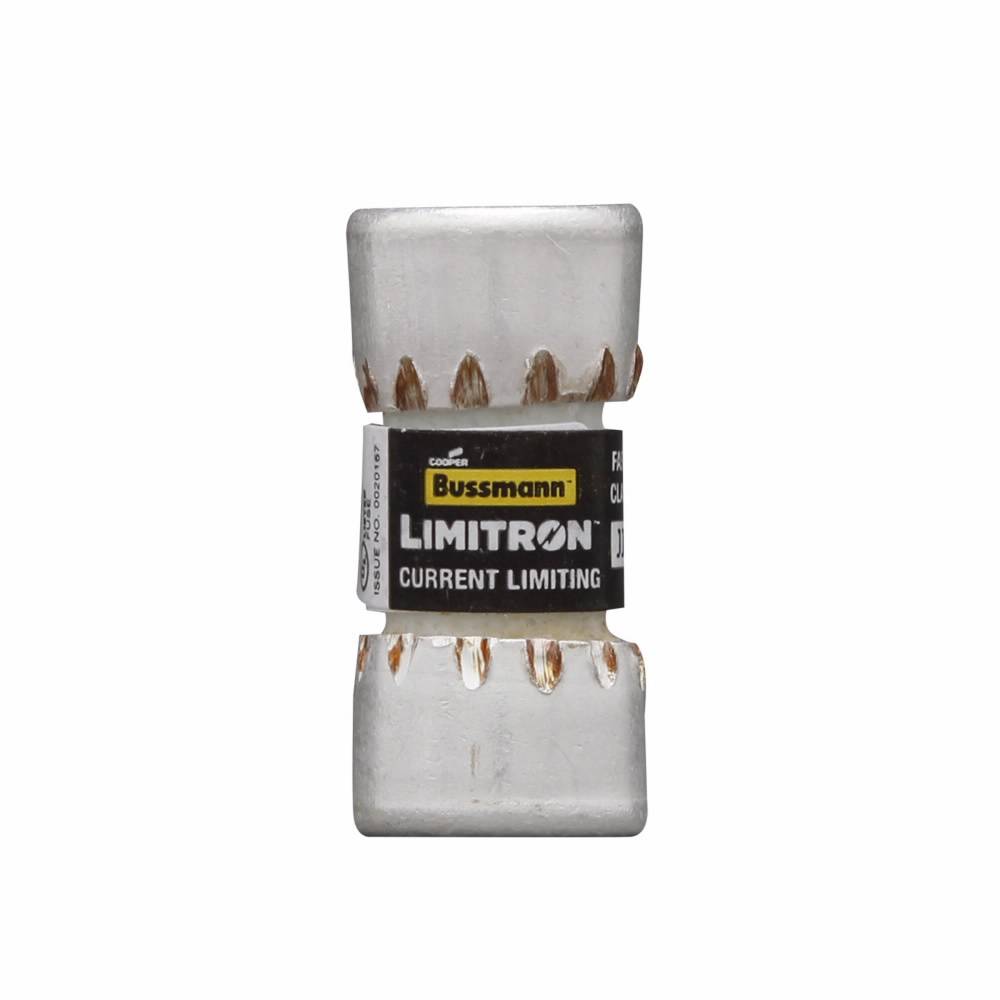

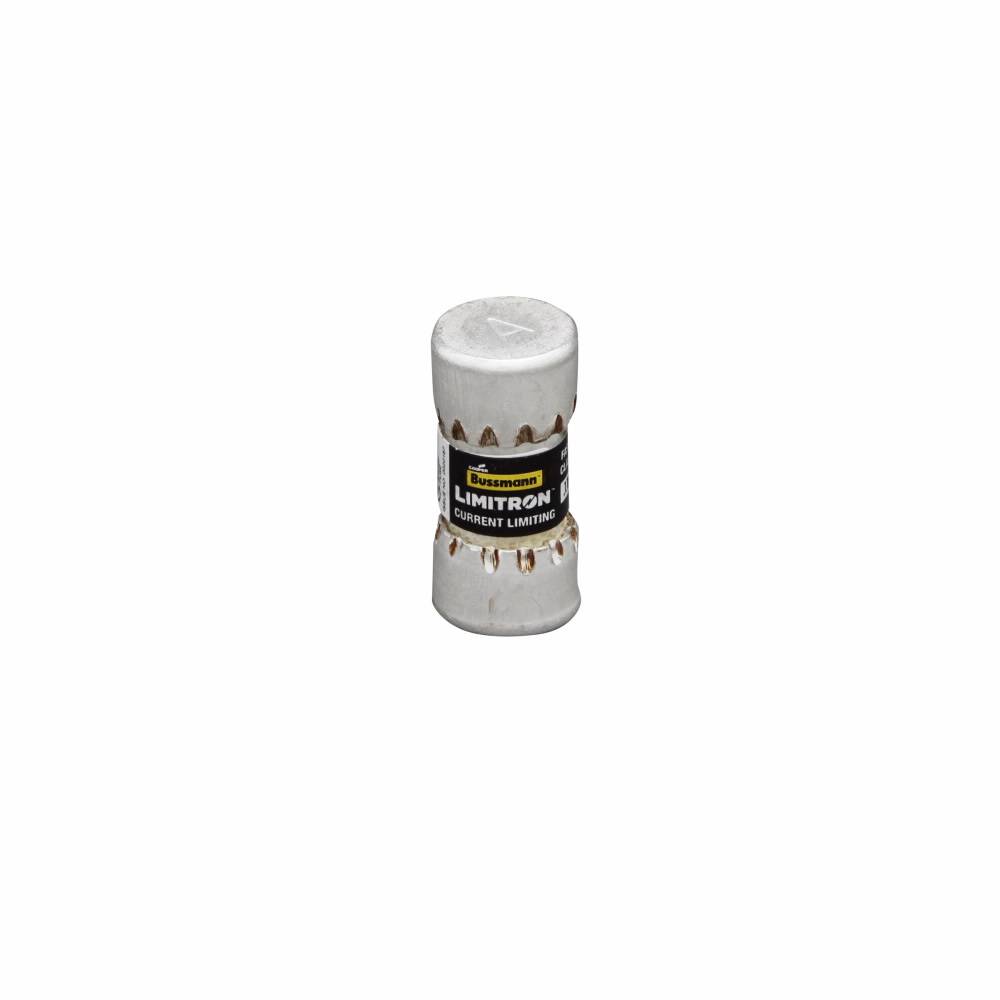

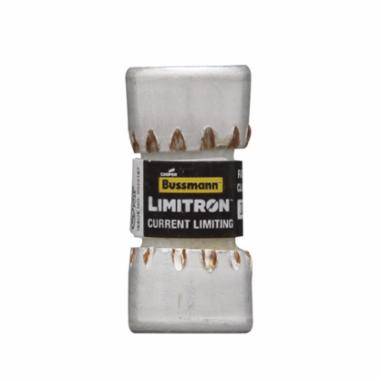

Bussmann T-Tron® JJN-30 Fast Acting Current Limiting Fuse, 30 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cylindrical Body

Short Description

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Bussmann T-Tron® Fuse, Fast Acting Current Limiting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 300 VAC/160 VDC, 20/200 kA Interrupt, Class: T, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.41 in Dia x 0.88 in L Body Size
MFG #: JJN-30

EECO #: BUJJN30

Brand: Bussmann
UPC #: 051712627009
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Material
Melamine
Application
Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection, Safety and Security Systems, Industrial and Commercial Applications,
Mounting Type
Holder
Terminal Type
Ferrule
Voltage Rating
300 VAC/160 VDC
Type
Fast Acting Current Limiting
Series
JJN
Amperage Rating
30
Features
  • Small footprint allows more efficient use of available space
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating complies with NEC Section 110.9 for today's large capacity systems
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Small, space saving fuses provide a high deg of current limitation on short circuits for excellent component protection
IDW_DOCUMENT_5d193ebc7dca185f1d91135826ecb0e8fb7eae24dfad014cb1d549a5ae086eb4
IDW_DOCUMENT_5c61aaf0ab9b8cdb148b2f249fcd7b13504aa59fd6df5a3f63cf1aa92bc66c6c
JJN_30_Specification_Sheet_01
KLU_1600_Catalog_01
