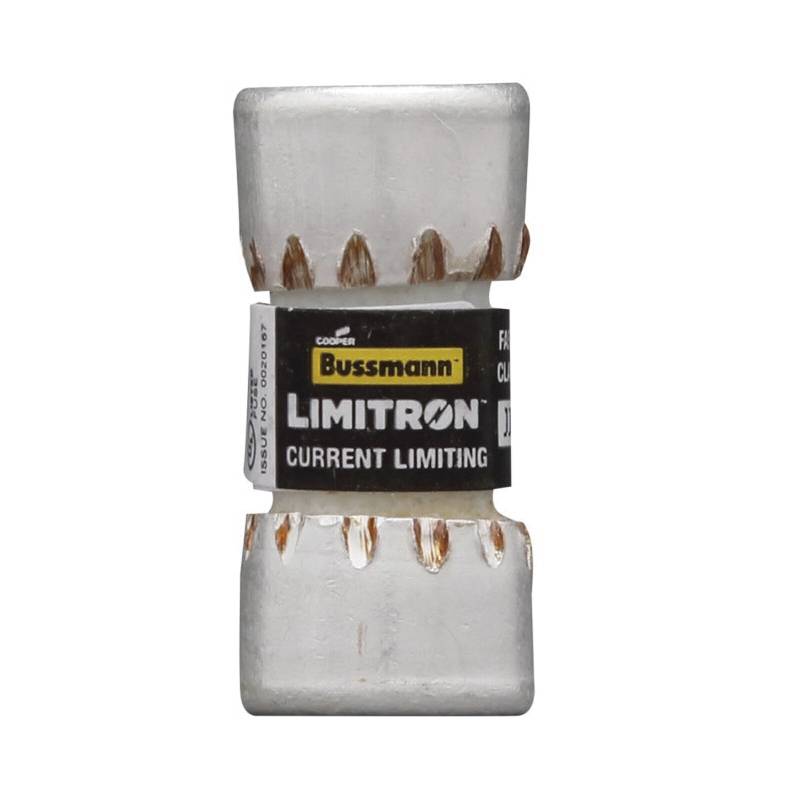

Bussmann Limitron™ T-Tron® JJN-15 Current Limiting Very Fast Acting Fuse, 15 A, 300 VAC/160 VDC, 200/20 kAIC Interrupt, T Class, Cylindrical Body

Short Description

300 VAC, 160 VDC, 15 A, Ferrule, Class T, Very Fast Acting, UL Power Fuse

Bussmann Limitron™ T-Tron® Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 300 VAC/160 VDC, 200/20 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.41 in Dia x 0.88 in L Body Size

MFG #: JJN-15

EECO #: BUJJN15

Brand: Bussmann
UPC #: 051712627153
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Approval
UL 248-15, CSA C22.2, CE
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection and Commercial Applications
Mounting Type
Holder
Terminal Type
Ferrule End
Current Rating
15 amp
Voltage Rating
300 VAC/160 VDC
Characteristics
Very Fast Acting
Interrupting Rating
200 Kiloamp (Symmetrical), 20 Kiloamp (DC)
Type
Current Limiting Very Fast Acting
Series
JJN
Diameter
0.41 Inch
Amperage Rating
15
Features
  • Small footprint allows more efficient use of available space
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating complies with NEC section 110.9 for today's large capacity systems
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
