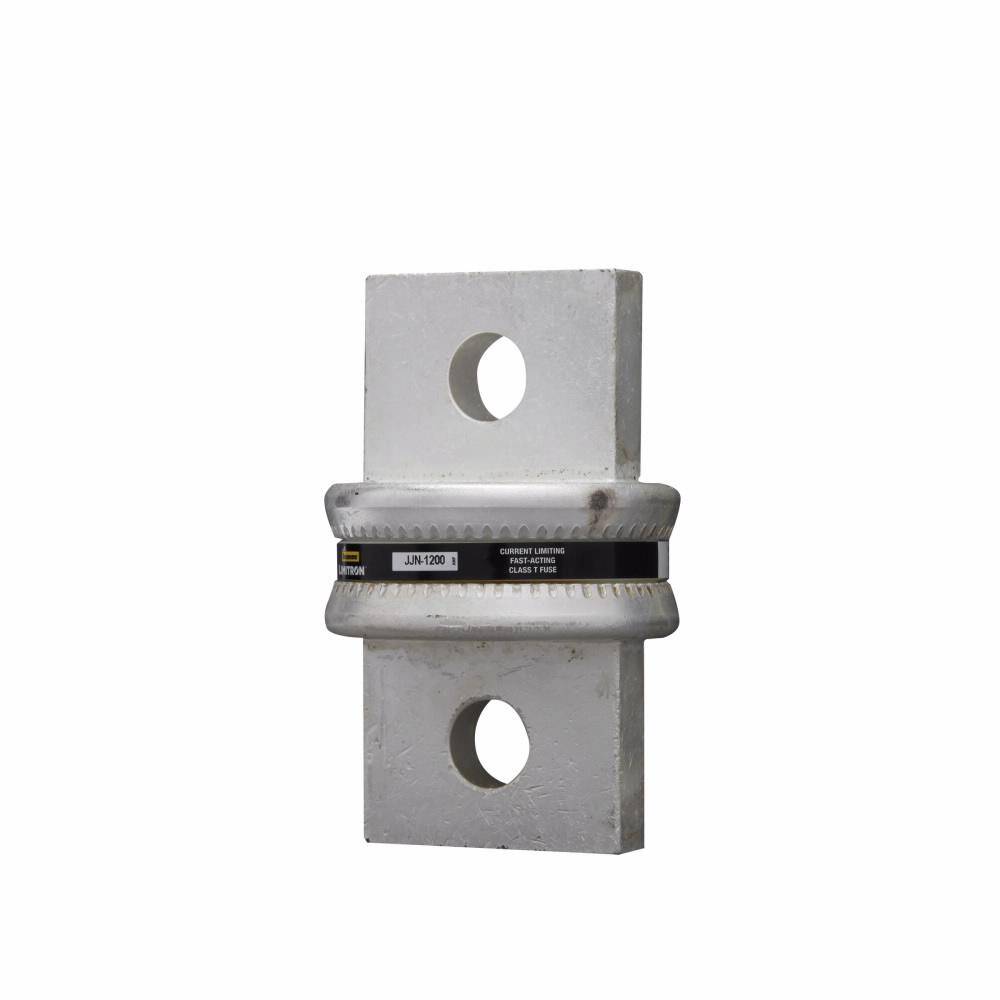

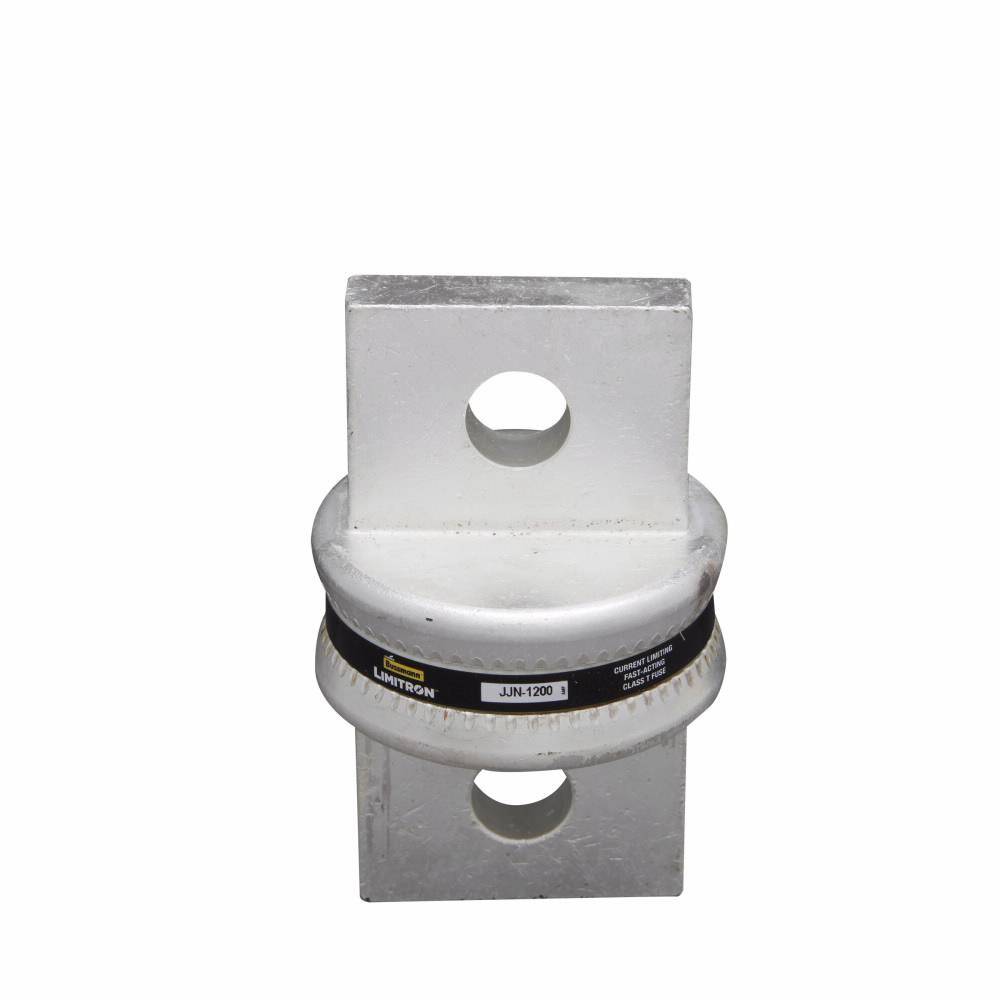

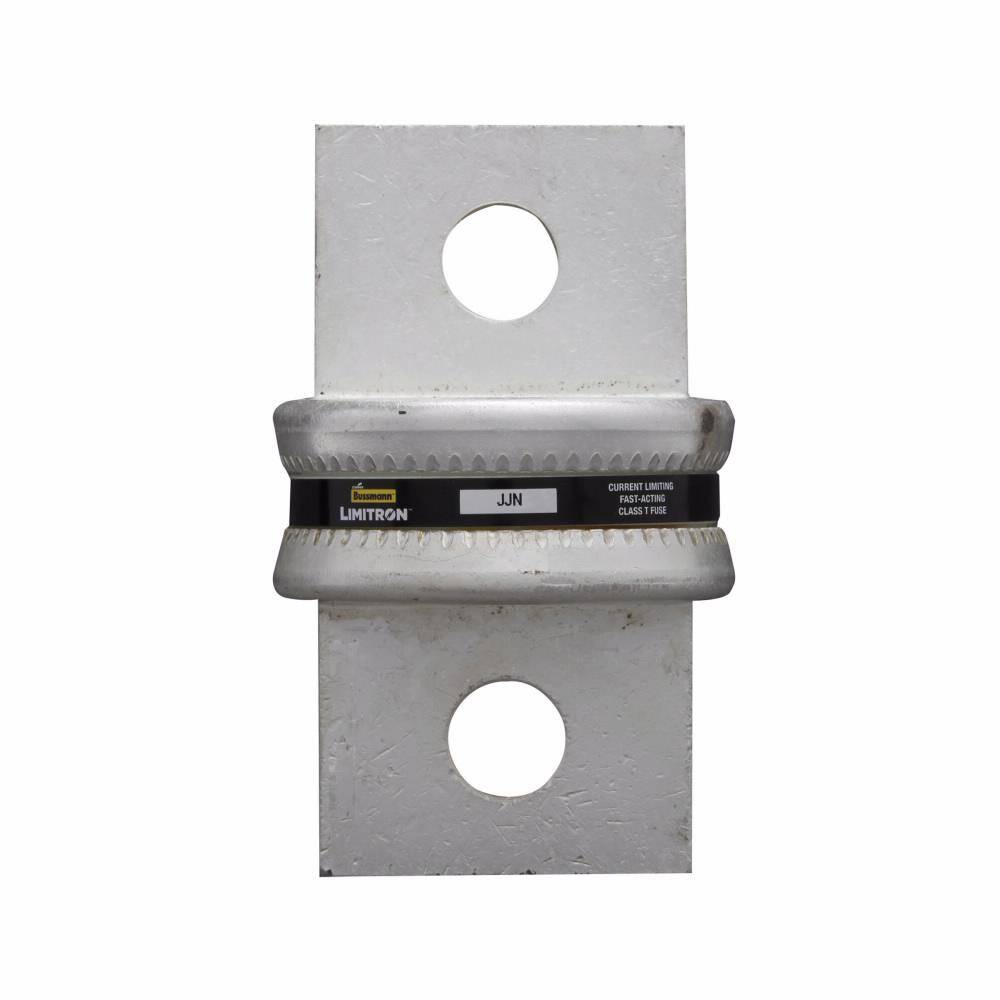

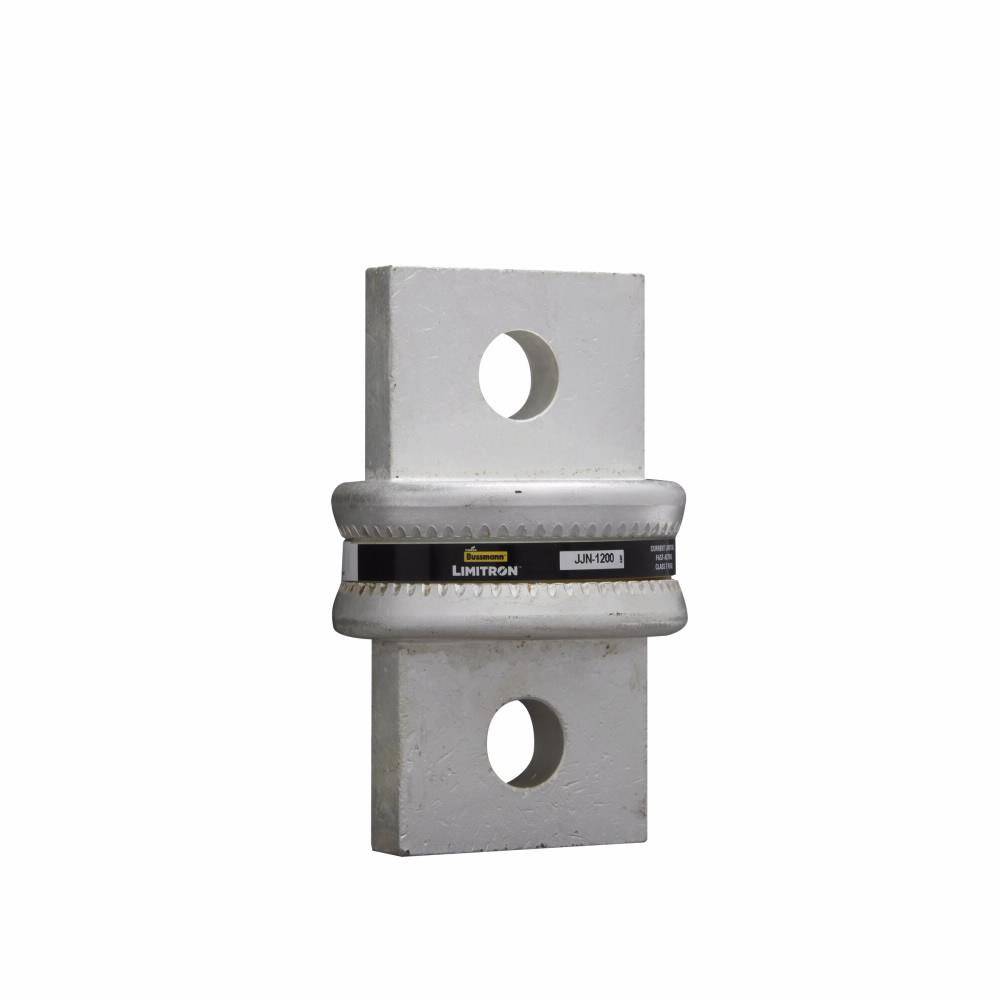

Bussmann Limitron™ T-Tron® JJN-1200 Current Limiting Very Fast Acting Fuse, 1200 A, 300 VAC/170 VDC, 200/100 kAIC Interrupt, T Class, Cartridge Body

Short Description

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Bussmann Limitron™ T-Tron® Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1200 A, 300 VAC/170 VDC, 200/100 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2 in Dia x 4 in L Body Size
MFG #: JJN-1200

EECO #: BUJJN1200

Brand: Bussmann
UPC #: 051712627238
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Material
Melamine
Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection and Commercial Applications
Mounting Type
Holder
Terminal Type
Bolted Blade End
Voltage Rating
300 VAC/170 VDC
Type
Current Limiting Very Fast Acting
Series
JJN
Amperage Rating
1200
Features
  • Small footprint allows more efficient use of available space
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 kA interrupt rating complies with NEC section 110.9 for today's large capacity systems
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
