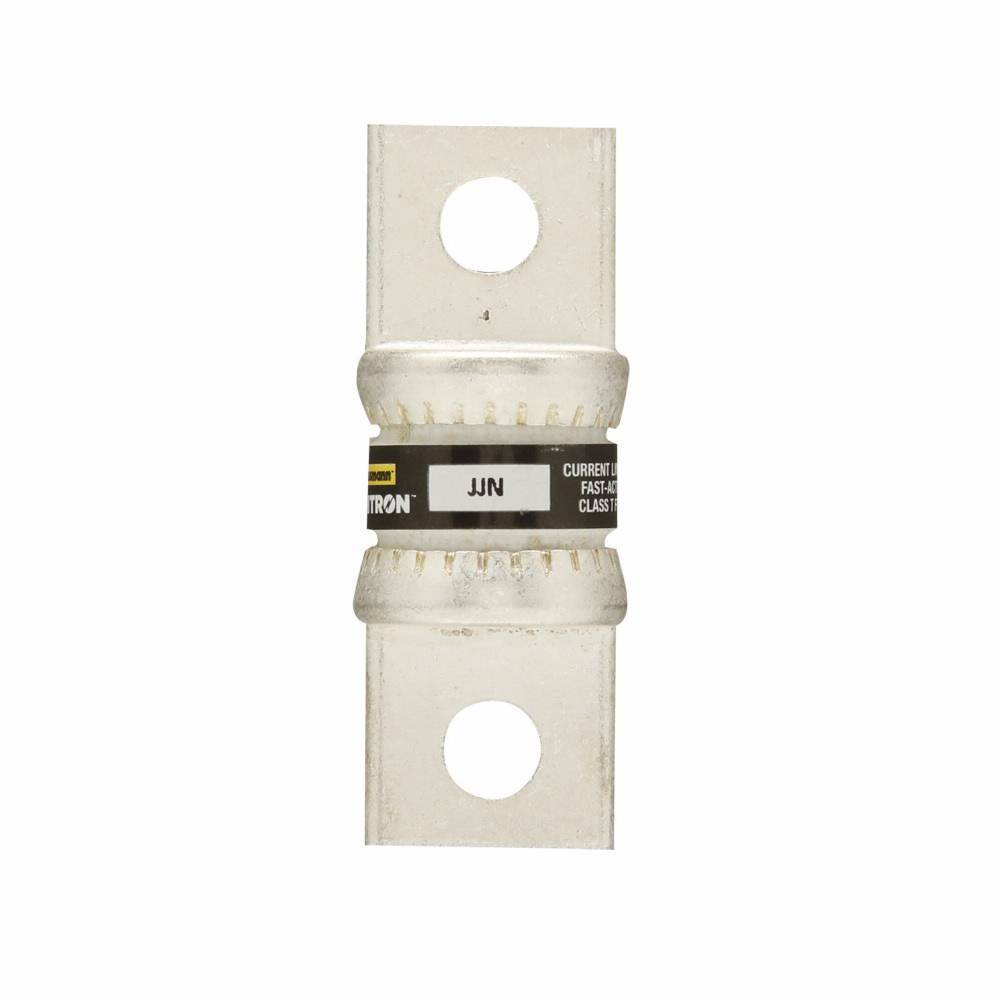

Bussmann Limitron™ T-Tron® JJN-100 JJN Current Limiting Low Voltage Fast Acting Fuse, 100 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body
Share Share Print Print
Eaton

Bussmann Limitron™ T-Tron® JJN-100 JJN Current Limiting Low Voltage Fast Acting Fuse, 100 A, 300 VAC/160 VDC, 20/200 kA Interrupt, T Class, Cartridge Body

Short Description

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for today s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Bussmann Limitron™ T-Tron® Fast Acting Fuse, Current Limiting Low Voltage, Series: JJN, Non-Indicating, Non-Rejection, 100 A, 300 VAC/160 VDC, 20/200 kA Interrupt, Class: T, Bolted Blade Terminal, Holder Mounting, Cartridge Body, Single Element, Melamine, 0.75 in Dia x 2.16 in L Body
MFG #: JJN-100

EECO #: BUJJN100

Brand: Bussmann
UPC #: 051712627023
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121626
Material
Melamine
Application
Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection
Mounting Type
Holder
Terminal Type
Bolted Blade
Voltage Rating
300 VAC/160 VDC
Type
Current Limiting Low Voltage
Series
JJN
Amperage Rating
100
Features
  • Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
  • Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
  • 200 ka interrupt rating provides high ratings at all circuit locations
  • Small footprint allows more efficient use of available space
IDW_DOCUMENT_5c61aaf0ab9b8cdb148b2f249fcd7b13504aa59fd6df5a3f63cf1aa92bc66c6c
IDW_DOCUMENT_7e264d7f4db26ff0e4fb336e14687bb7cdd5327458a110c4fad7ed34164b0f3e
IDW_DOCUMENT_f84576075a158523fb3ee4bbf0ca25f7606f734e18bc4738ffc6731c67296188
Bussmann_JJN_100_Specification_Sheet
