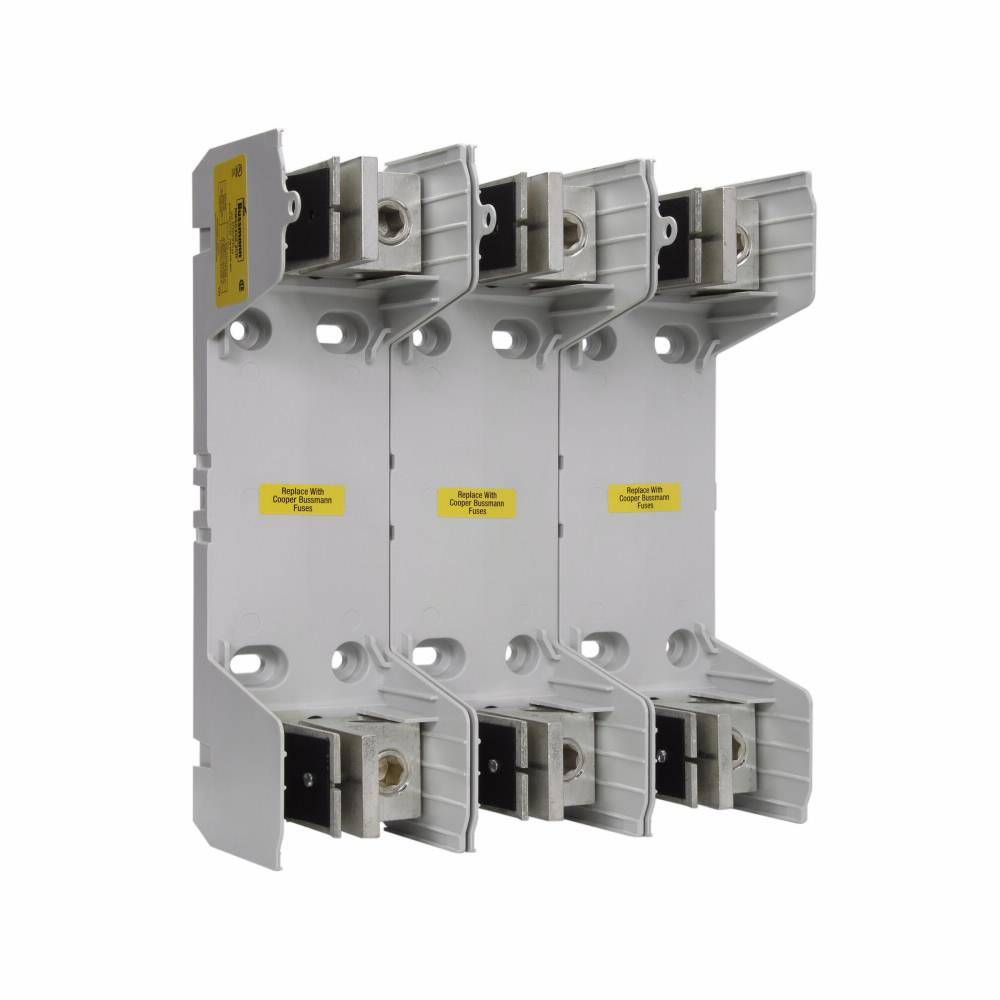

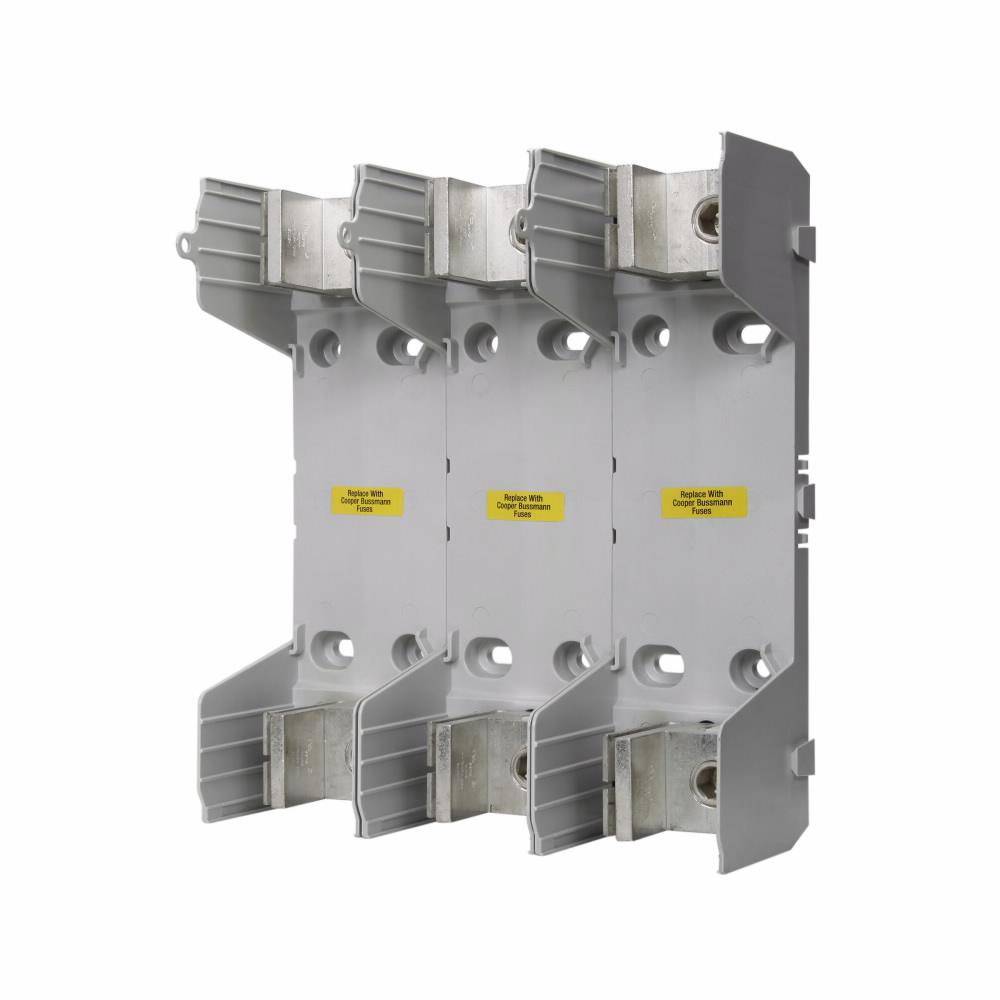

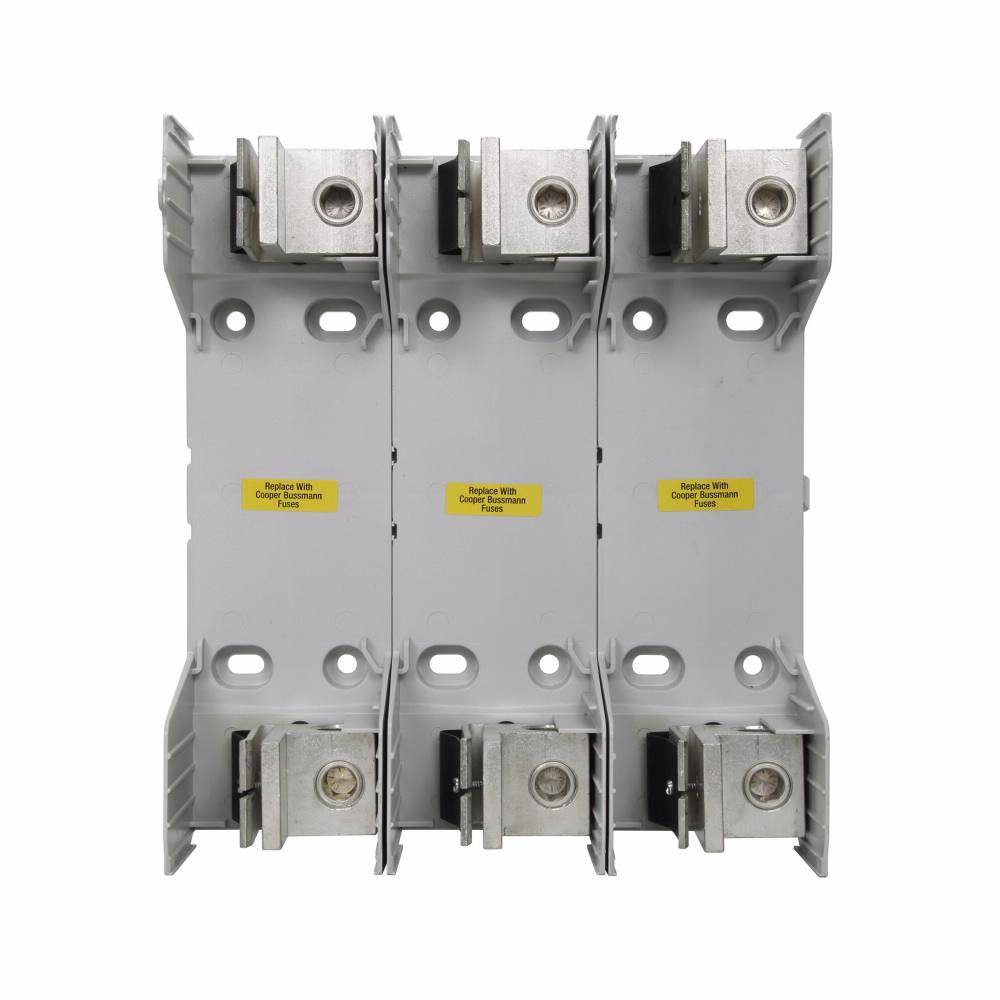

Edison HM60400-3CR 3-Pole Fuse Block, 600 VAC, 225 to 400 A, Class: H, 4 to 3/0 AWG AWG Wire, 3 Poles

Short Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 57% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class H(K) ferrule fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel

Edison Fuse Block, 3-Pole, 600 VAC, 225 to 400 A, 3 Pole, Class: H, 4 to 3/0 AWG AWG Wire, -40 to 120 deg C, For Use With: Modular Knife Blade Fuse, 1.7 in H x 10.7 in W Dimensions
MFG #: HM60400-3CR

EECO #: BUHM604003CR

Brand: Edison
UPC #: 051712386968
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
600 kcmil, 4 AWG to 500 kcmil, 4 to 3/0 AWG
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
Panel
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
3-Pole
Series
HM Series
Dimensions
1.7 in H x 10.7 in W
Amperage Rating
225 to 400
Suitable For Use With
Modular Knife Blade Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Standard phase barriers between poles for additional safety
