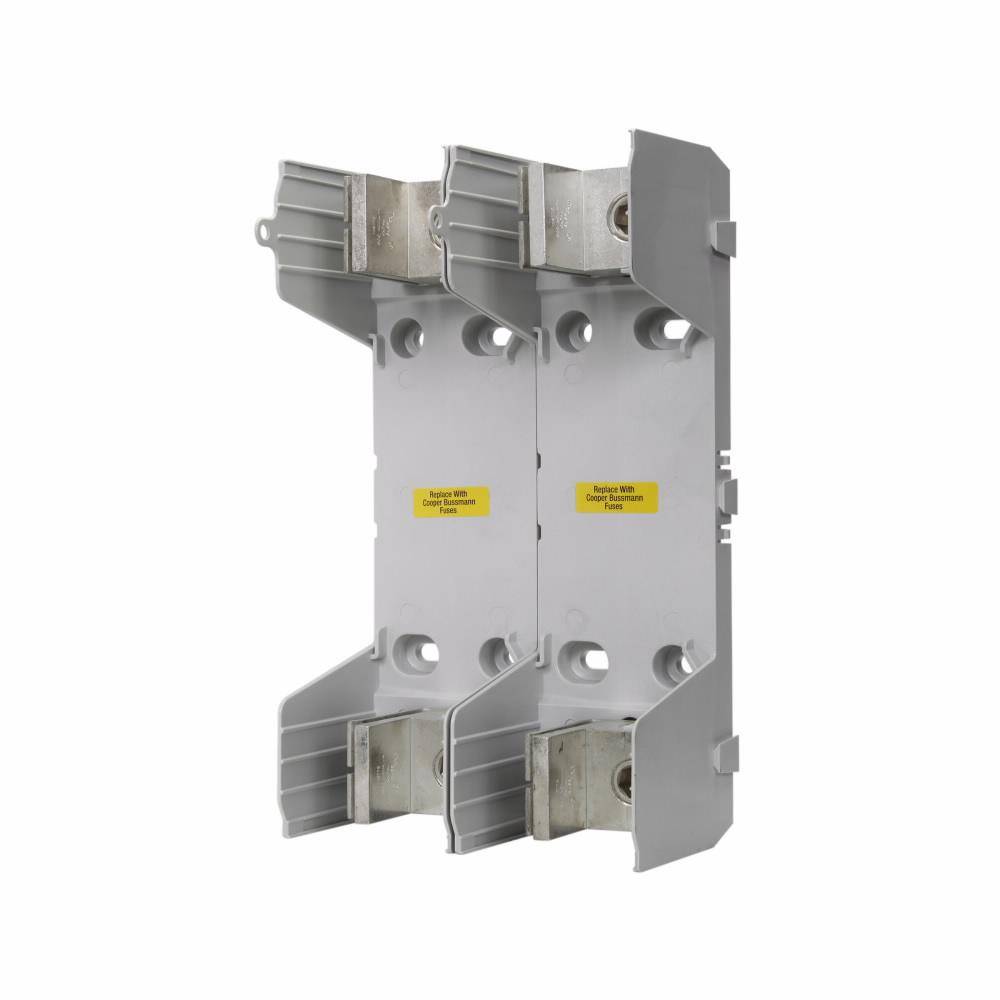

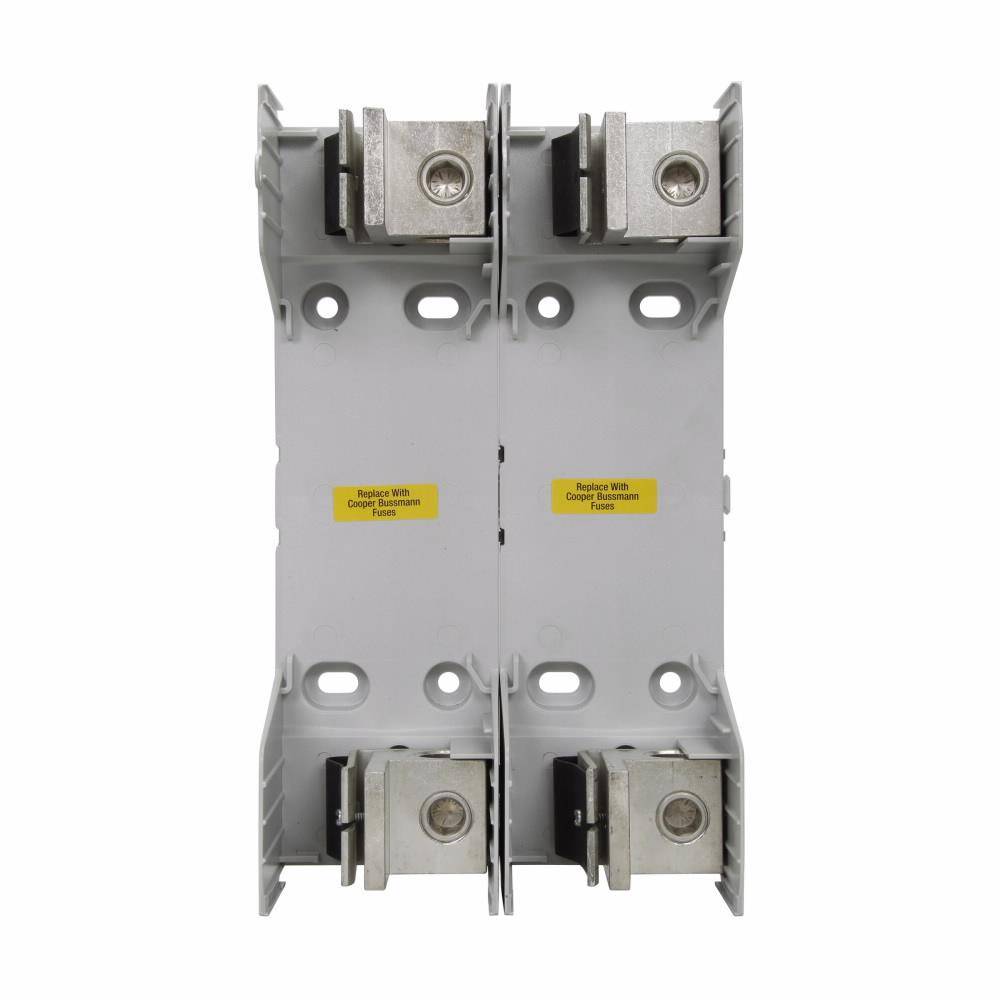

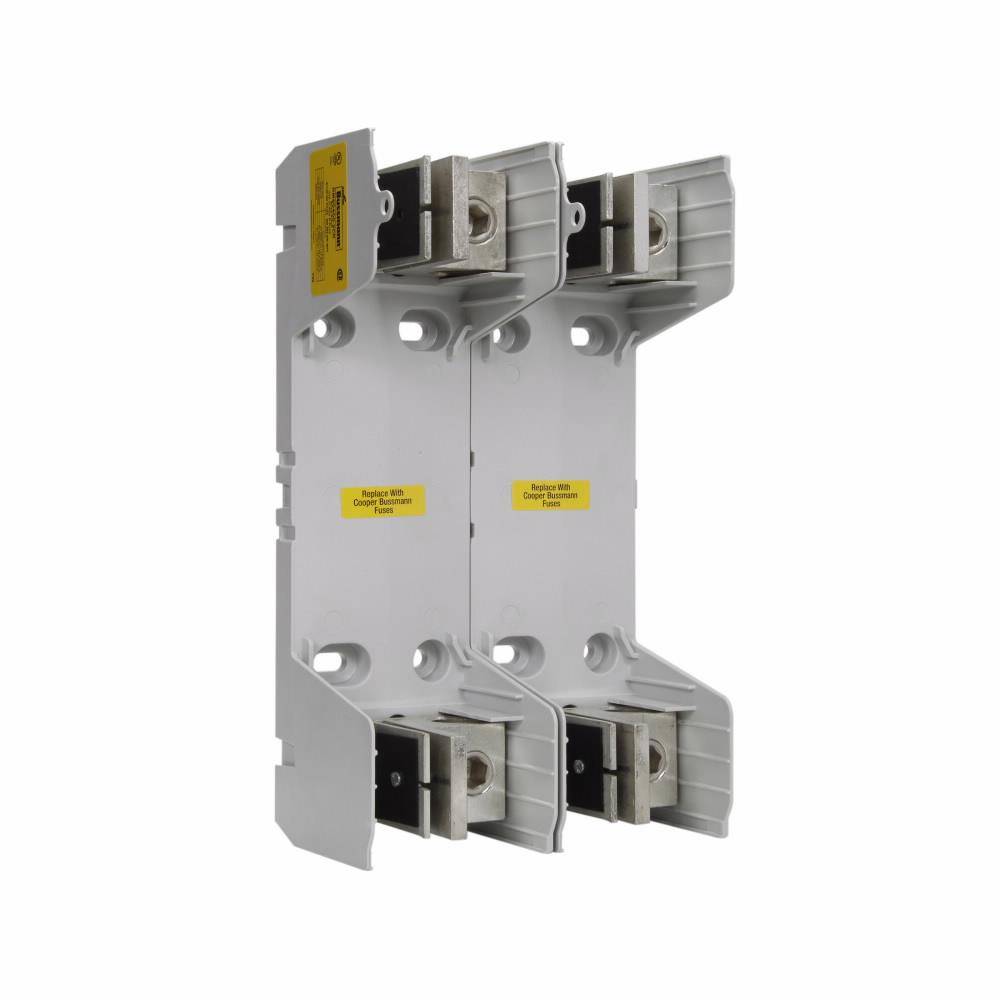

Edison HM60400-2CR HM600 Modular Fuse Block, 600 VAC, 225 to 400 A, H Class, 4 AWG to 600 kcmil Wire, 2 Poles

Short Description

Class H(K) modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class H(K) fuse amp range. All blocks are available as snap together 1-pole versions for tool less assembly of multiple poles at point of use or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Modular, Series: HM600, 600 VAC, 225 to 400 A, 2 Poles, Class: H, Fuse Holder Code: T, Box Lug, 4 AWG to 600 kcmil Wire, Panel Mount, 11.63 in Fuse Length, 2.59/2.38 in Fuse Dia, -40 to 120 deg C, For Use With: NOS Series Knife Blade Fuse, Thermoplastic, 13.2 in L x 3.6 in W x 4.8 in H
MFG #: HM60400-2CR

EECO #: BUHM604002CR

Brand: Edison
UPC #: 051712386951
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
4 AWG to 600 kcmil
Application
Any Panel or Electrical System Applications
Mounting Type
Panel
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
HM600
Dimensions
13.2 in L x 3.6 in W x 4.8 in H
Amperage Rating
225 to 400
Suitable For Use With
NOS Series Knife Blade Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • 2.59 in dia for Fusetron® and Limitron®, 2.38 in dia for Low-Peak® fuses
