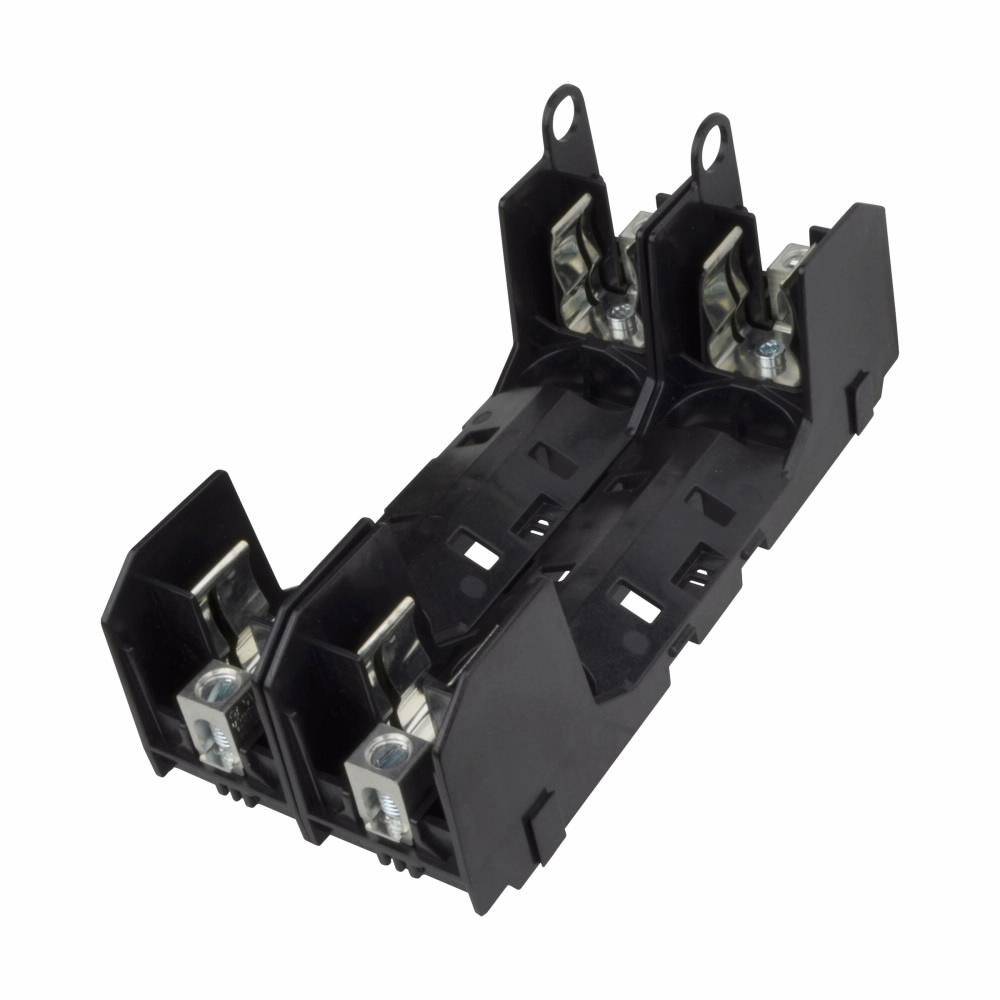

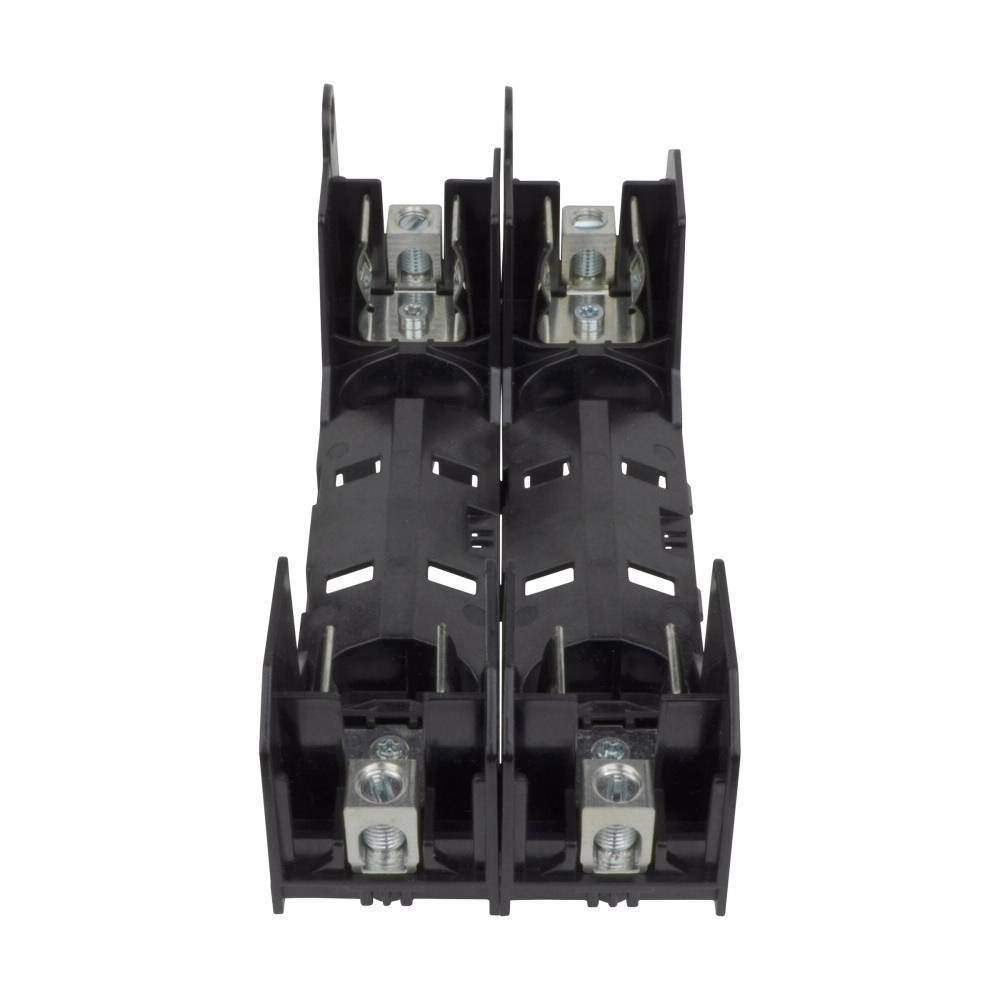

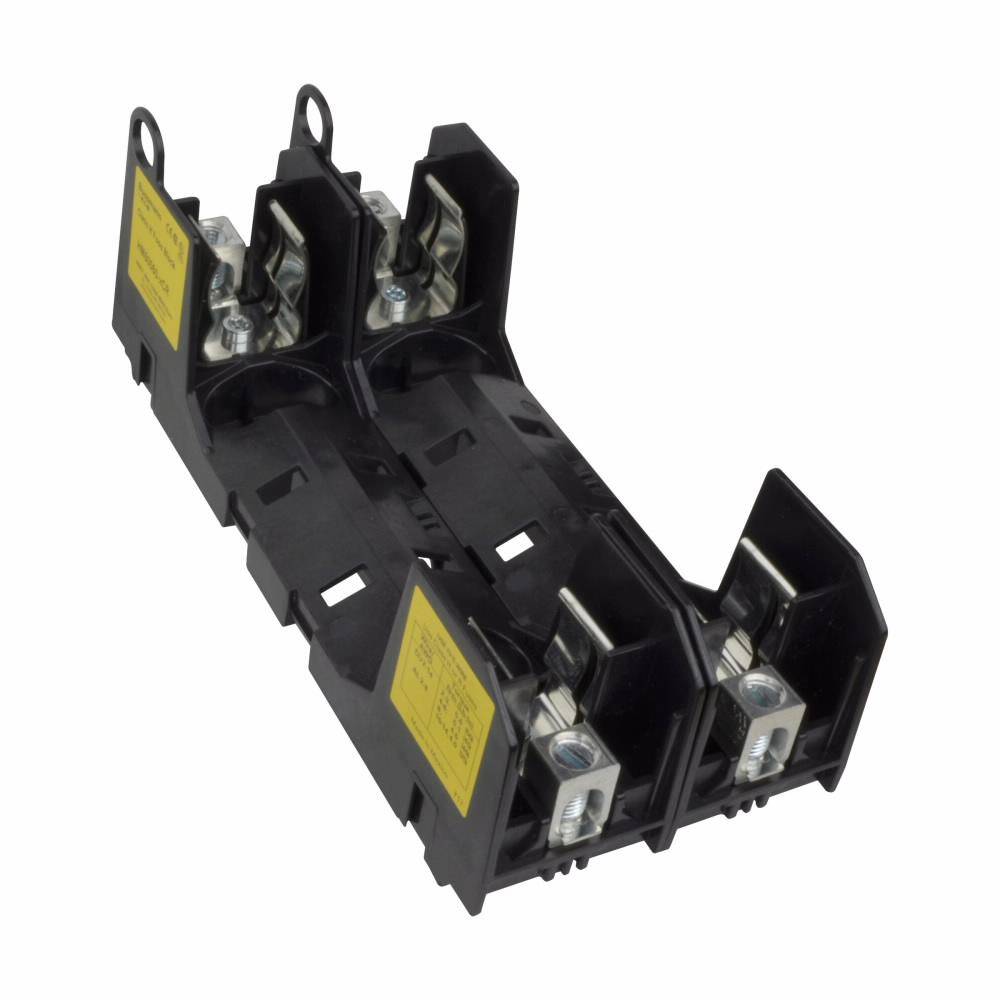

Edison HM60060-2CR Modular Ferrule Fuse Block With Box Lug, 600 V, 60 A, 14 to 2 Cu/8 to 2 AWG Al Wire, 2 Poles

Short Description

HM Class H(K), JM Class J and RM Class R modular ferrule fuse blocks for fuses up to 60 A. The new Bussmann® series fuse blocks contain multiple features that increase versatility, reduce labor and enhance safety for any panel or electrical system design.

Edison Modular Ferrule Fuse Block, Series: HM Series, 600 V, 60 A, 2 Pole, Class: H, 14 to 2 Cu/8 to 2 AWG Al Wire, Panel Mount, -40 to 120 deg C, Thermoplastic, 6.8 in L x 3 in W x 2.6 in H
MFG #: HM60060-2CR

EECO #: BUHM600602CR

Brand: Edison
UPC #: 051712511582
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
14 to 2 Cu/8 to 2 AWG Al
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
Panel
Voltage Rating
600
Temperature Rating
-40 to 120
Type
Modular
Series
HM Series
Dimensions
6.8 in L x 3 in W x 2.6 in H
Amperage Rating
60
Features
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap-together for tool-less assembly of multiple poles at point of use
  • DIN-rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost
  • Save panel space with the smallest width dimension on the market
