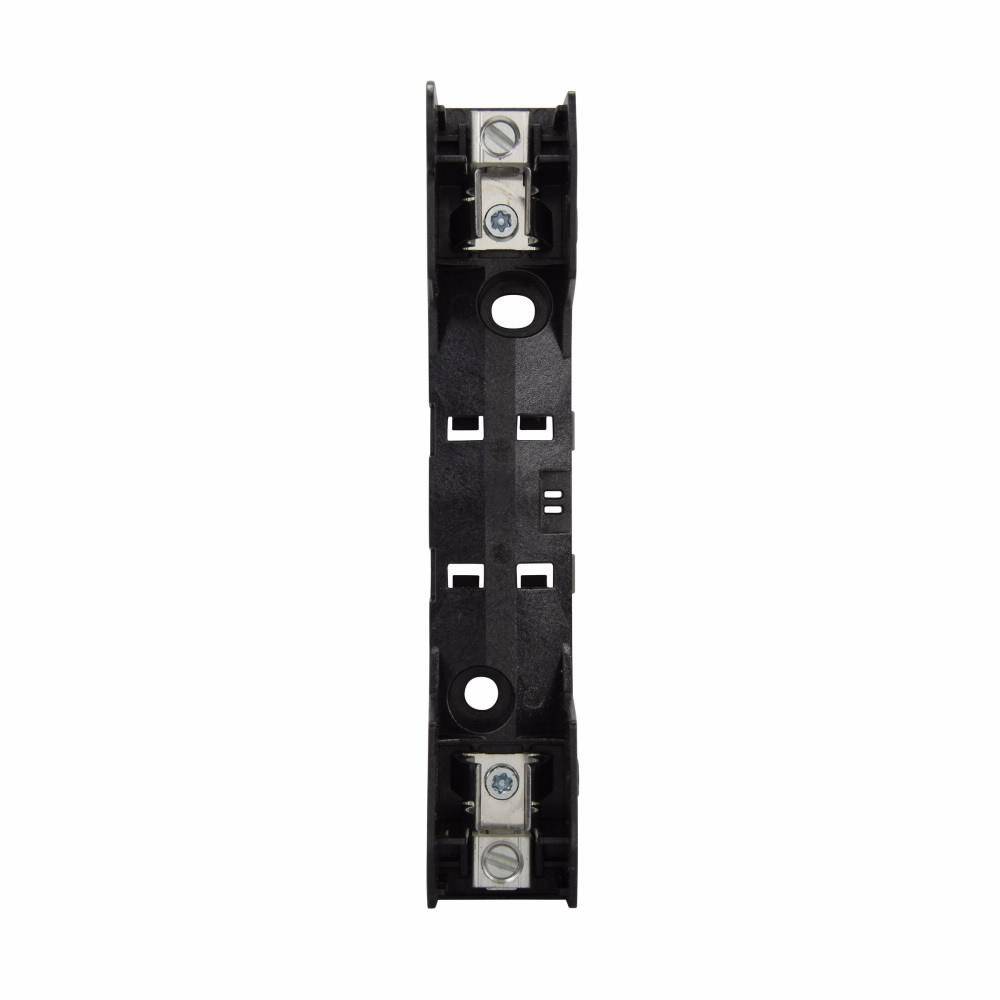

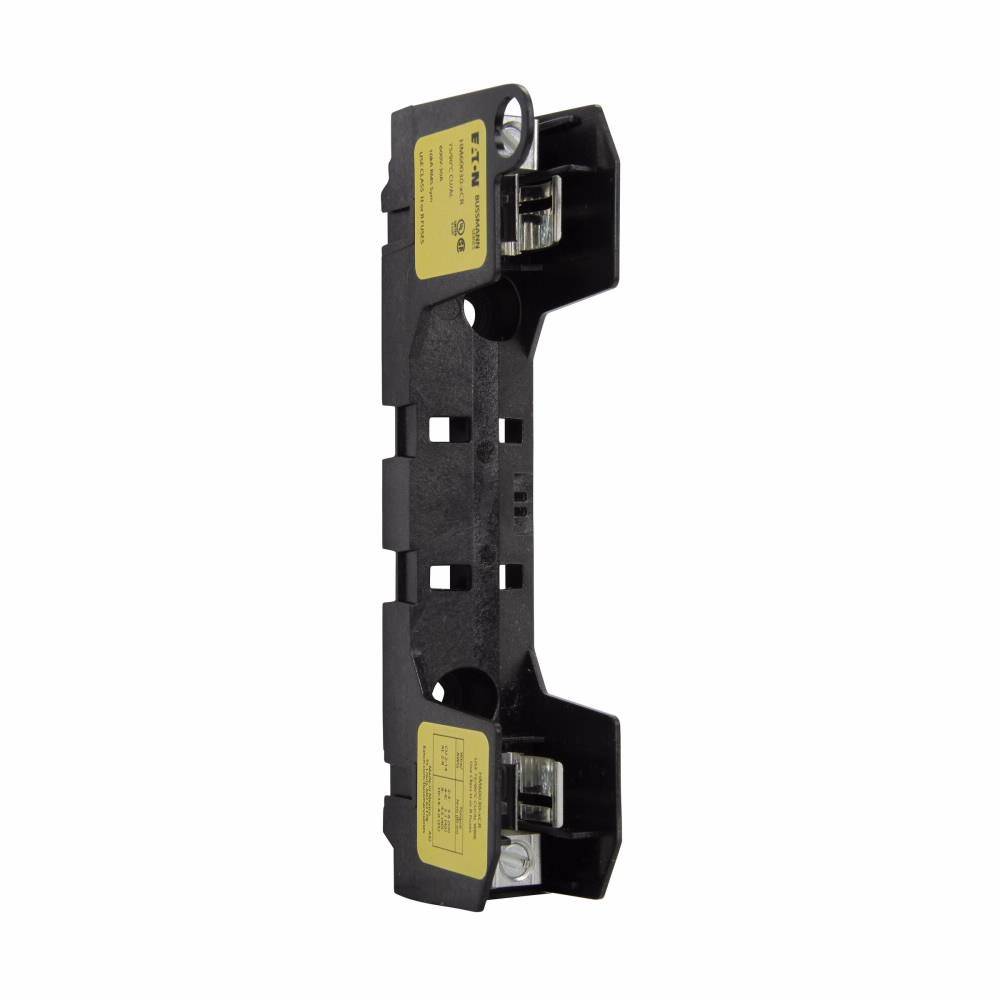

EATON Edison HM60030-1CR Modular Fuse Block, 600 VAC, 30 A, Class: H, 14 to 2 AWG, 8 to 2 AWG Wire, 1 Pole

Short Description

Class H(K) modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class H(K) fuse amp range. All blocks are available as snap together 1-pole versions for toolless assembly of multiple poles at point of use or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

EATON Edison Fuse Block, Modular, Series: HM600, 600 VAC, 30 A, 1 Pole, Class: H, Fuse Holder Code: P, Box Lug Connection, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mounting, 5 in Fuse Length, 0.81 in Diameter Fuse, -40 to 120 deg C, For Use With: NOS Series Ferrule Fuse, Thermoplastic, 6.25 in L x 1.2 in W x 2.3 in H Dimensions
MFG #: HM60030-1CR

EECO #: BUHM600301CR

Brand: Eaton
UPC #: 051712511452
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
14 to 2 AWG, 8 to 2 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
600
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
HM600
Dimensions
6.25 in L x 1.2 in W x 2.3 in H
Amperage Rating
30
Suitable For Use With
NOS Series Ferrule Fuse
Features
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
  • DIN-rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Save panel space with the smallest width dimension on the market
  • Easy circuit identification with available universal marker labels for blocks and covers
  • 14 to 2 AWG copper, 8 to 2 AWG aluminum wire
HM60030_1CR_Specification_Sheet
