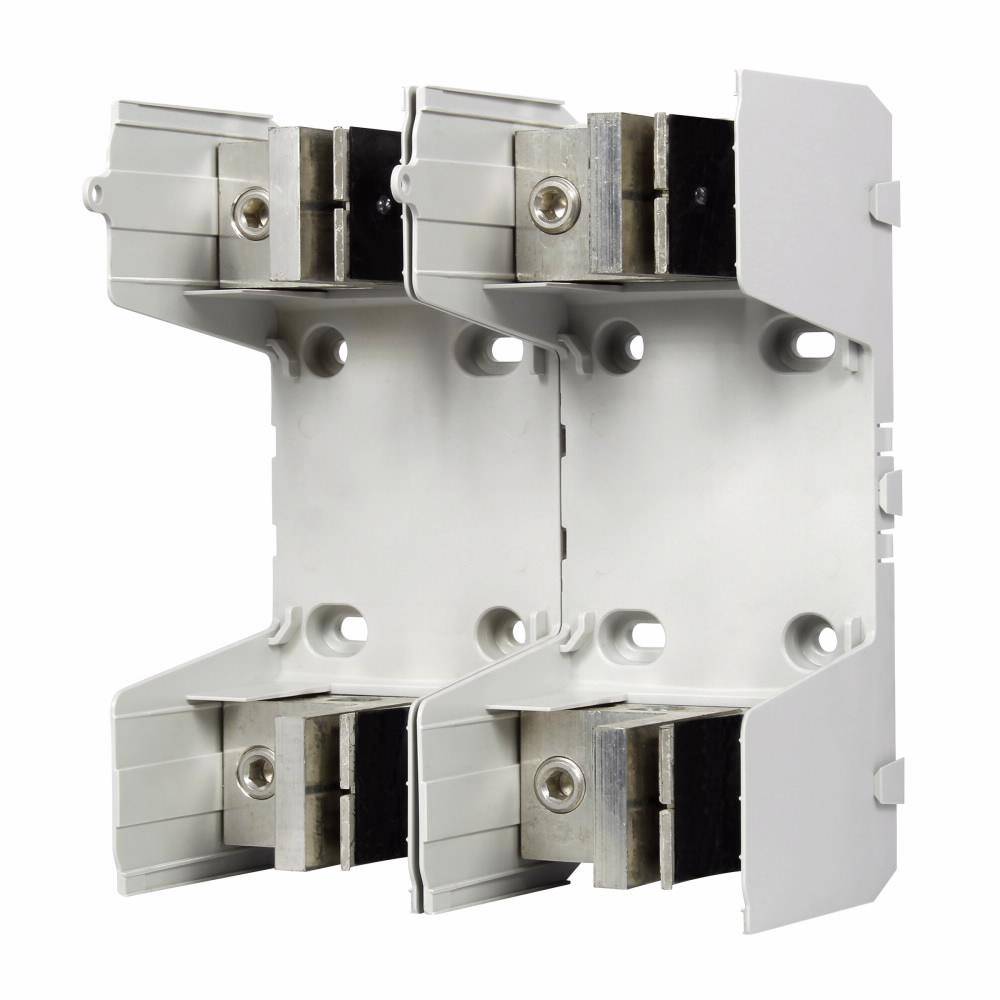

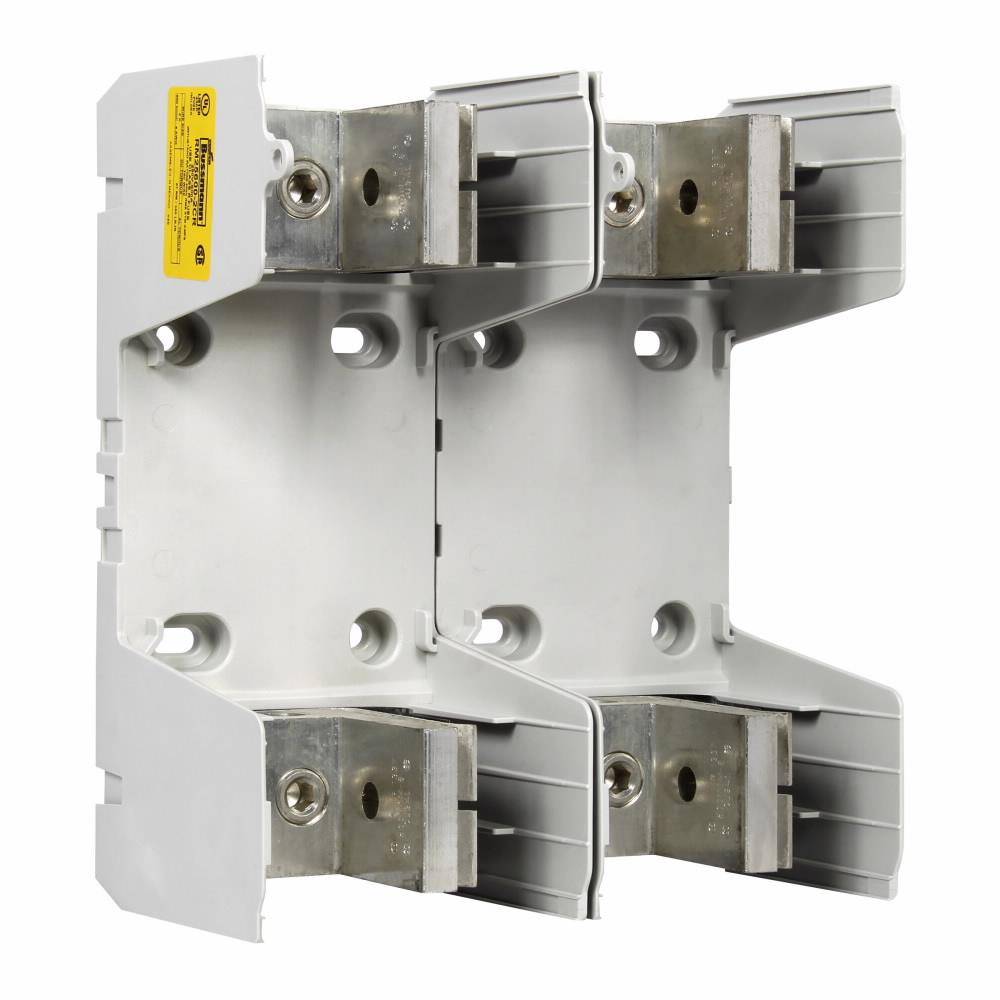

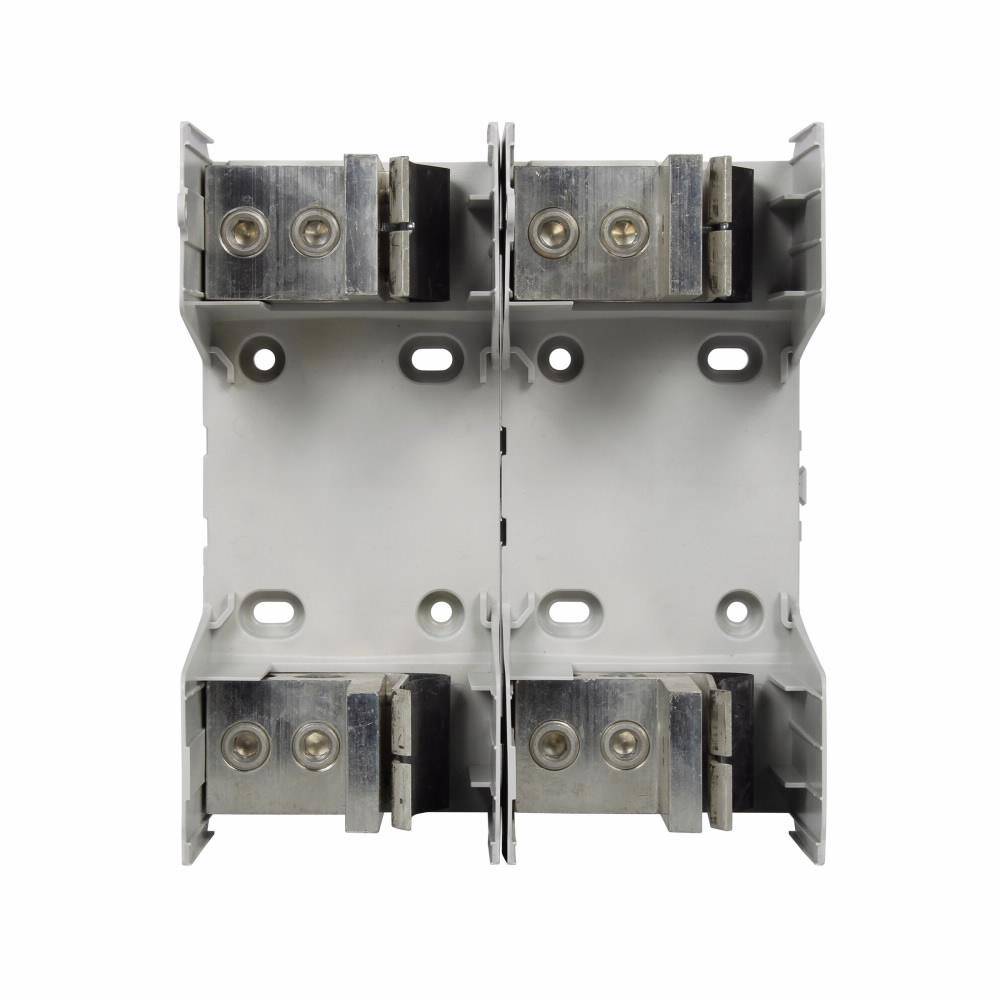

Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles
Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles
Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles
Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles
Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles
Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles
Share Share Print Print
Eaton

Edison HM25600-2CR Knife-Blade Modular Fuse Block, 250 V, 600 A, (2) 4 AWG to 500 kcmil Solid Wire, 2 Poles

Short Description

EATON's Bussmann® series knife blade fuse blocks feature a modular design that allows assembly of the required number of poles at point-of-use. Available for Class H(K), J and R fuses, these panel mount blocks come with features and accessories that improve electrical safety and make installation and maintenance easier. They meet the UL® Industrial Power Circuit creep and clearance requirements per UL 508 and 845, while the 200 to 600 A blocks meet the higher UL Industrial Power Distribution Standards for creep and clearance per UL 69, 98, 489, 869A and 891.

Edison Modular Fuse Block, Knife-Blade, 250 V, 600 A, 2 Pole, Class: H, (2) 4 AWG to 500 kcmil Solid Wire, Panel Mount, -40 to 120 deg C, Thermoplastic, 9.9 in L x 11.4 in W x 6 in H
MFG #: HM25600-2CR

EECO #: BUHM256002CR

Brand: Edison
UPC #: 051712390965
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
(2) 4 AWG to 500 kcmil Solid
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
Panel
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Knife-Blade
Series
HM Series
Dimensions
9.9 in L x 11.4 in W x 6 in H
Amperage Rating
600
Suitable For Use With
NON Series Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
  • Up to 4 mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
HM25600_2CR_Specification_Sheet
