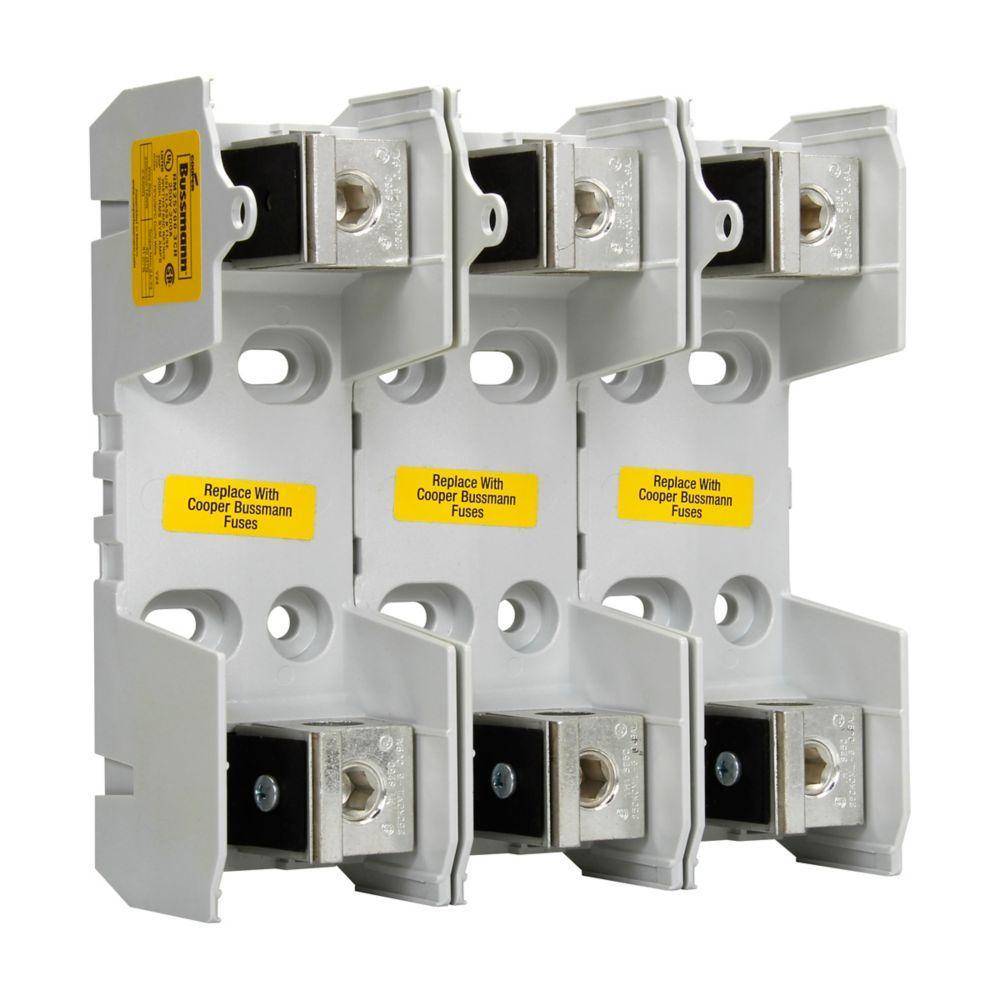

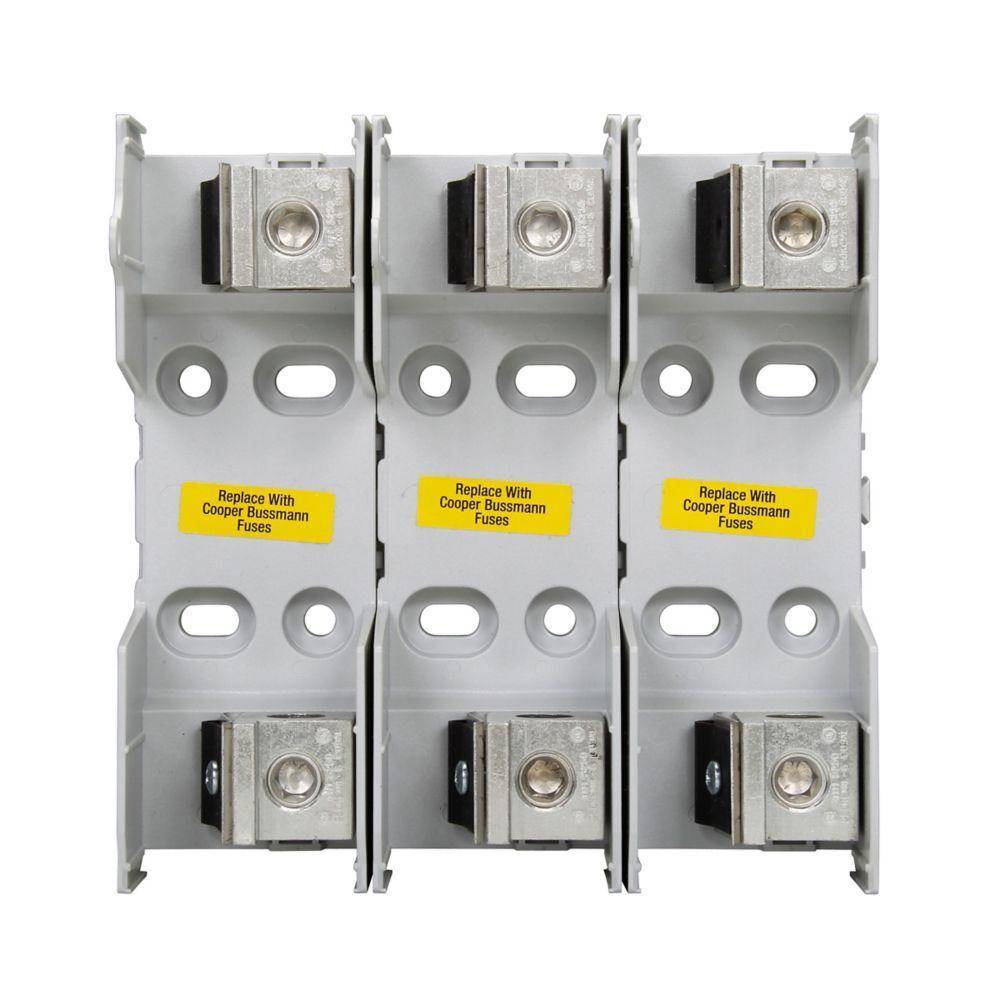

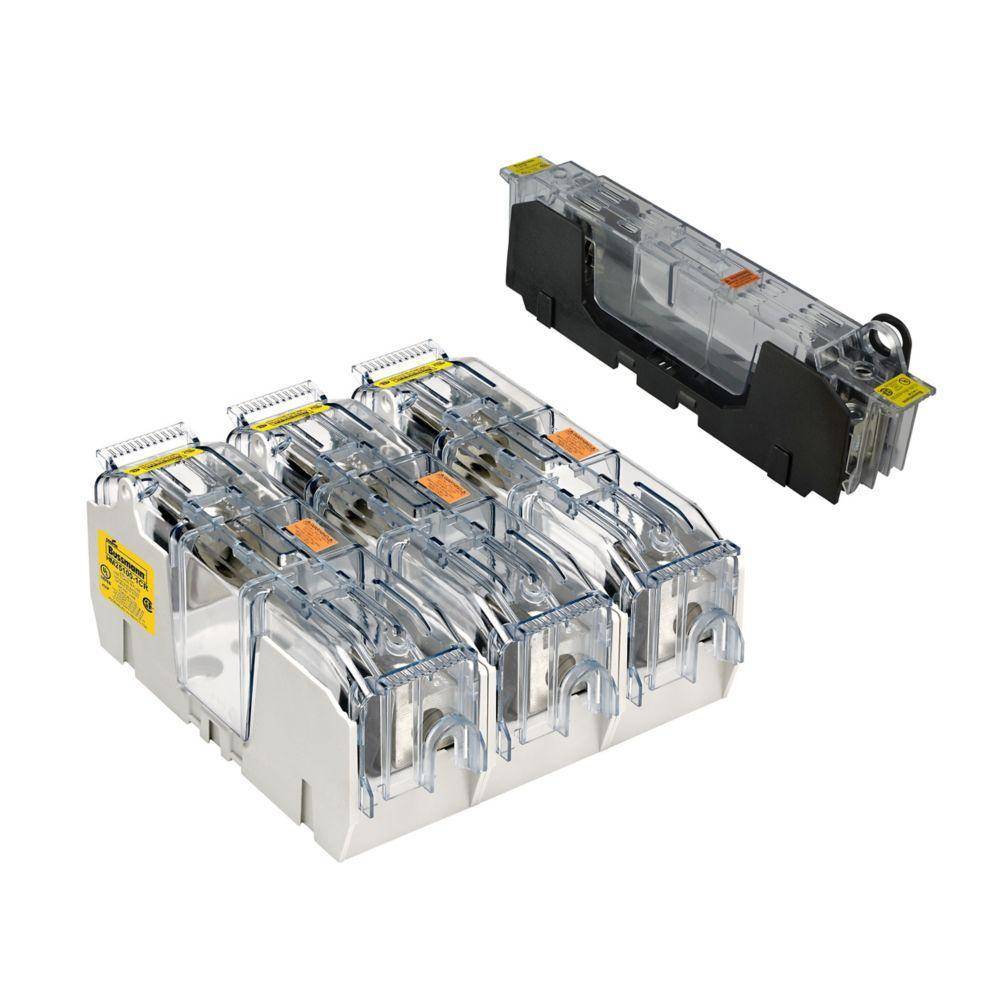

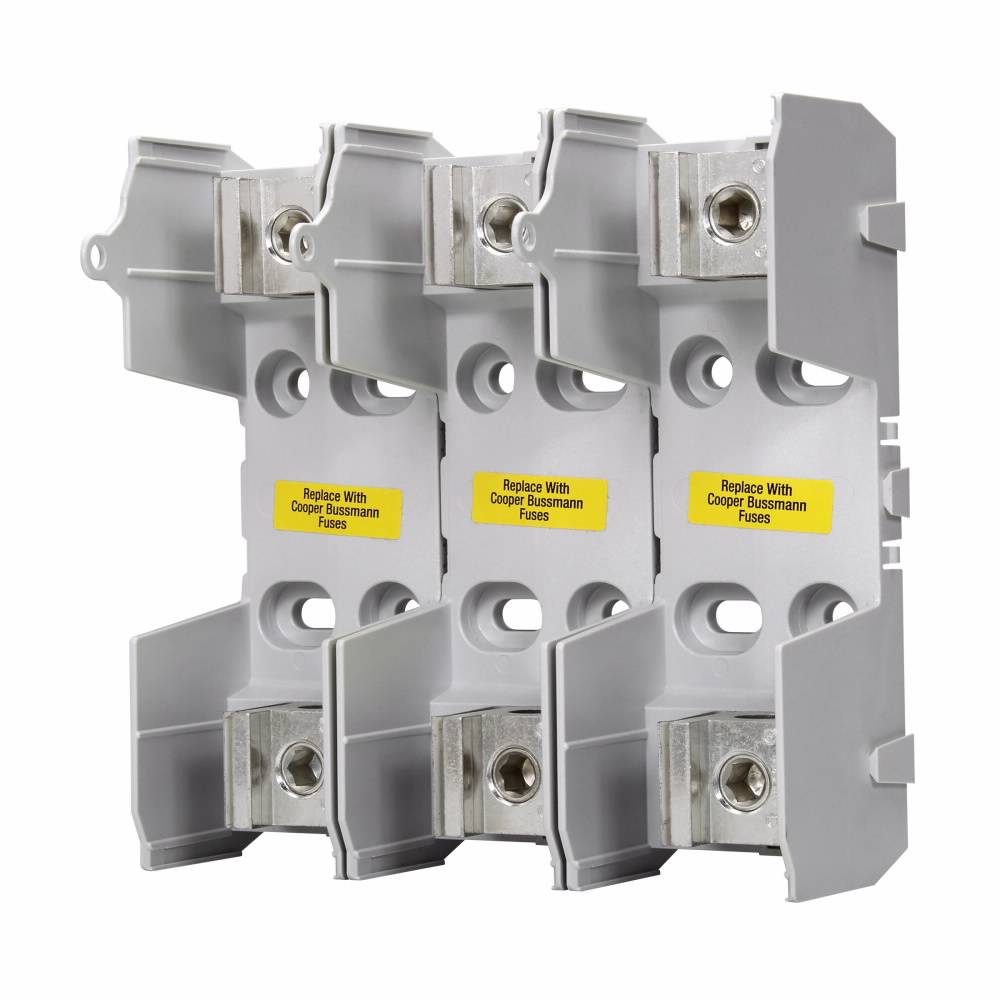

Edison HM25100-1CR HM250 Modular Fuse Block, 250 VAC, 100 A, H Class, 14 to 1/0 AWG Wire, 1 Pole

Short Description

Class H(K) modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class H(K) fuse amp range. All blocks are available as snap together 1-pole versions for tool less assembly of multiple poles at point of use or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Modular, Series: HM250, 250 VAC, 100 A, 1 Poles, Class: H, Fuse Holder Code: L, Box Lug, 14 to 1/0 AWG Wire, Panel Mount, 5.88 in Fuse Length, 1.06/1.16 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Knife Blade Fuse, Thermoplastic, 7.2 in L x 2 in W x 2.8 in H
MFG #: HM25100-1CR

EECO #: BUHM251001CR

Brand: Edison
UPC #: 051712391122
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
14 to 1/0
Application
Any Panel or Electrical System Applications
Mounting Type
Panel
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
HM250
Dimensions
7.2 in L x 2 in W x 2.8 in H
Amperage Rating
100
Suitable For Use With
NON Series Knife Blade Fuse
Features
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Up to four mounting holes per pole increase installation flexibility
  • Standard phase barriers between poles for additional safety
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Blocks dovetail together to assemble required number of poles
  • 1.06 in dia for Fusetron® and Limitron®, 1.16 in dia for Low-Peak® fuses
