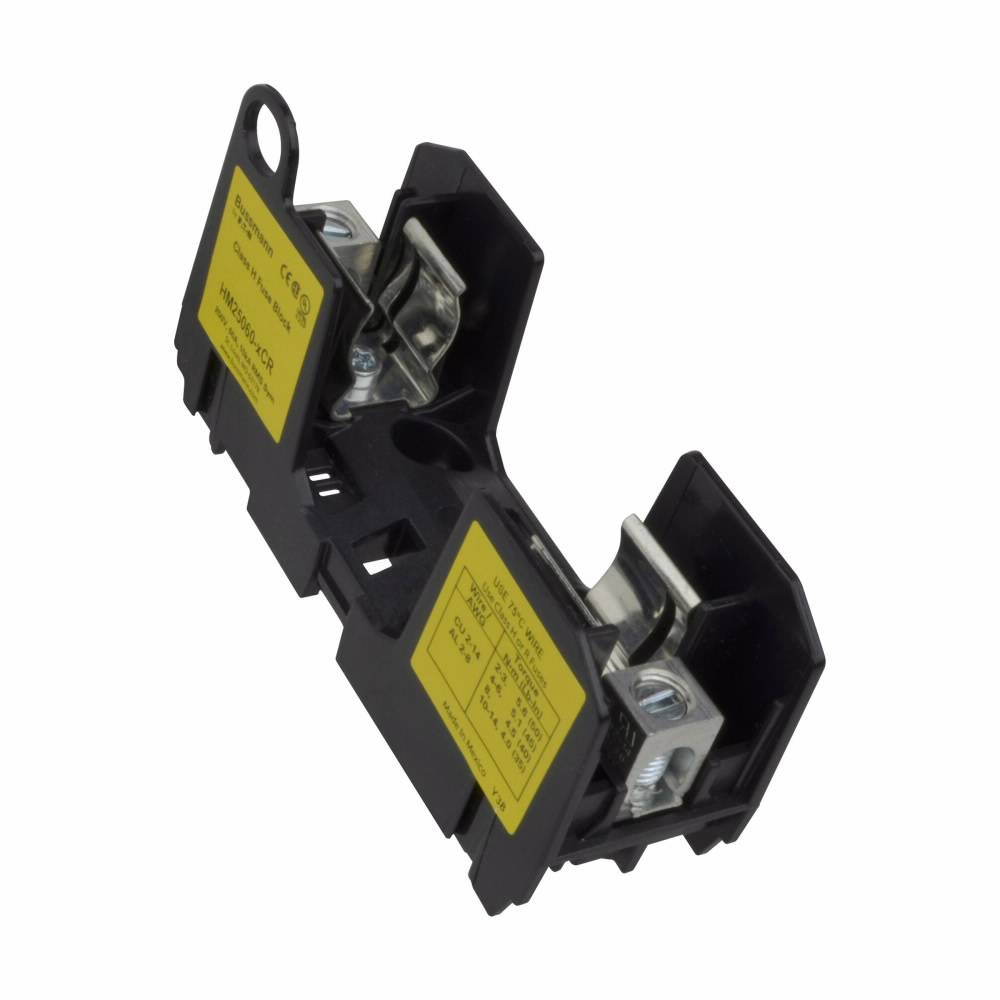

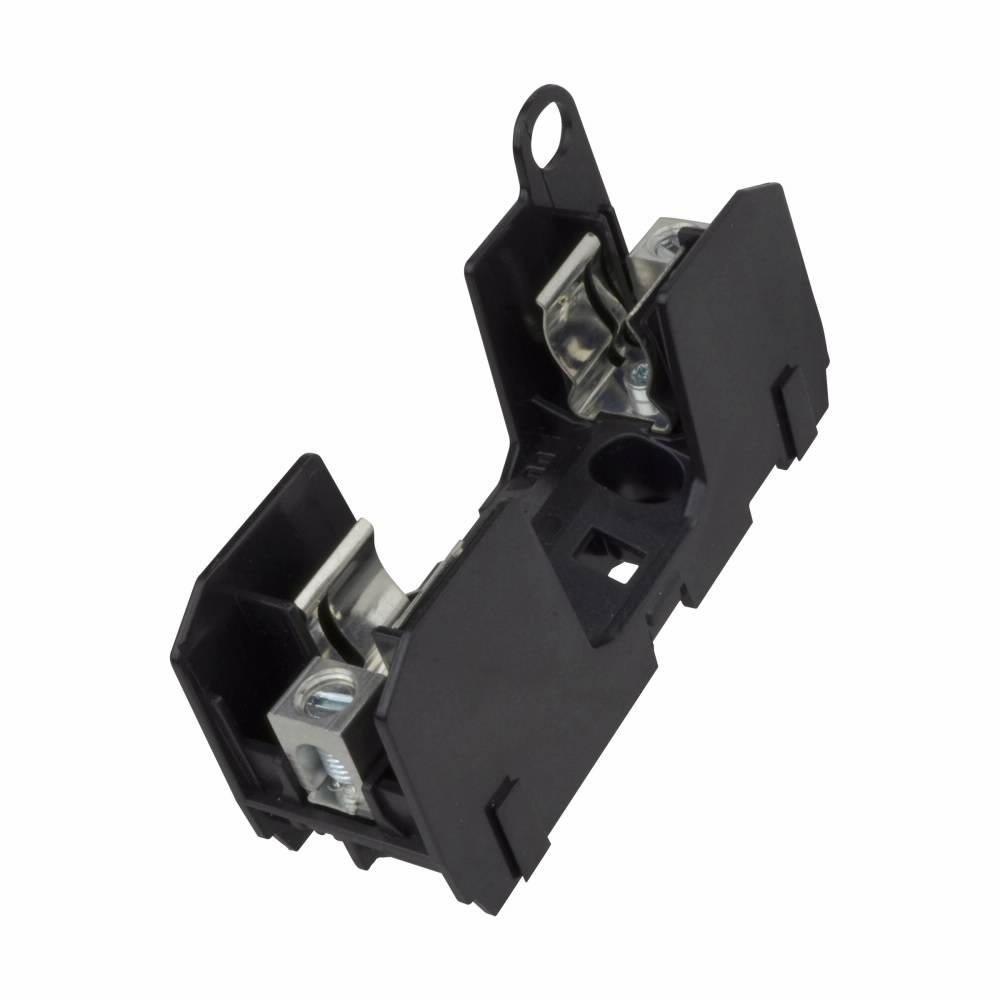

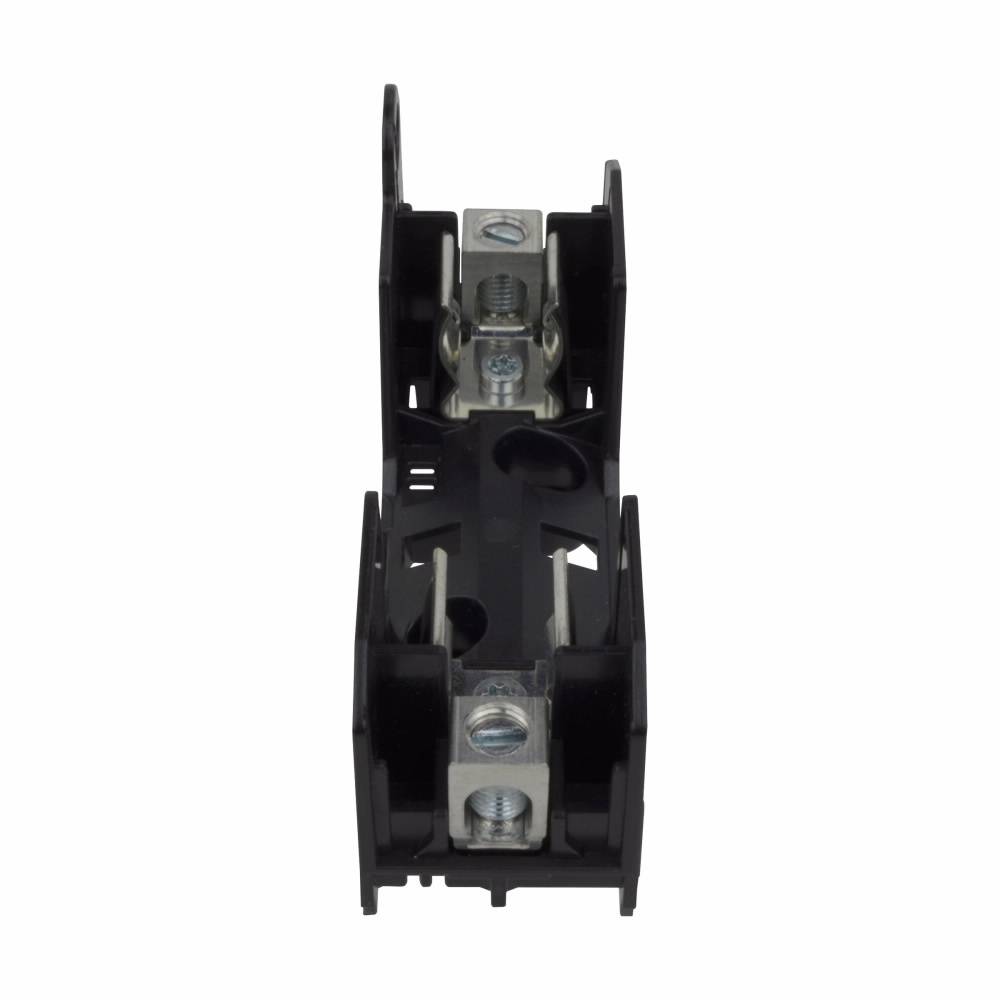

Edison HM25060-1CR Modular Fuse Block, 250 VAC, 60 A, Class: H, 14 to 2 AWG, 8 to 2 AWG Wire, 1 Pole

Short Description

Class H(K) modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class H(K) fuse amp range. All blocks are available as snap together 1-pole versions for tool less assembly of multiple poles at point of use or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.

Edison Fuse Block, Modular, Series: HM250, 250 VAC, 60 A, 1 Pole, Class: H, Fuse Holder Code: K, Box Lug, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 3 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Ferrule Fuse, Thermoplastic, 4.2 in L x 1.4 in W x 2.3 in H
MFG #: HM25060-1CR

EECO #: BUHM250601CR

Brand: Edison
UPC #: 051712511339
Attributes
Features
Documents
Product Information
Attributes
Class
H
UNSPSC
39121629
Material
Thermoplastic
Wire Size
14 to 2 AWG, 8 to 2 AWG
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Voltage Rating
250
Connection Type
Box Lug
Temperature Rating
-40 to 120
Type
Modular
Series
HM250
Dimensions
4.2 in L x 1.4 in W x 2.3 in H
Amperage Rating
60
Suitable For Use With
NON Series Ferrule Fuse
Features
  • To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for tool less assembly of multiple poles at point of use
  • DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
  • Save panel space with the smallest width dimension on the market
  • Easy circuit identification with available universal marker labels for blocks and covers
  • 14 to 2 AWG copper, 8 to 2 AWG aluminum wire
