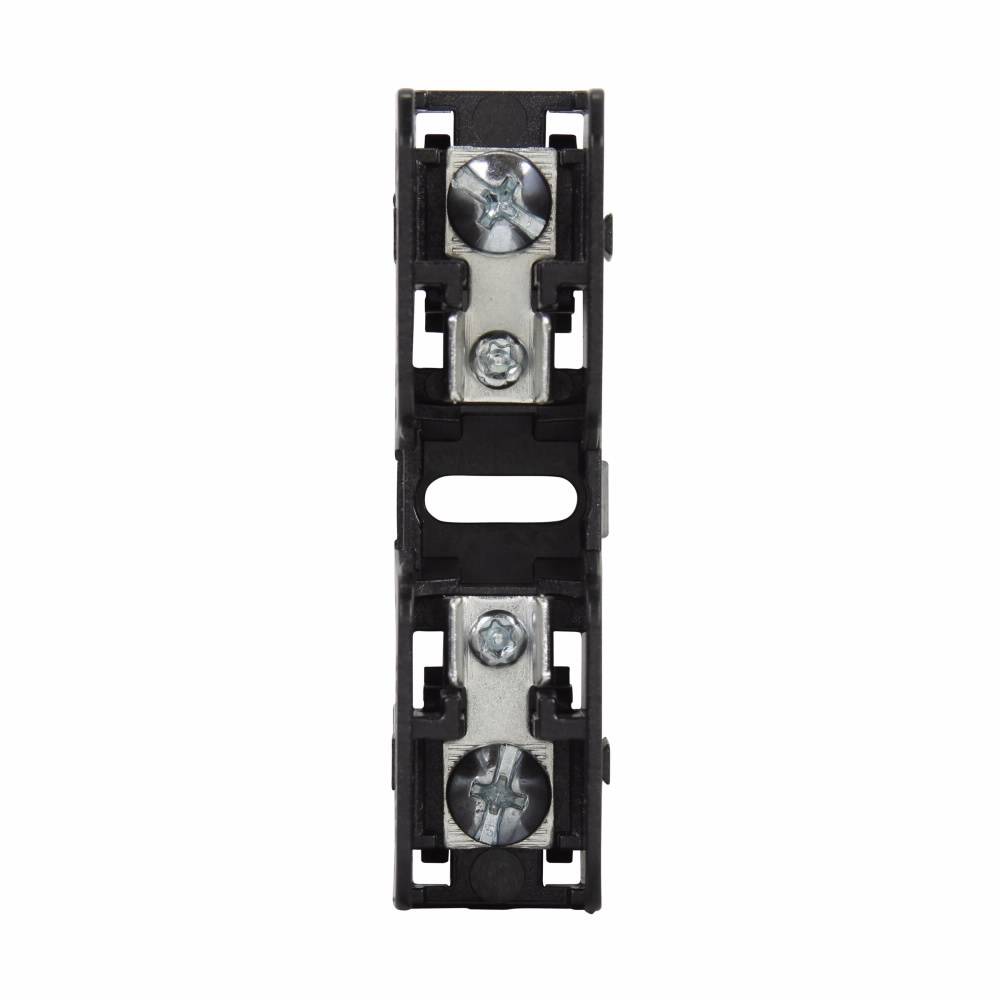

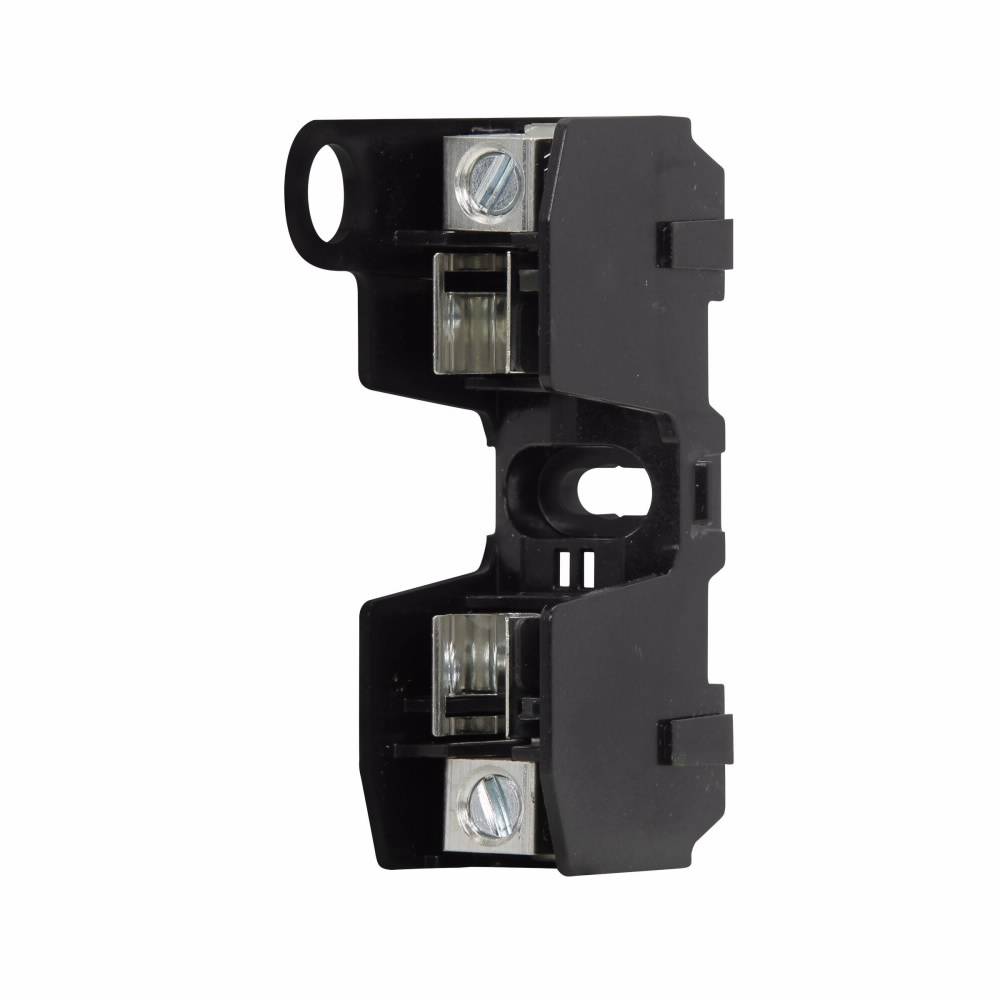

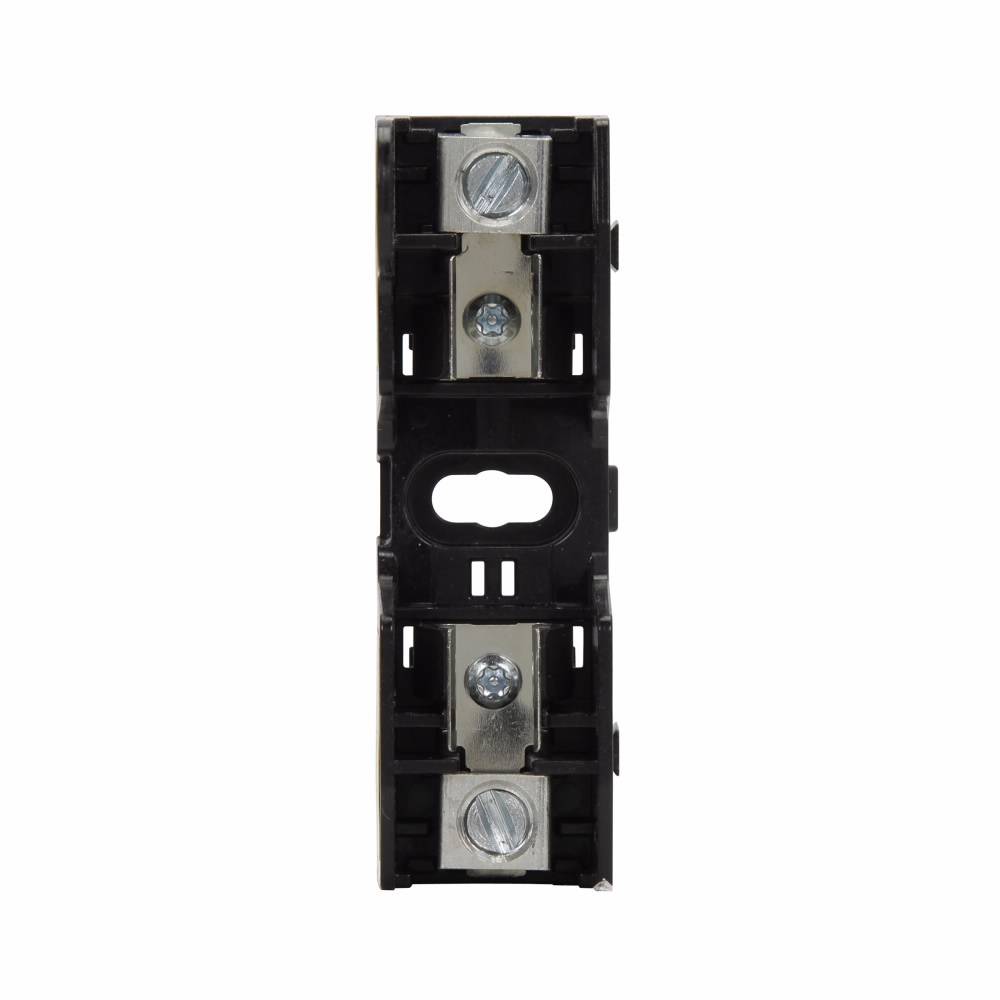

PrintEATON Edison HM25030-1CR Modular Fuse Block, 250 VAC, 30 A, Class: H, 14 to 2 AWG, 8 to 2 AWG Wire, 1 Pole
Class H(K) modular fuse blocks enhance safety for any panel or electrical system design and are available for the full class H(K) fuse amp range. All blocks are available as snap together 1-pole versions for toolless assembly of multiple poles at point of use or as factory configured 2 and 3-pole versions to meet stocking requirements. All blocks are equipped with a fuse clip reinforcing spring to minimize temperature rise while maintaining reliable surface contact between the fuse and clip over the block's service life.
EATON Edison Fuse Block, Modular, Series: HM250, 250 VAC, 30 A, 1 Pole, Class: H, Fuse Holder Code: H, Box Lug Connection, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mounting, 2 in Fuse Length, 0.56 in Diameter Fuse, -40 to 120 deg C, For Use With: NON Series Ferrule Fuse, Thermoplastic, 3.2 in L x 1 in W x 2 in H Dimensions
EECO #: BUHM250301CR
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $15.49 |
|
Slqt |
|
| 1 | $185.88 |
|
Stpk |
|
| 1 | $185.88 |
|
Unit |
|
| 1 | $185.88 |
