Eaton

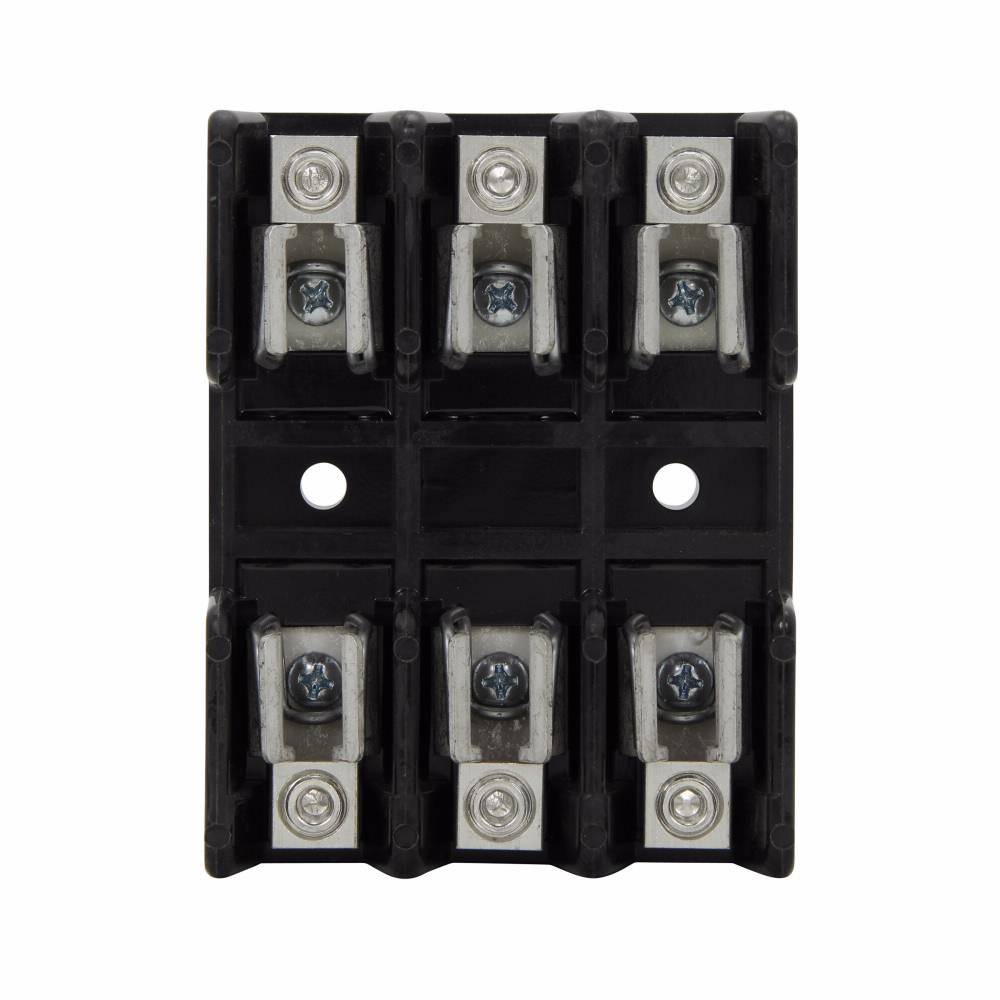

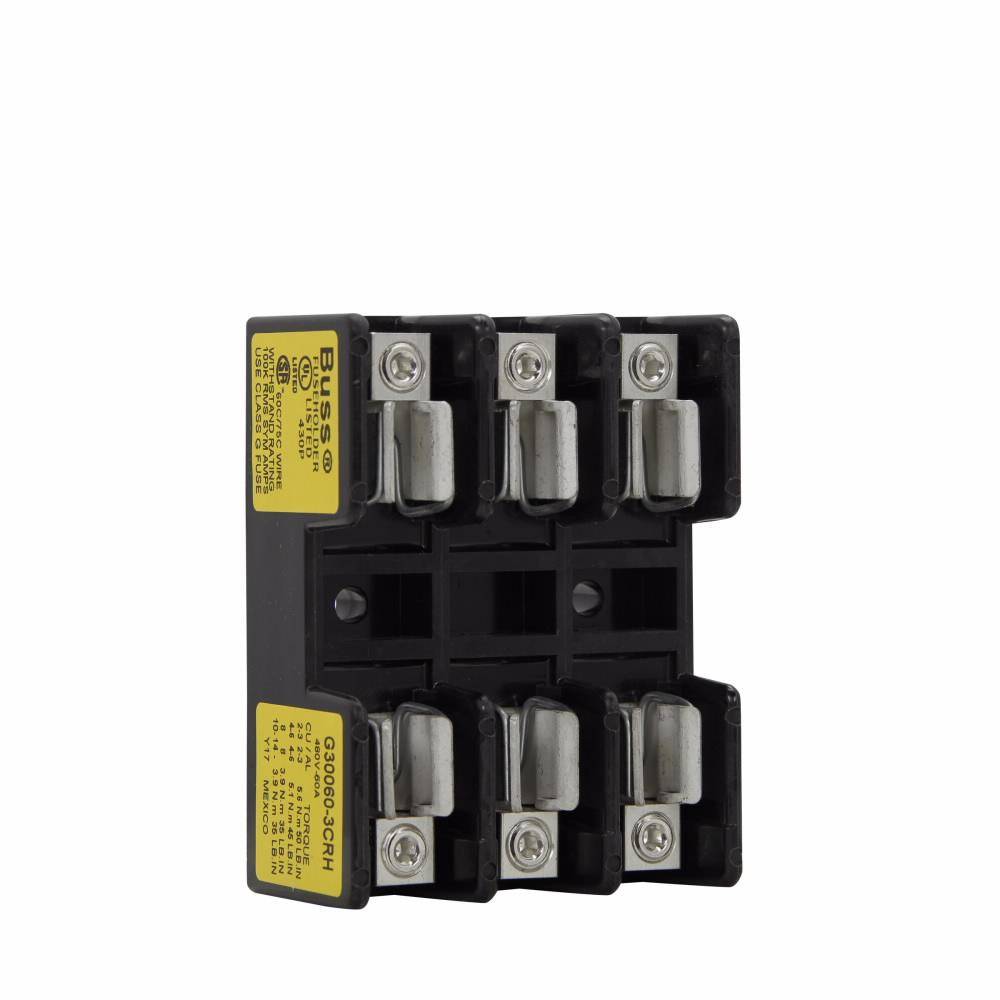

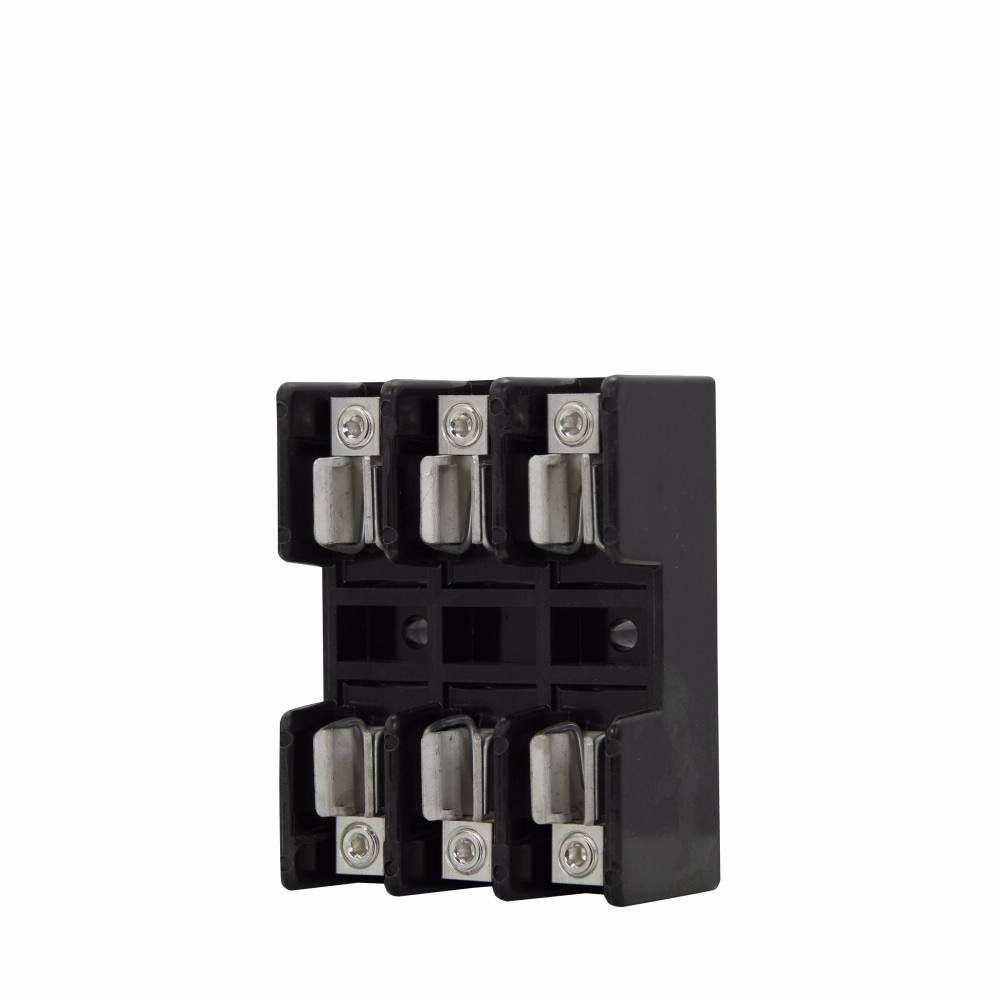

Bussmann G30060-3CRH Open Fuse Block, 480 V, 35 to 60 A, Class: G, 14 to 2 AWG Cu, 8 to 2 AWG Aluminum Wire, 3 Poles

Short Description

Eaton's Bussmann series fuse blocks for us with Class G fuses. These Bussmann series fuse blocks are offered in phenolic and thermoplastic with options for DIN rail adapters as well as an inline holder option

Bussmann Fuse Block, Open, 480 V, 35 to 60 A, 3 Pole, Class: G, Box Lug with Retaining Clip, 14 to 2 AWG Cu, 8 to 2 AWG Aluminum Wire, DIN Rail Mount, For Use With: SC Fuse, Phenolic, Black, 3.56 in L x 2.75 in W x 1.41 in H
MFG #: G30060-3CRH

EECO #: BUG300603CRH

Brand: Bussmann
UPC #: 051712717281
Attributes
Features
Documents
Product Information
Attributes
Class
G
Color
Black
UNSPSC
39121624
Material
Phenolic
Wire Size
14 to 2 AWG Cu, 8 to 2 AWG Aluminum
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail
Voltage Rating
480
Connection Type
Box Lug with Retaining Clip
Type
Open
Series
G Series
Dimensions
3.56 in L x 2.75 in W x 1.41 in H
Amperage Rating
35 to 60
Suitable For Use With
SC Fuse
Features
  • Voltage Rating: 480 V
  • Current Rating: 35 to 60 A
  • Class: G Fuse
  • Wire Compatibility: 14 to 2 AWG Copper, 8 to 2 AWG Aluminum
  • Configuration: 3 Poles
  • Mounting Type: DIN Rail Mount
  • Material: Phenolic, Black
  • Dimensions: 3.56 in L x 2.75 in W x 1.41 in H
  • Includes: Box Lug with Retaining Clip
  • Designed for use with: SC Fuse
