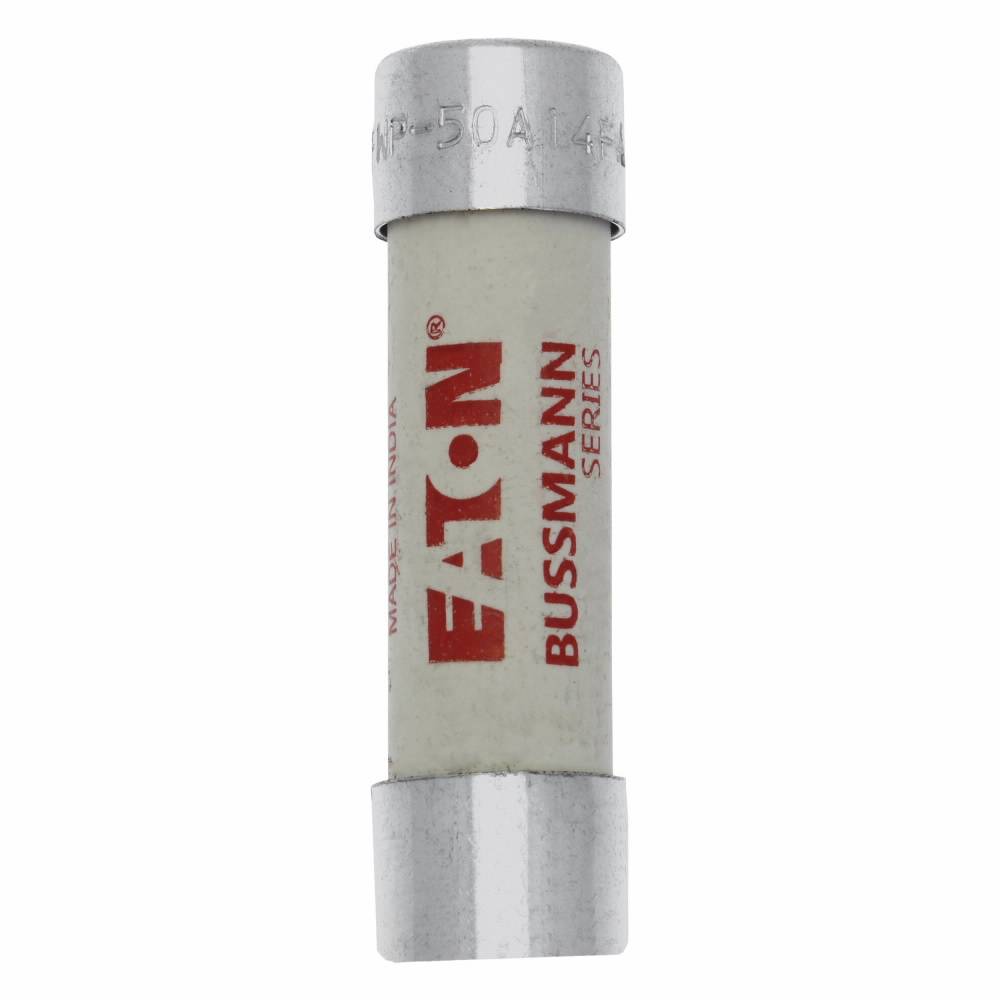

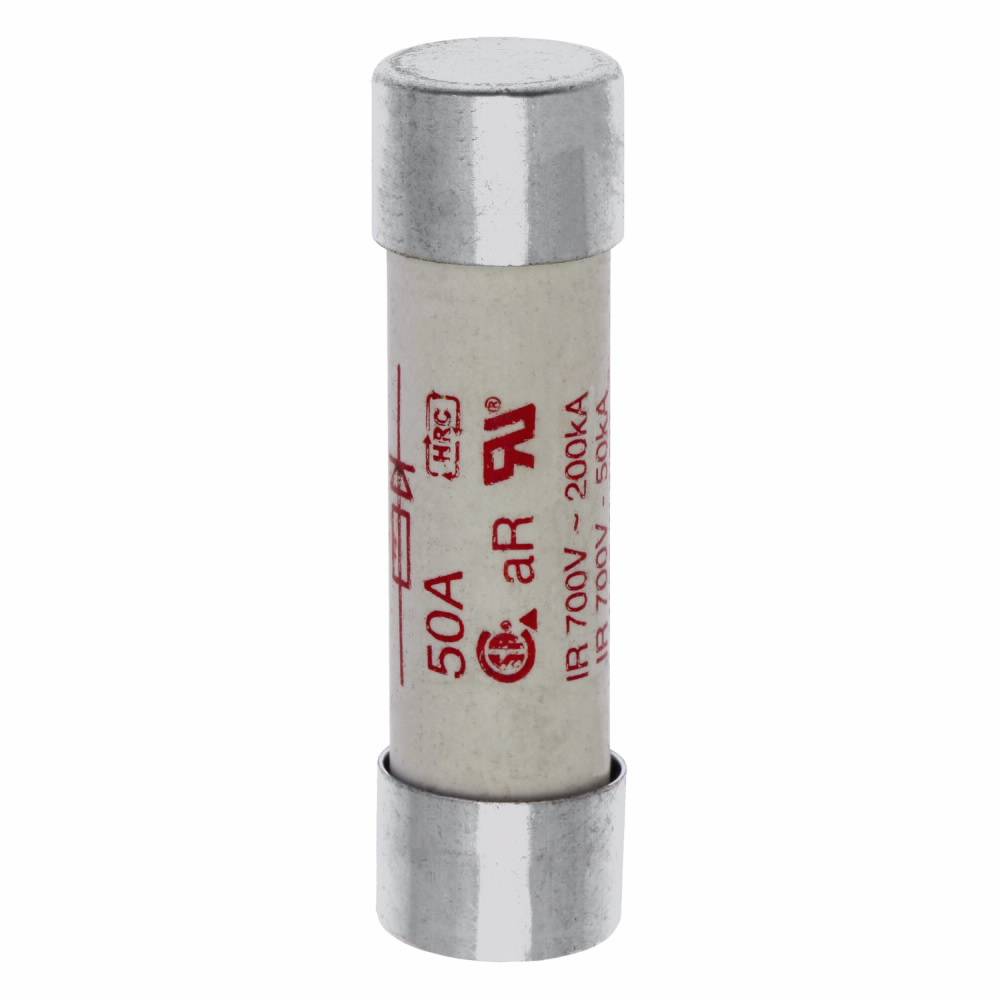

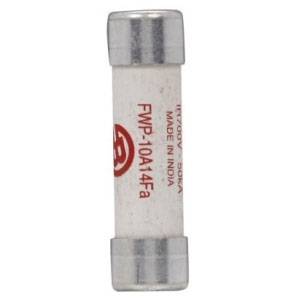

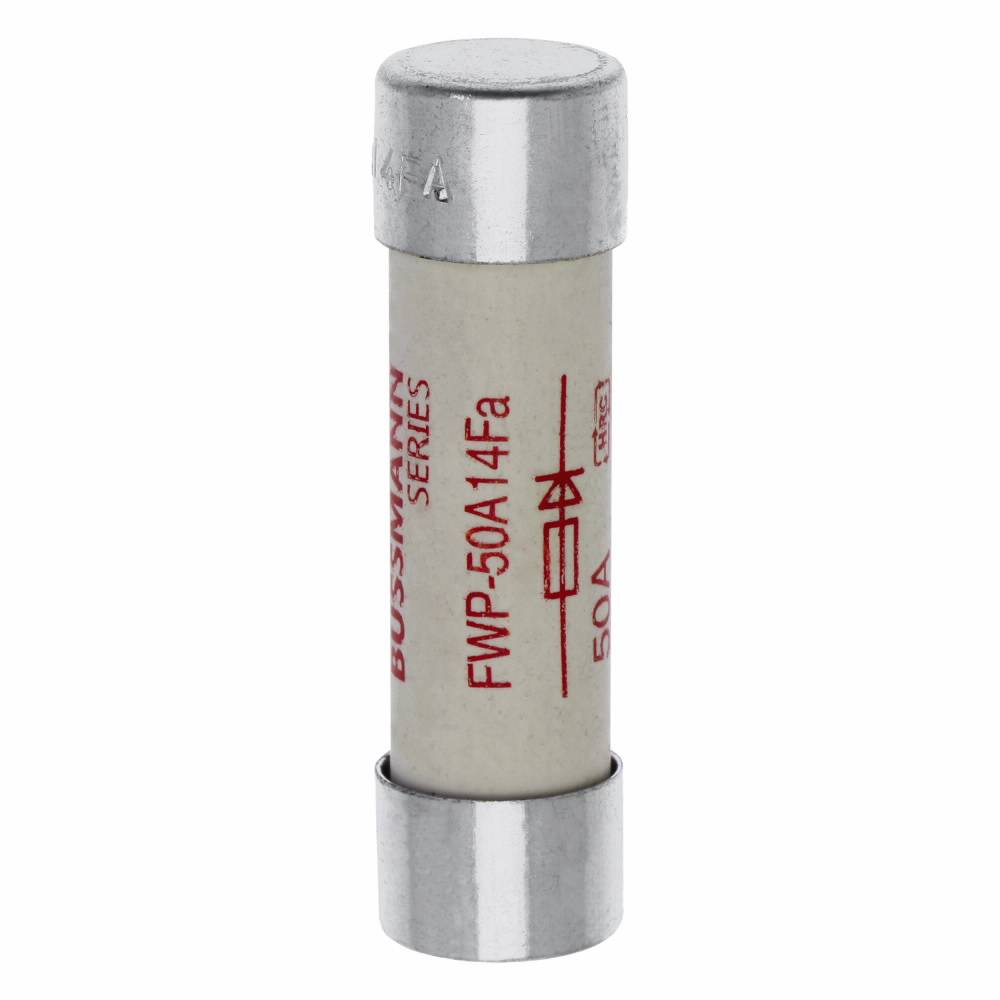

Edison FWP-50A14F Fast Acting High Speed Fuse, 50 A, 690/700 VAC, 800 VDC, 50/200 kA, Cylindrical Body

Short Description

9/16" x 2", 700 VAC, 600 VDC, 50 A, 200 kA Symmetrical/50 kA DC, Ferrule Terminal, Non-Indicating, Class aR, High Speed Fuse

Edison High Speed Fuse, Fast Acting, Series: FWP, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 50 A, 690/700 VAC, 800 VDC, 50/200 kA Interrupt, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Fiberglass, 0.563 in Dia x 2 in L Body Size

MFG #: FWP-50A14F

EECO #: BUFWP50A14F

Brand: Edison
UPC #: 051712370868
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Approval
UL, CSA, CE
Material
Fiberglass
Application
DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications
Mounting Type
Holder
Terminal Type
Ferrule
Current Rating
50 Amp
Voltage Rating
690/700 VAC, 800 VDC
Characteristics
High Speed, Non-Indicating
Frequency Rating
45 to 1000
Interrupting Rating
200 Kiloamp (Symmetrical), 50 Kiloamp (800 Volt DC)
Type
Fast Acting
Series
FWP
Diameter
9/16 Inch
Amperage Rating
50
Features
  • Excellent cycling capability and DC performance
  • Low arc voltage and low energy let through
  • Low watts loss in a compact size
  • Used with finger safe holders/blocks
  • Superior cycling capability
Eaton_Bussmann_00093_4_28_CAT
Bussmann_170M5510_Catalog_1
Qty Unit price
Ea
1 $50.19

Slqt
1 $50.19

Stpk
1 $501.90

Unit
1 $50.19
